Palo Alto Captive Portal

Palo Alto Captive Portal is a web-based authentication method that forces unauthenticated users to log in before gaining network access. When a user initiates traffic, the firewall intercepts it and redirects the user to a login page, where credentials are validated against an authentication source (like LDAP or local DB).

Configuring Captive Portal

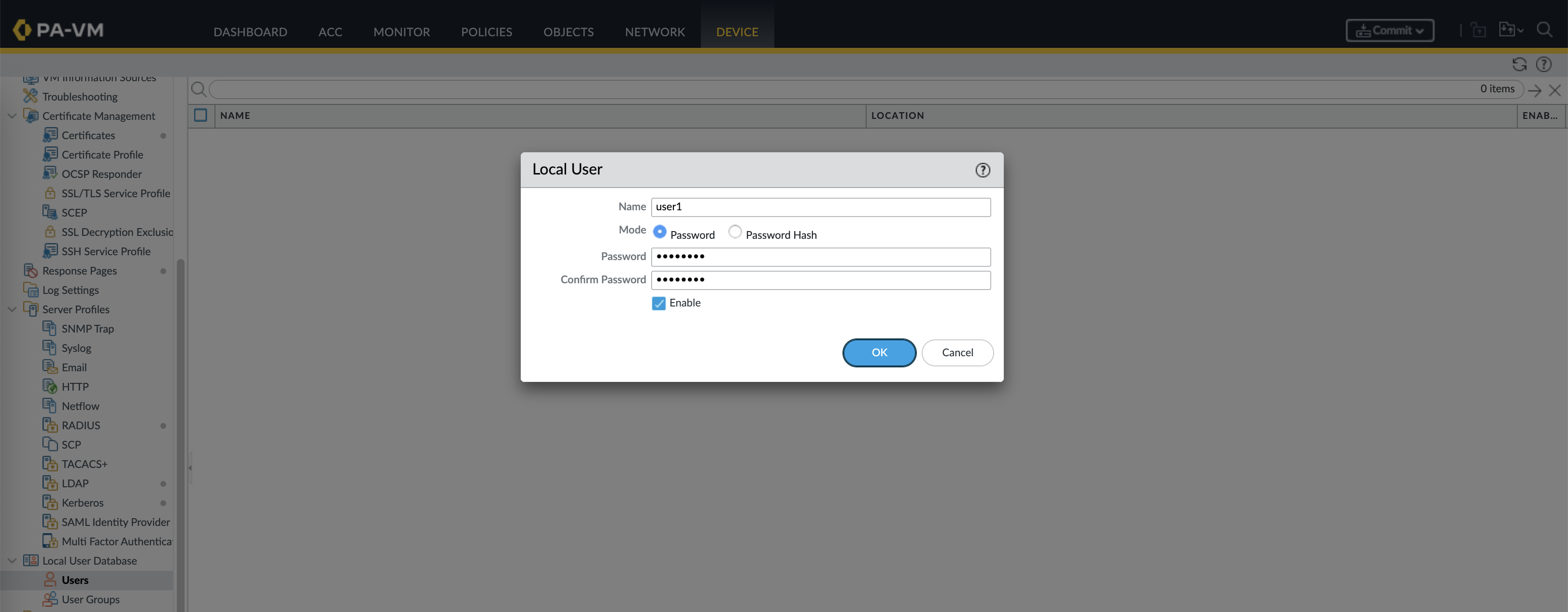

First we’ll setup a portal that authenticate using local users, here we create a new user for that

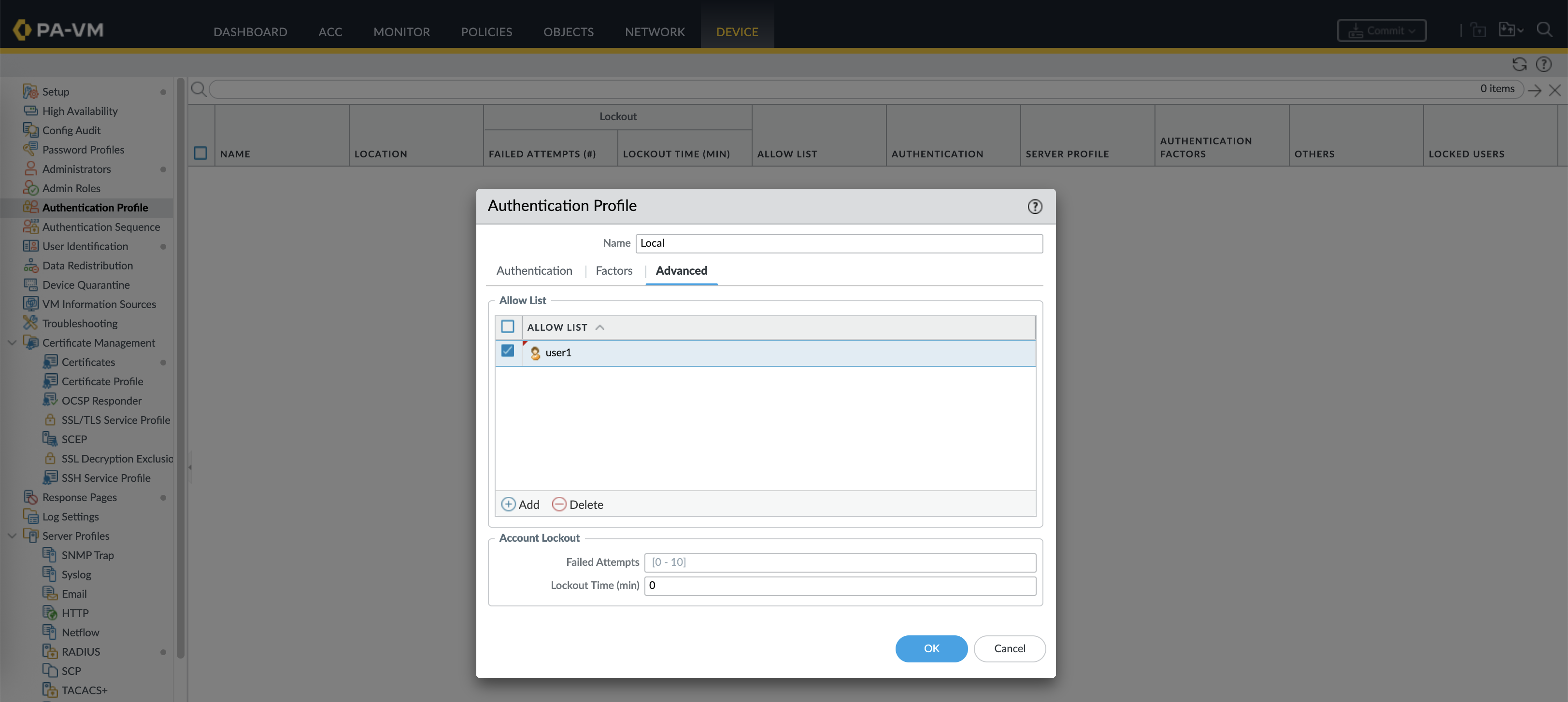

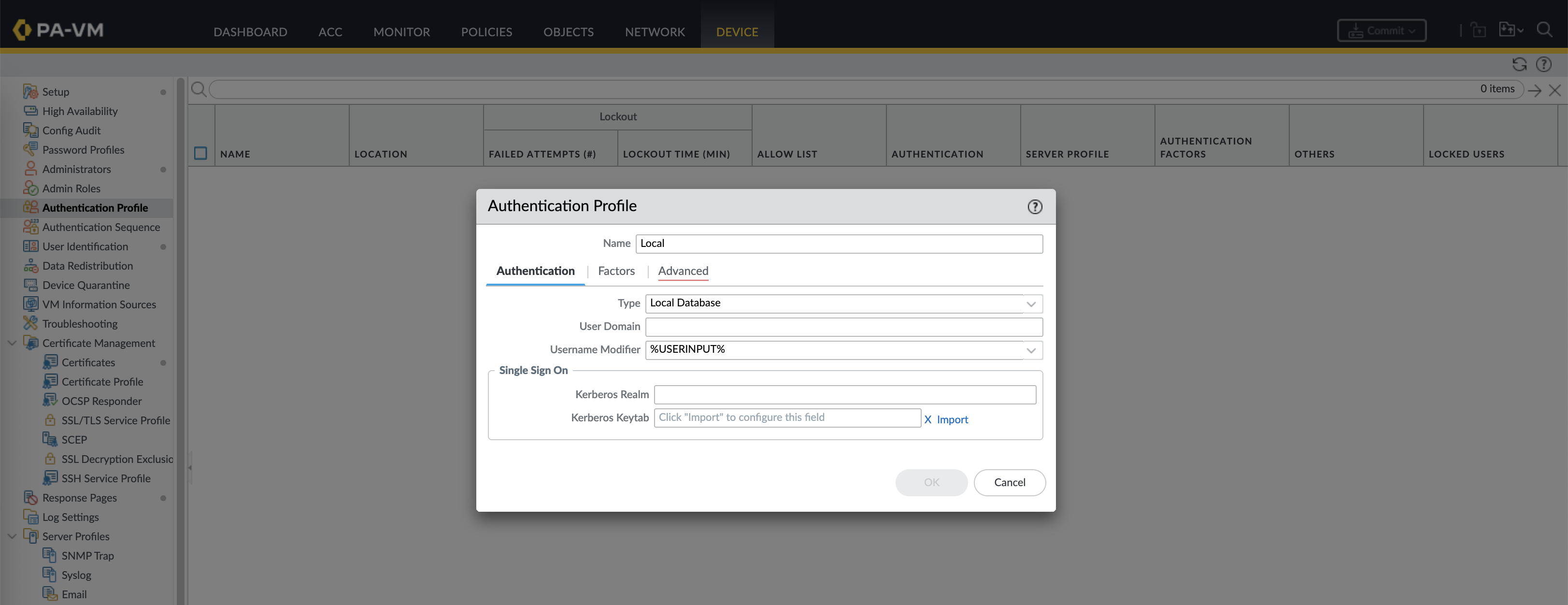

Next create a new Authentication Profile for Local Database that allows User1 to authenticate

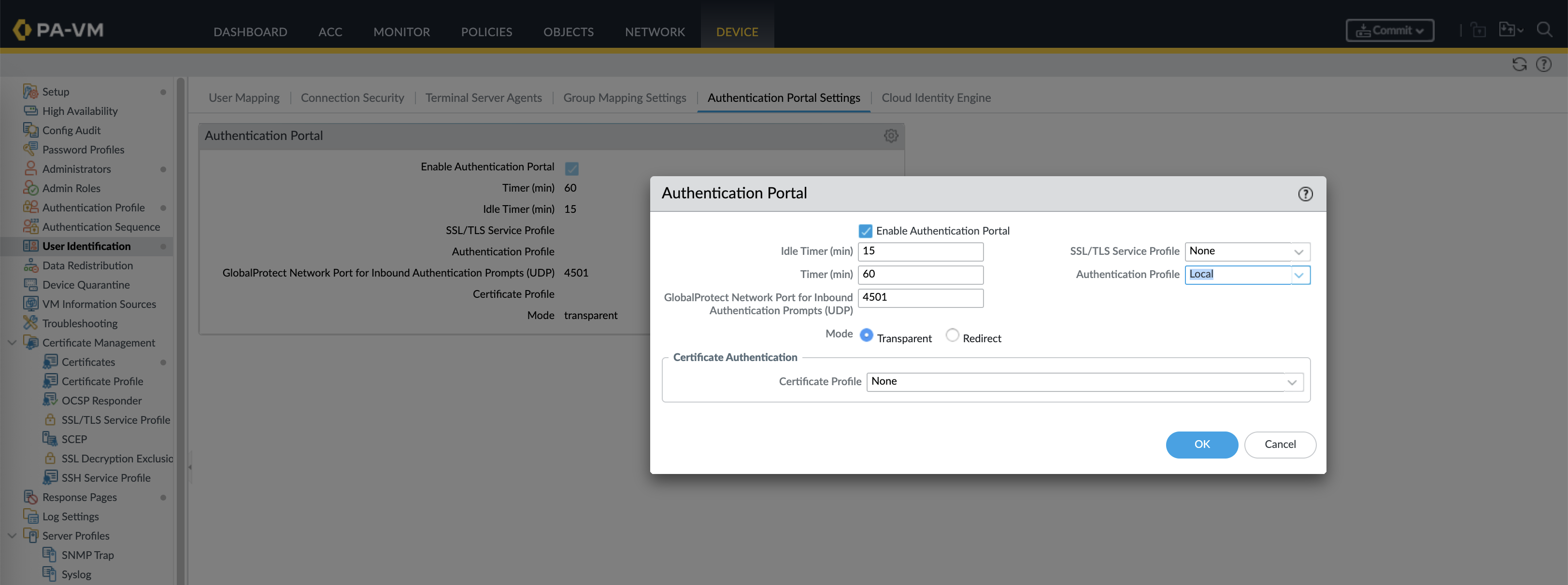

Then configure the Authentication Portal to use the Local Auth Profile

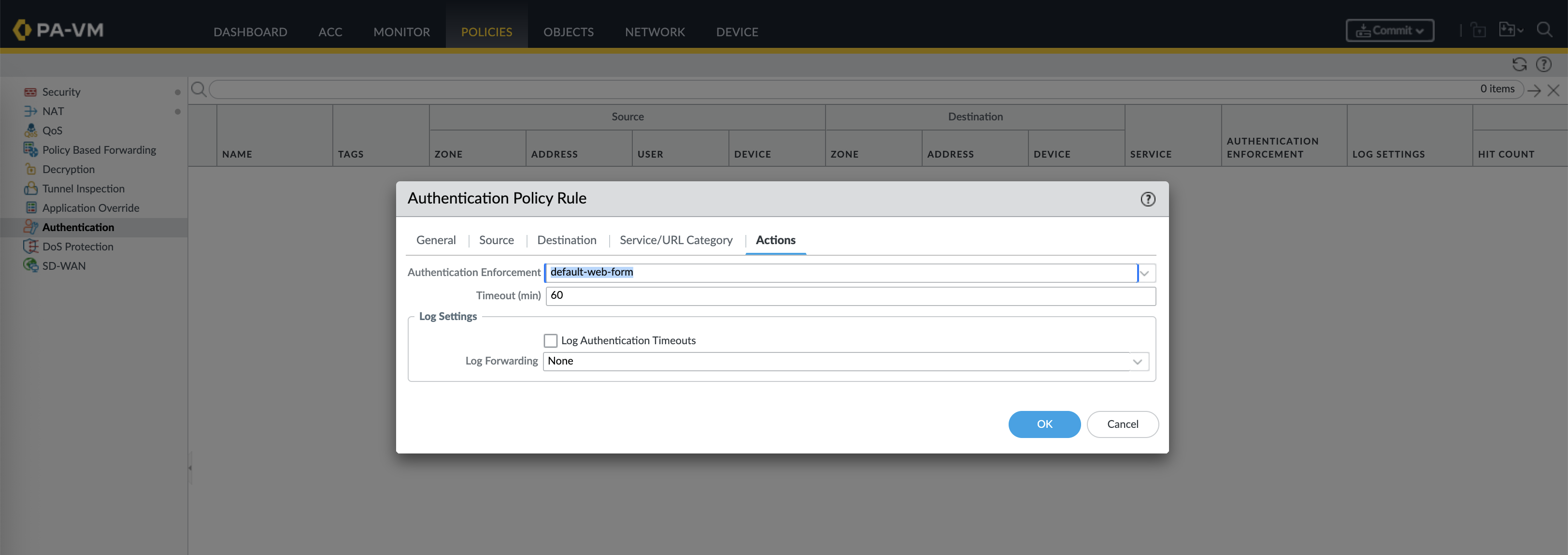

After that, create a new Authentication Policy Rule to enforce authentication though default web form

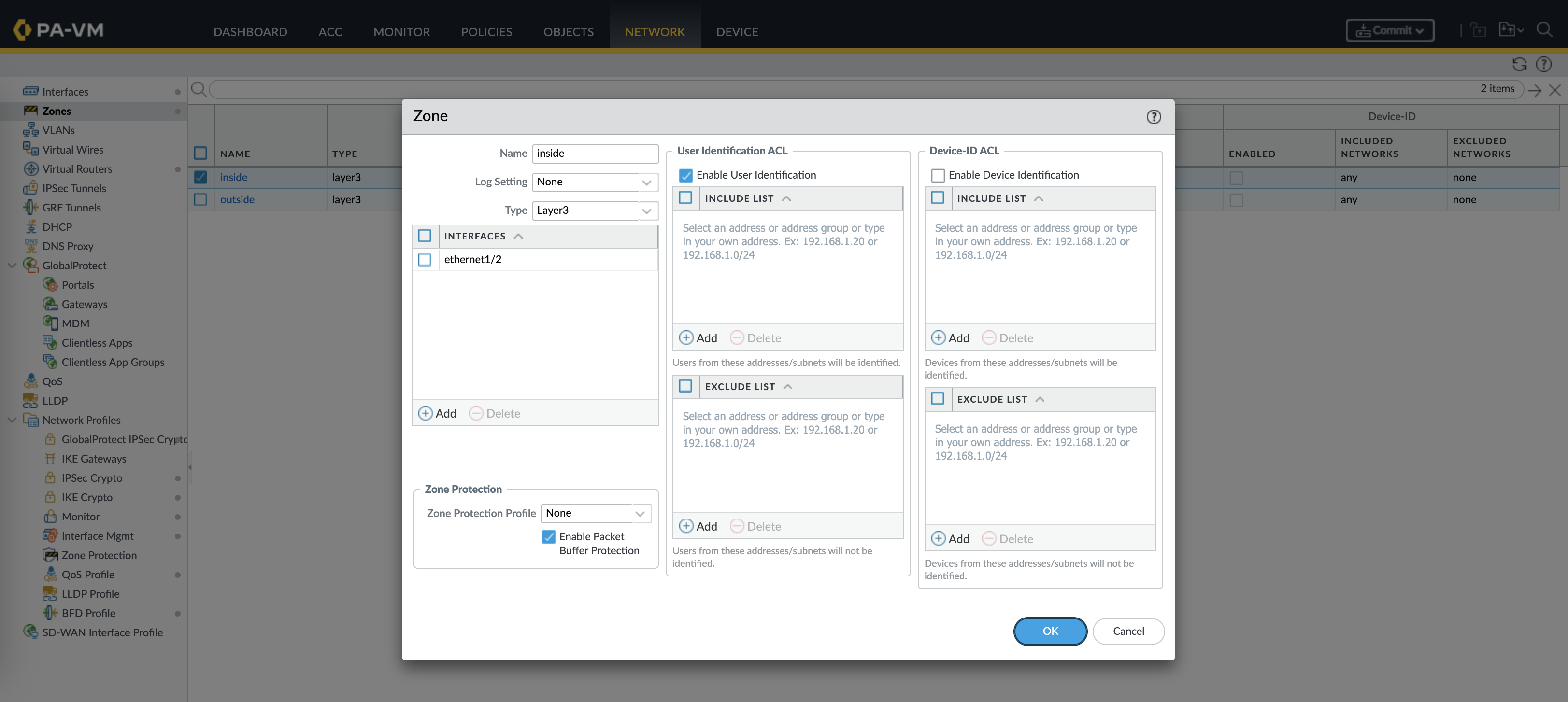

And lastly, on the Inside Zone enable User Identification

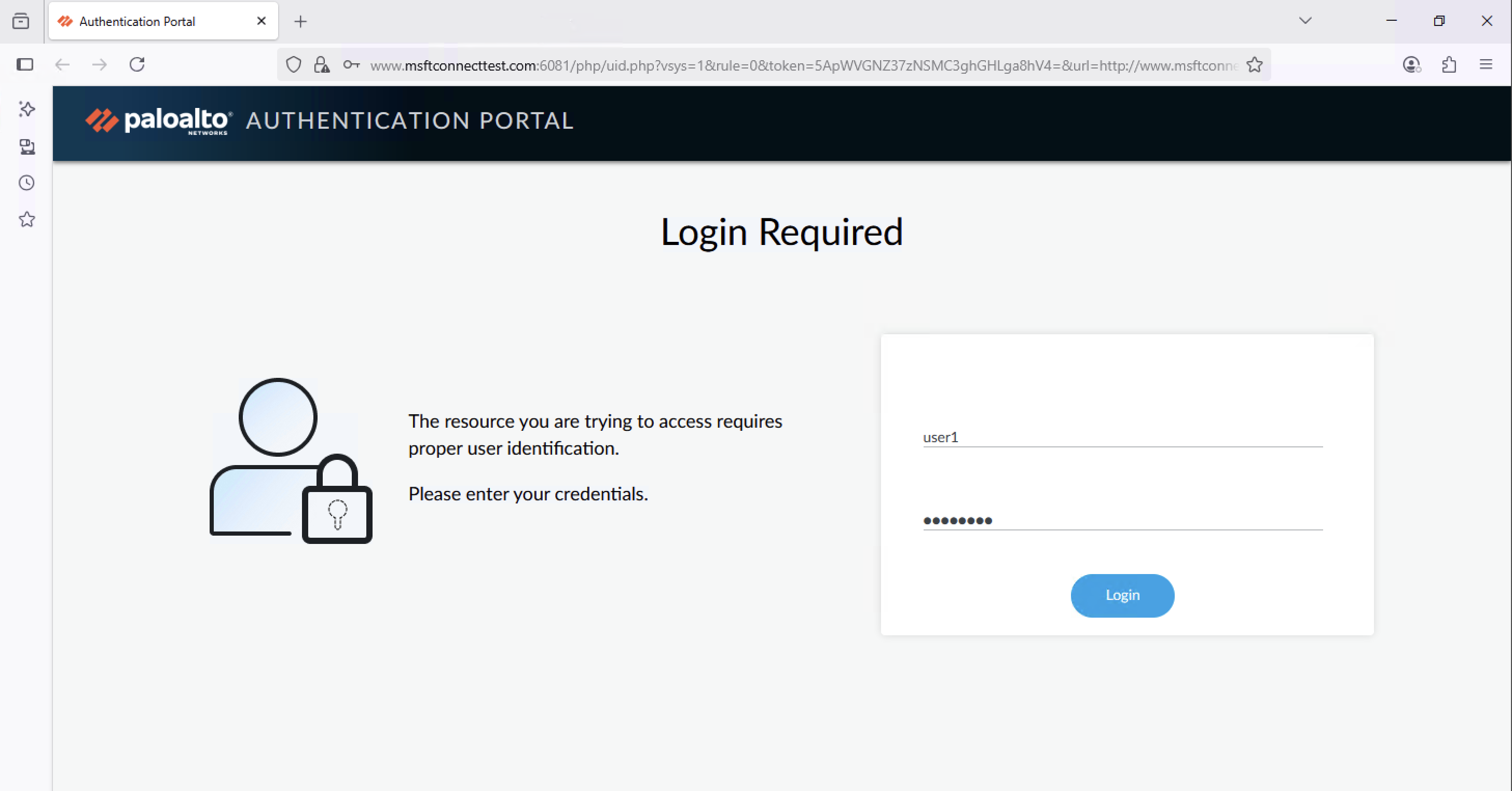

Now on the client side, on the first time connecting to the internet they’ll be redirected to login on the portal using local users

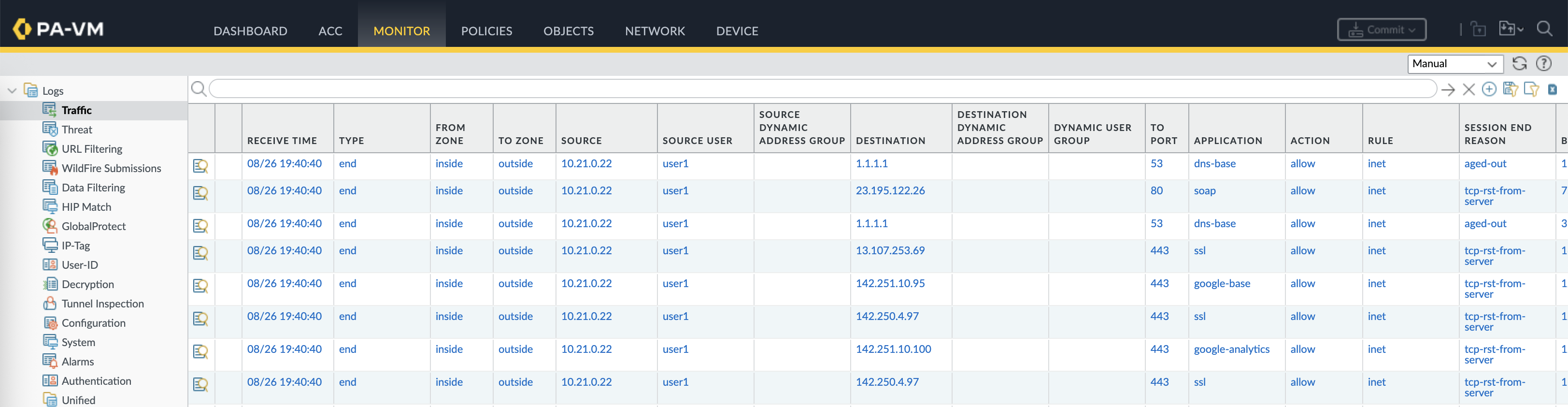

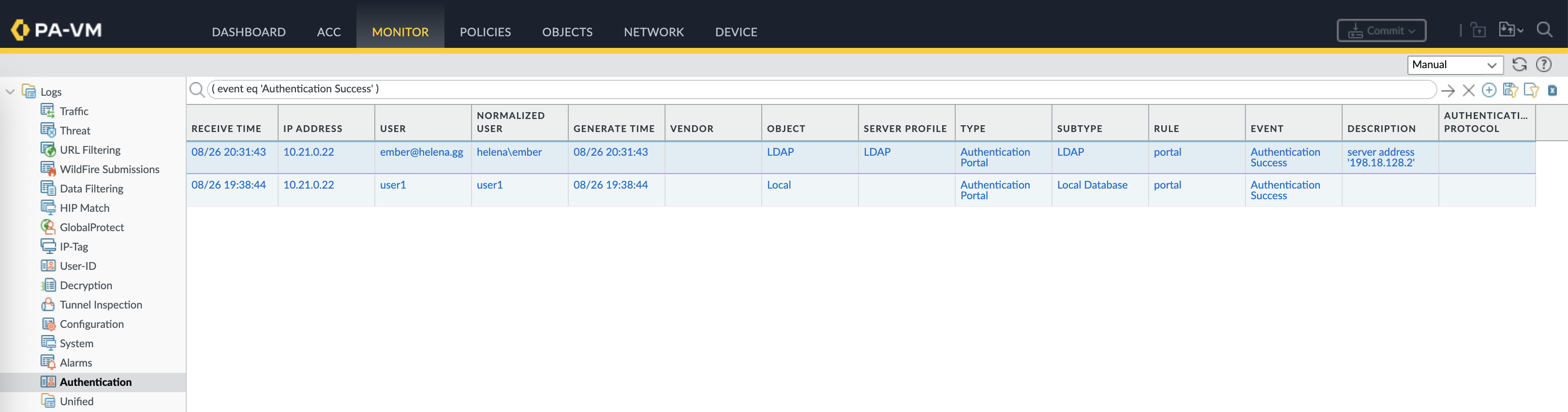

Logs on the firewall side verify that the authentication is working

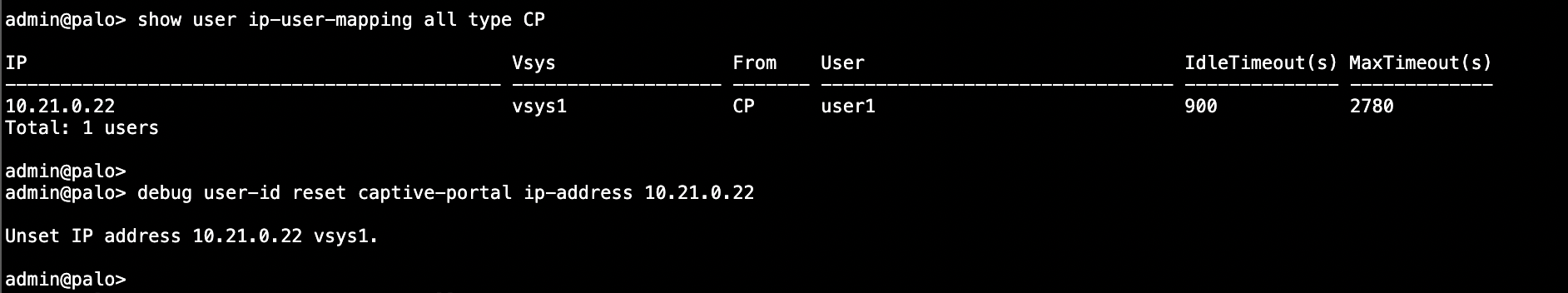

We can run ‘show user ip-user-mapping all’ to see the mapped users

And running ‘debug user-id reset captive-portal ip-address’ allows us to deautheticate specific user

Configuring LDAP

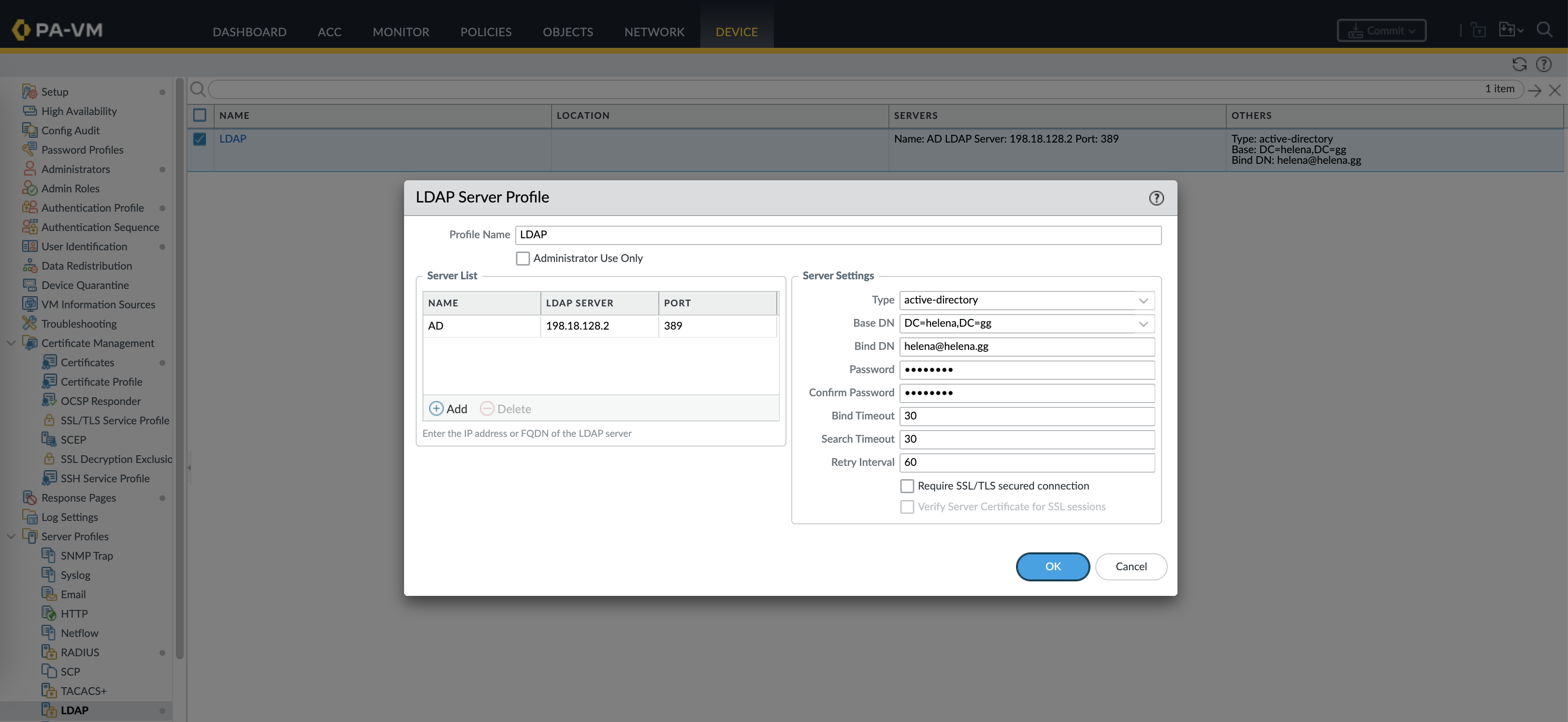

To allow clients to use LDAP Users on the portal, first we create or use existing LDAP Server Profile

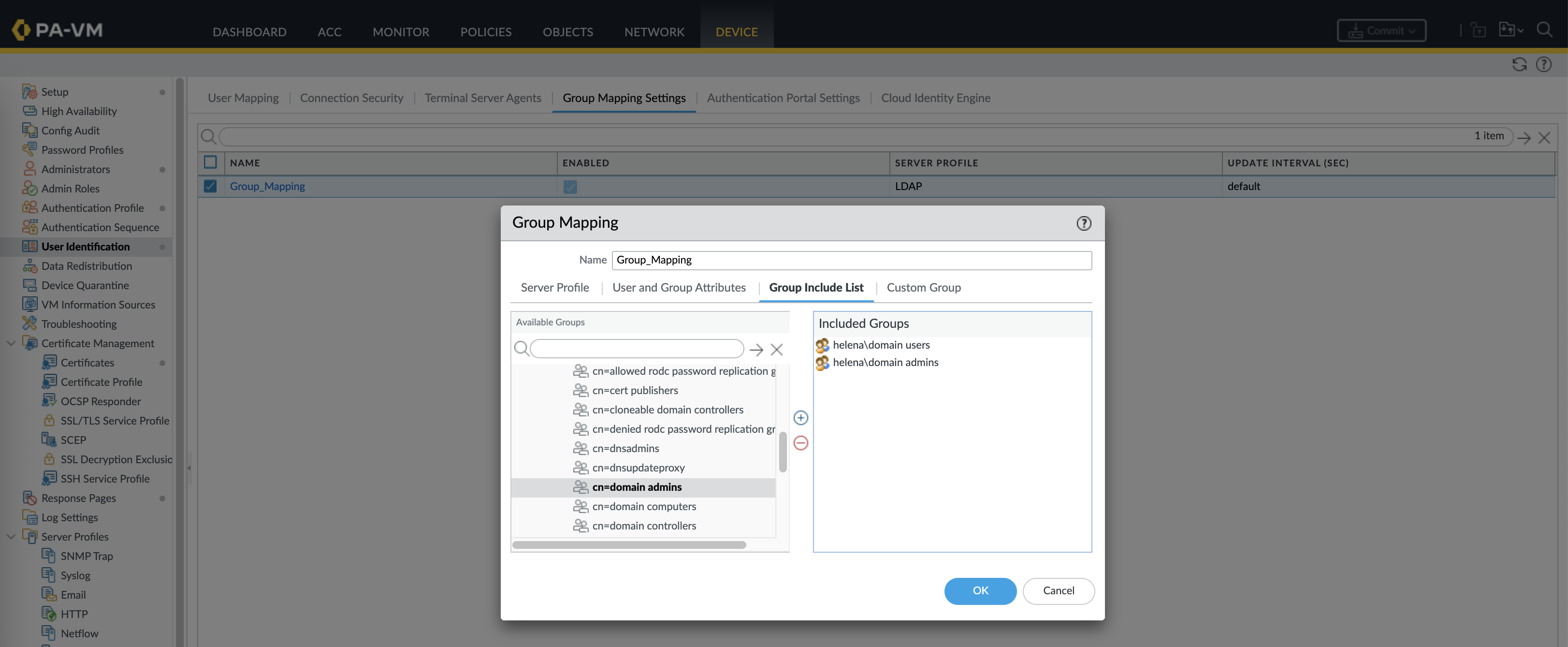

And then use the Group Mapping to import groups that we’d like to allow to authenticate on the portal

Then create a new Authentication Profile for LDAP Users

Login Attribute field defines which LDAP attribute the firewall will use to match a username entered during login, userPrincipalName (UPN) is the Active Directory logon name in the format user@domain.com

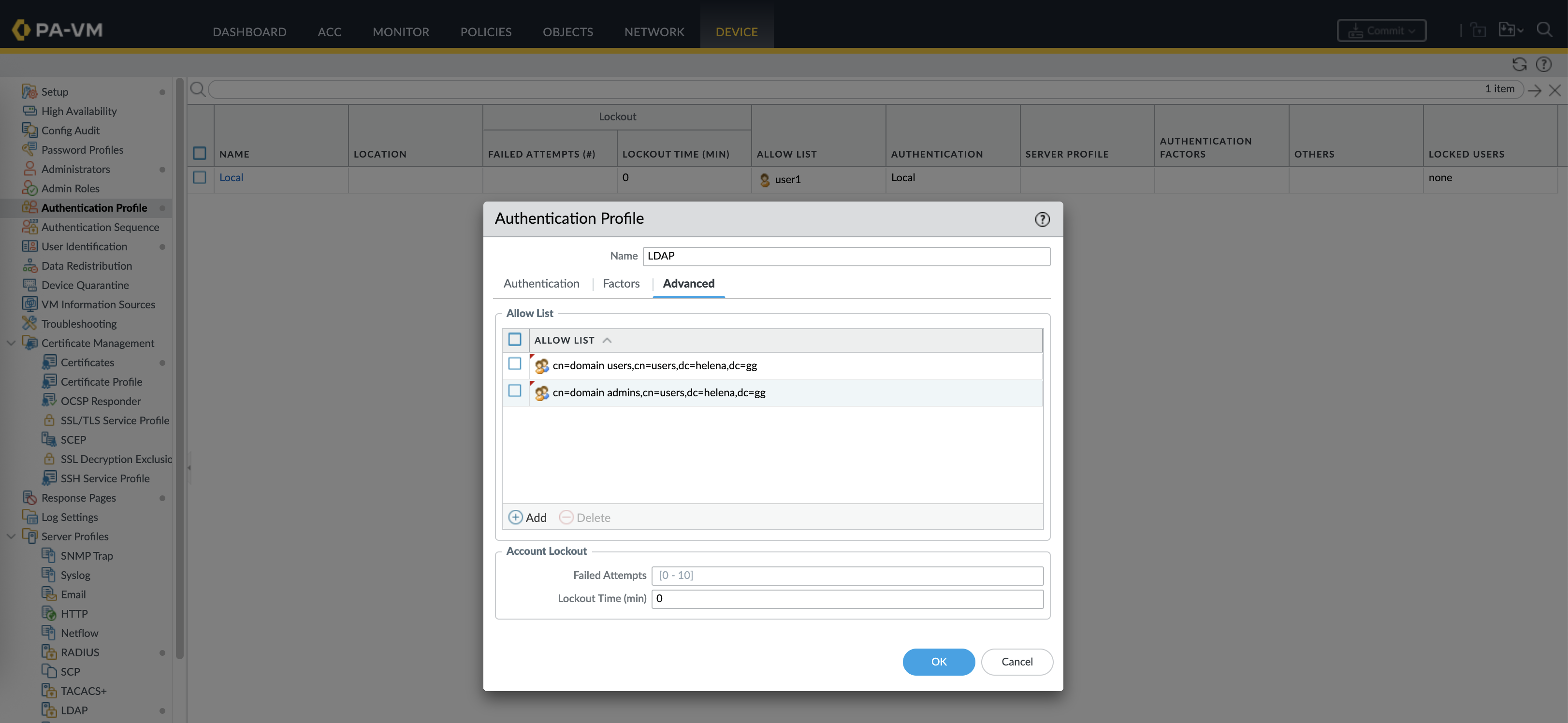

Then we define which AD Groups are allowed to login based on the ones we imported earlier

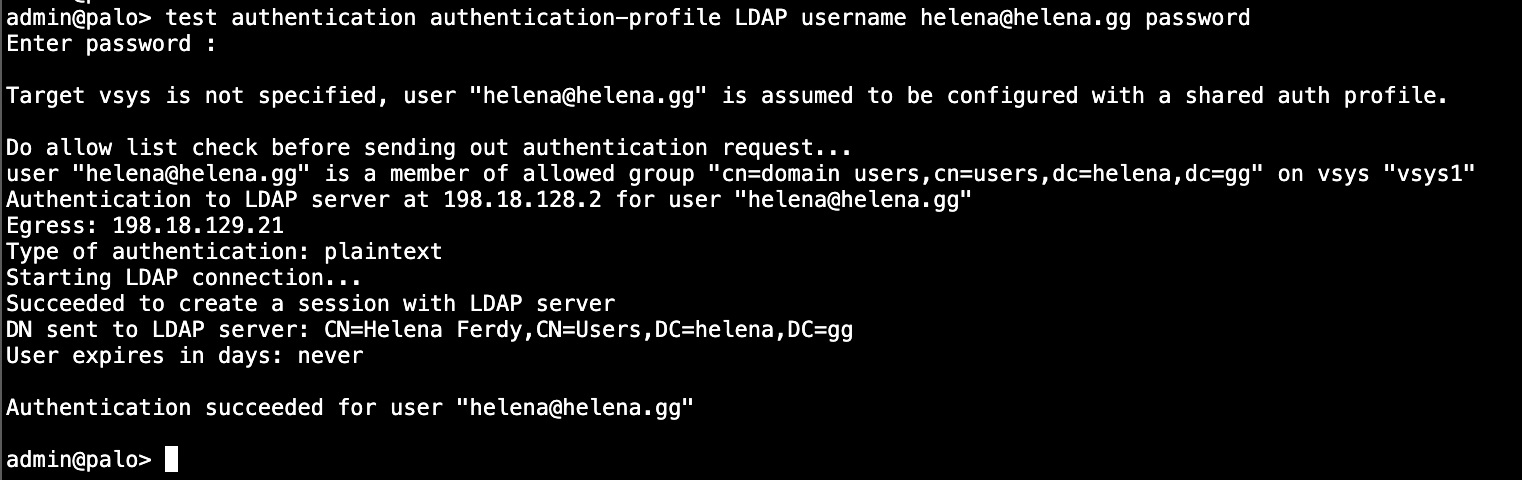

At this point we can run a CLI test to make sure the LDAP Authentication Configuration is working

test authentication authentication-profile LDAP username helena password

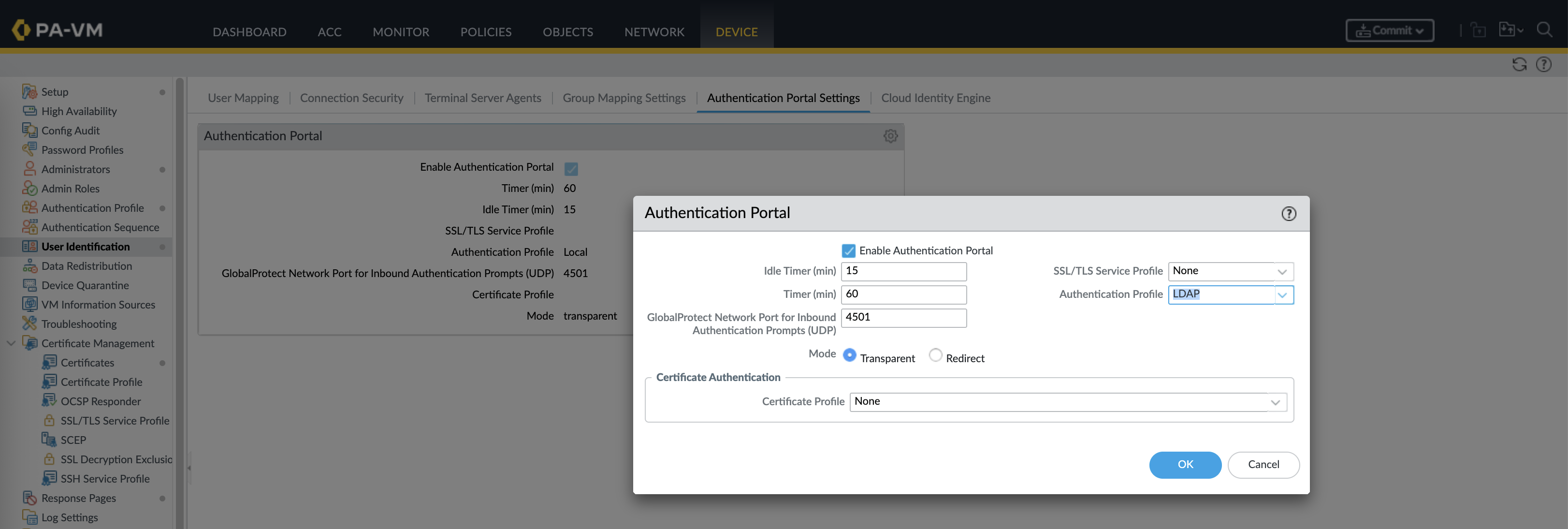

Lastly we need to change the Authentication Profile on the Authentication Portal configuration

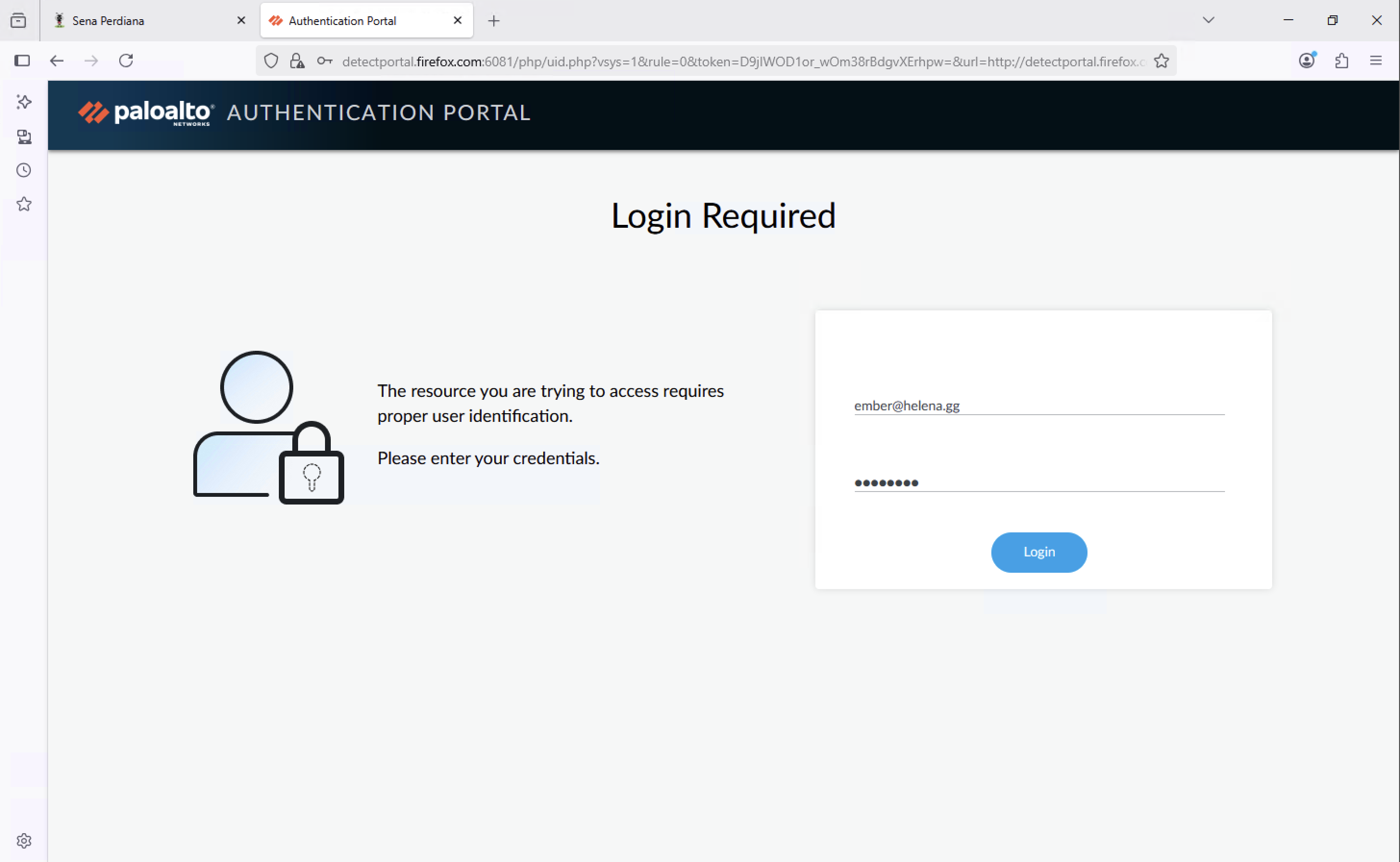

And now the portal will accept LDAP Users
