BGP on Firewalls

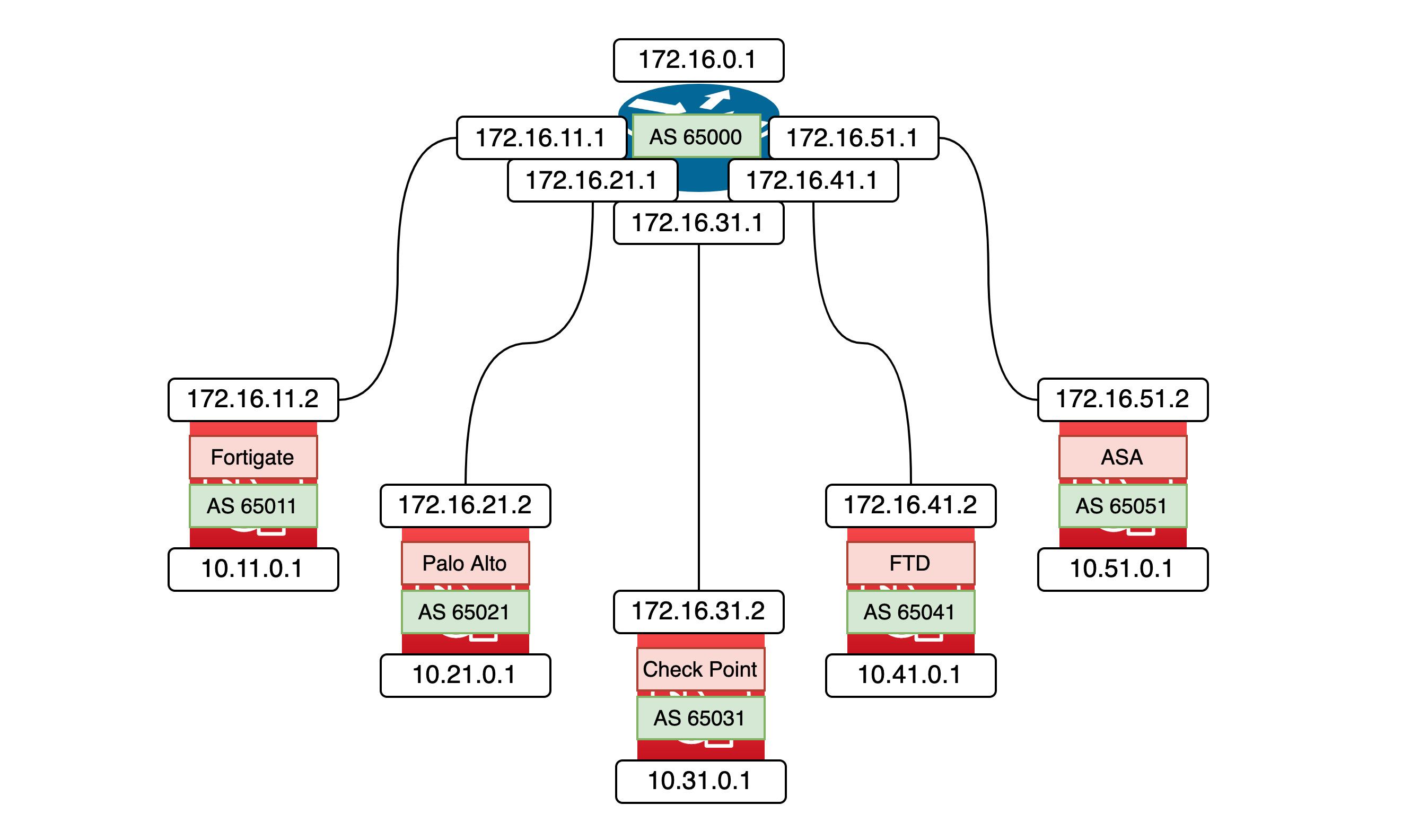

Here’s the planned topology for BGP configuration across multiple firewalls

Here’s the BGP configuration on the Core Switch side

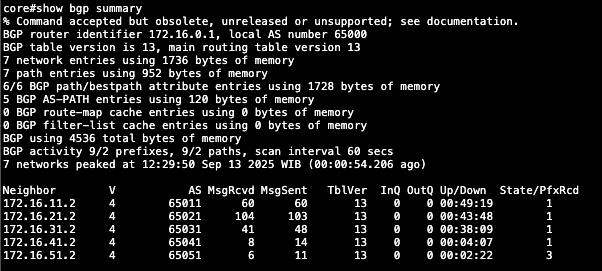

Here we can see the BGP is up and running

show bgp summary

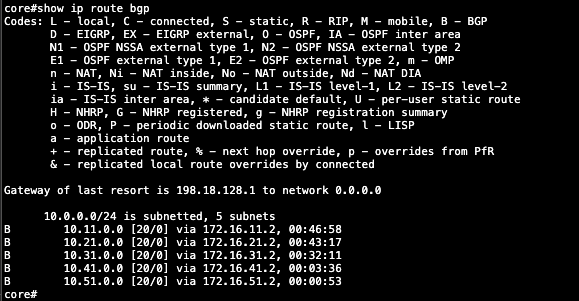

show ip route bgp

Fortigate

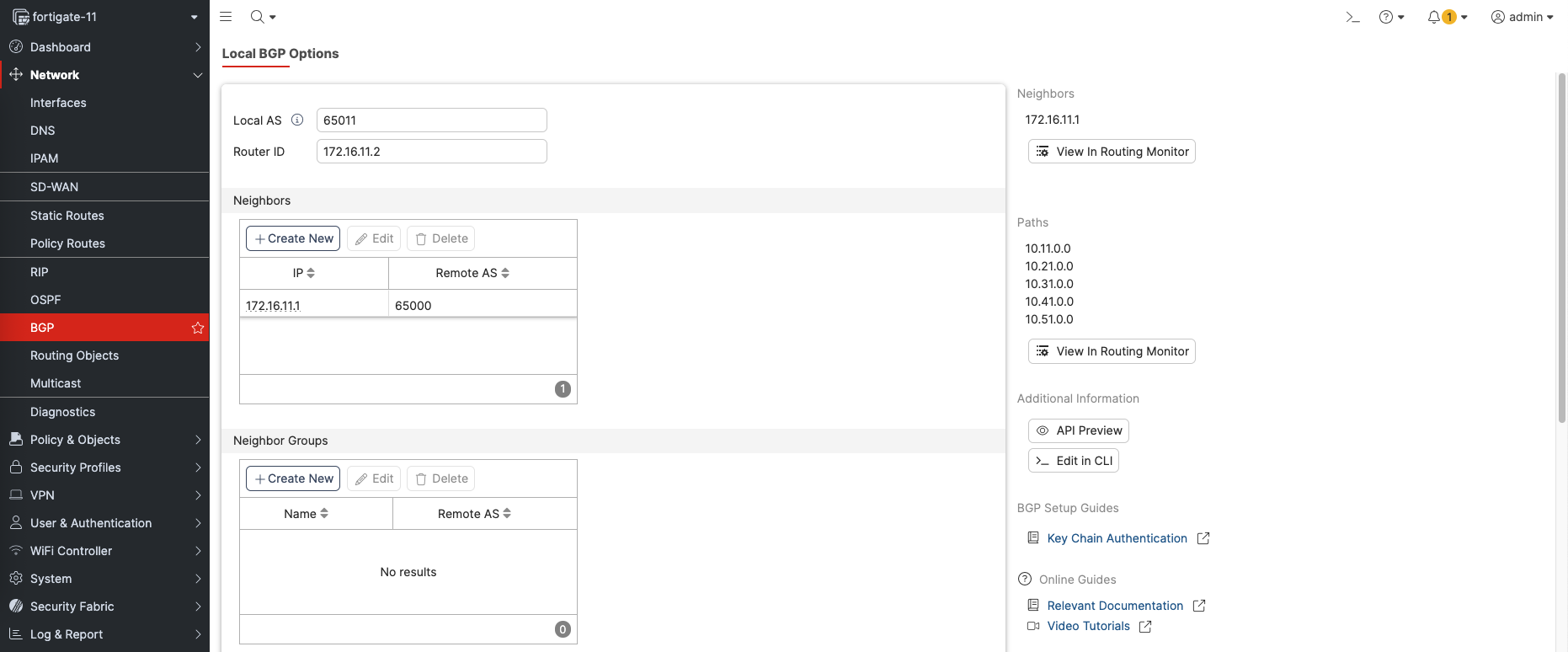

On Forti side, enable BGP by giving it AS Number, Router ID and the BGP Neighbor

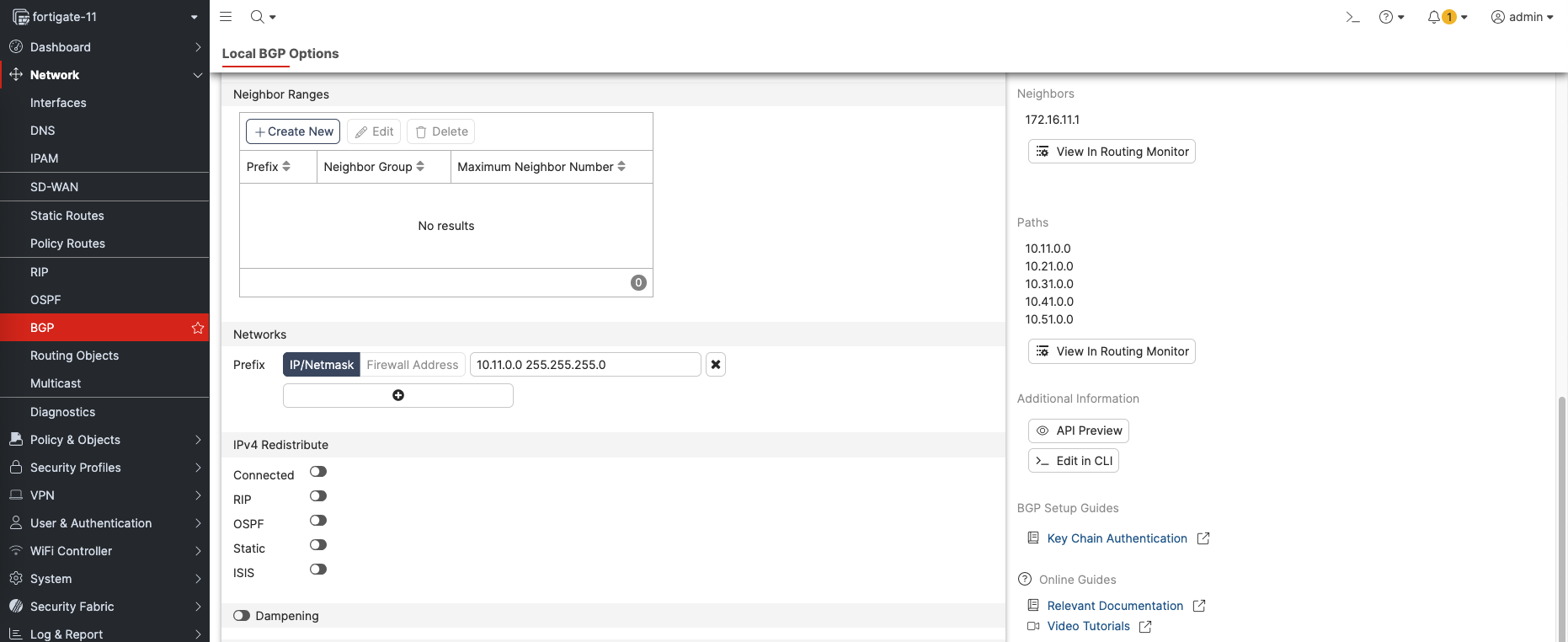

Then add the internal network to advertise

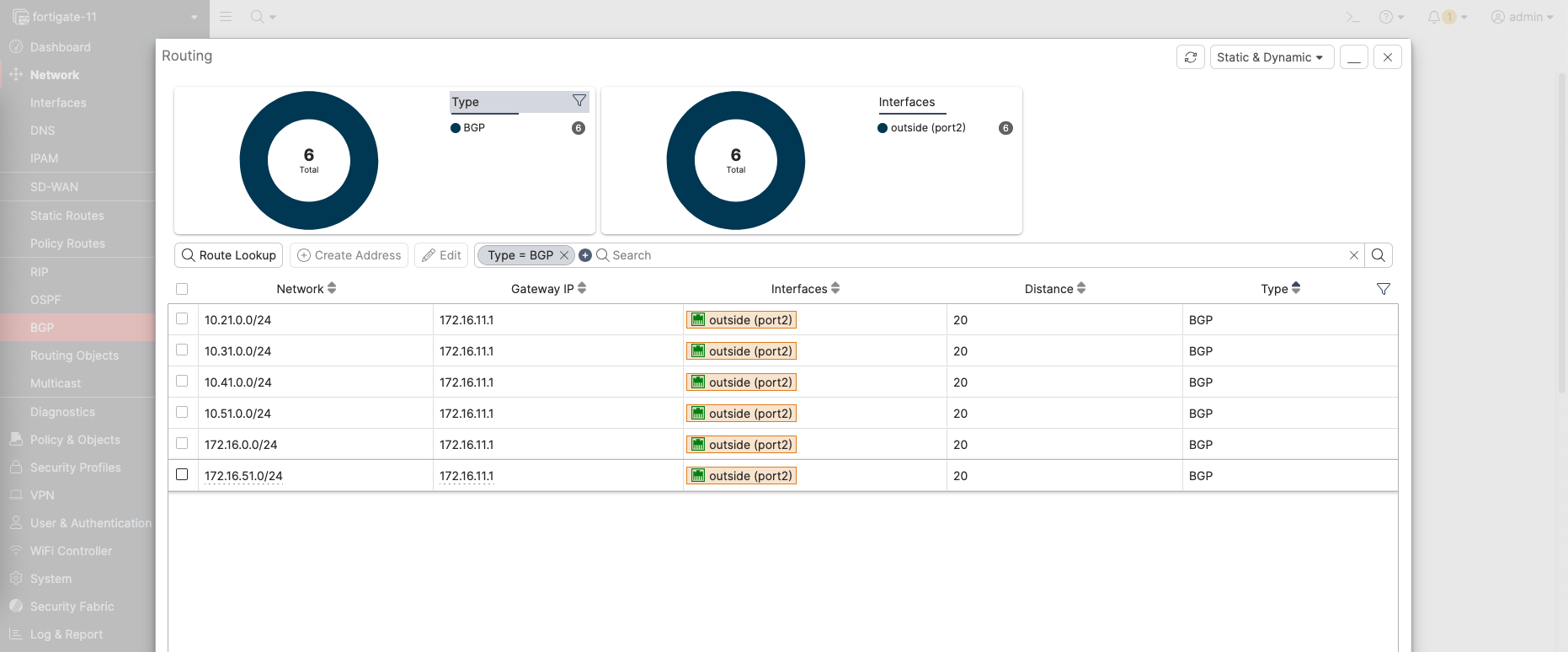

Here we can see the routes received by BGP

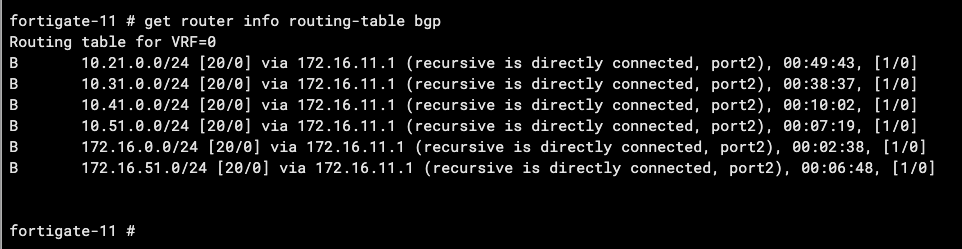

get router info routing-table bgp

Palo Alto

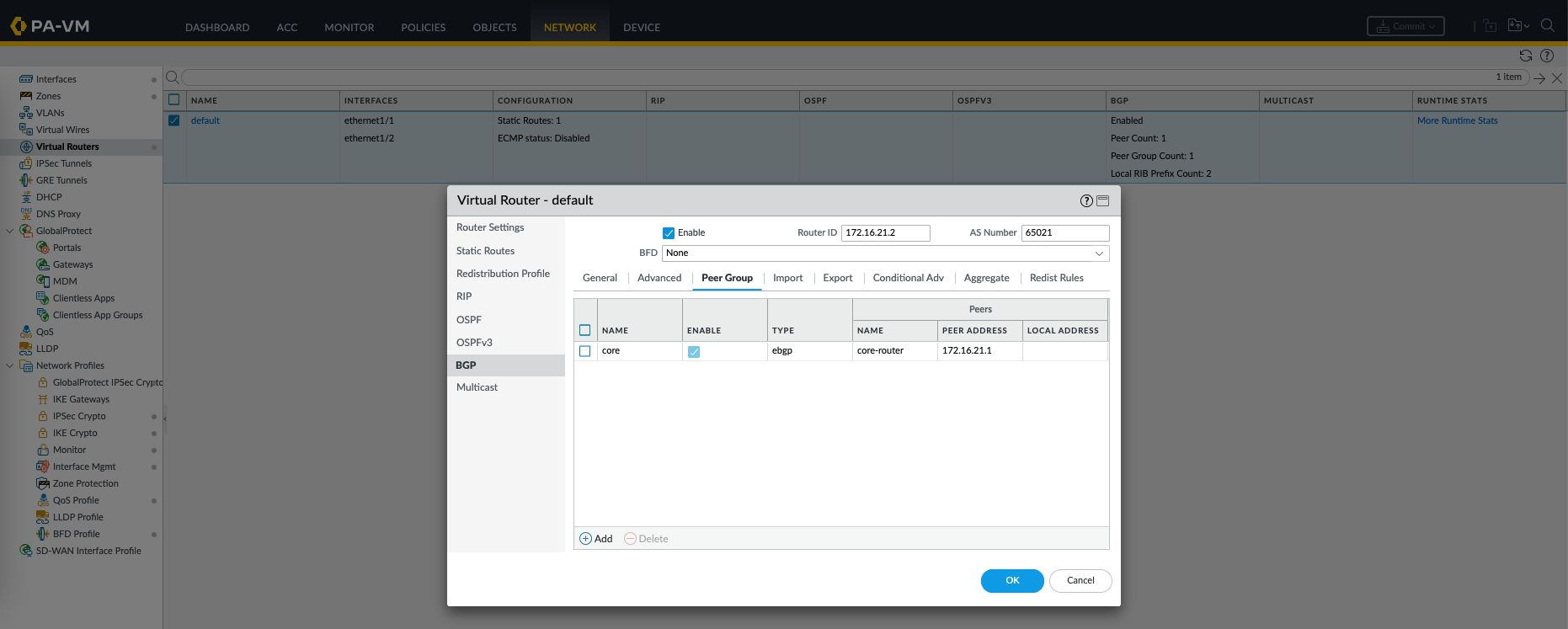

On Palo Alto, we enable BGP on the Virtual Router, here we enable the process, add AS Number, and define the BGP neighbor

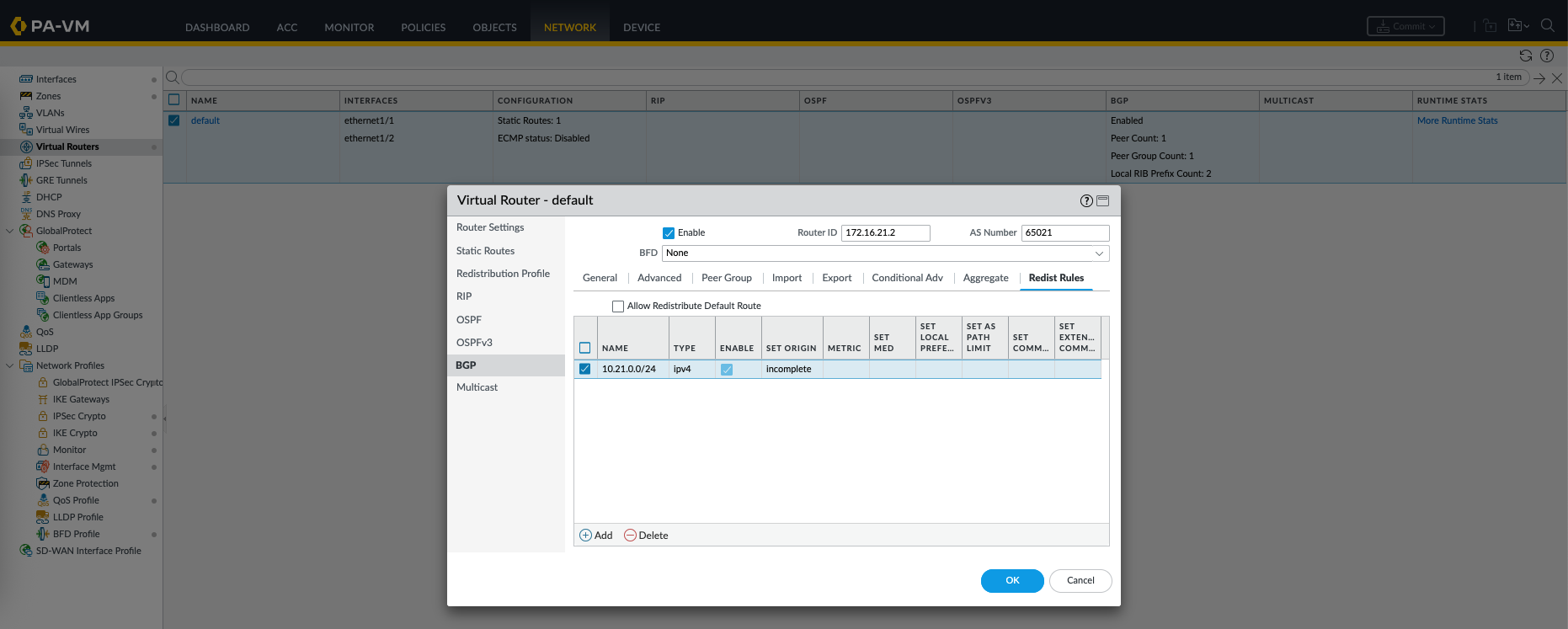

Then on Redist Rules, we add the internal network to advertise

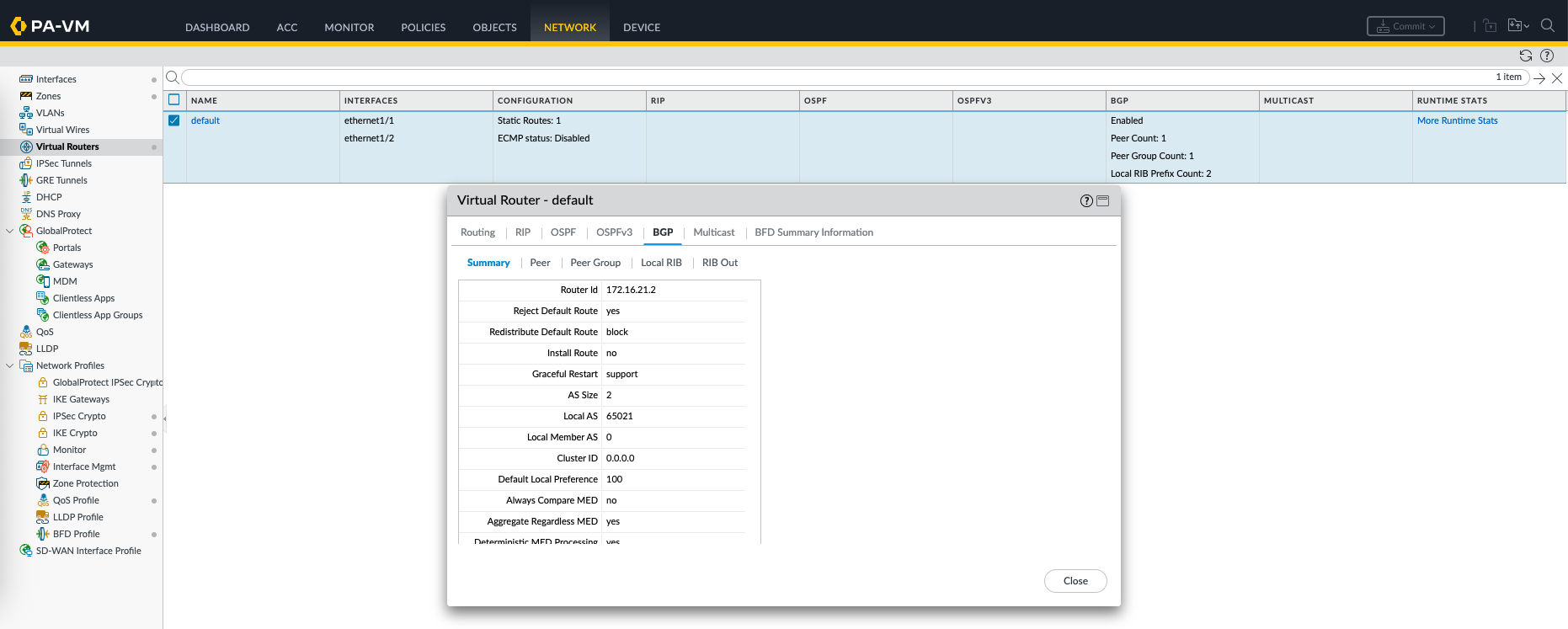

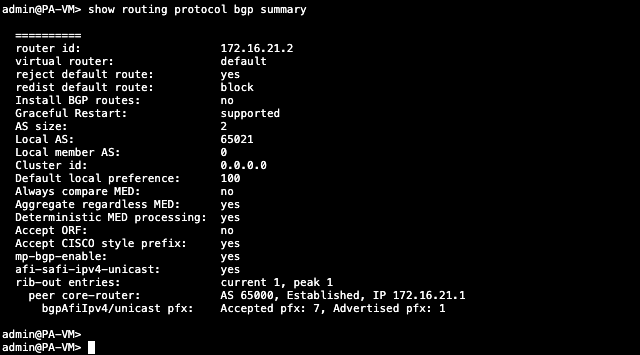

On Runtime Stats we can see the BGP process is up

show routing protocol bgp summary

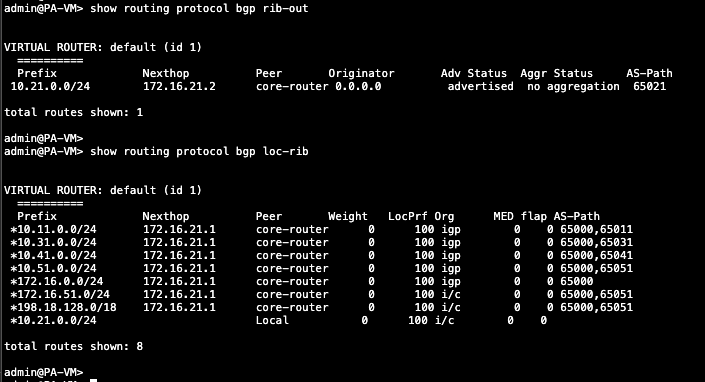

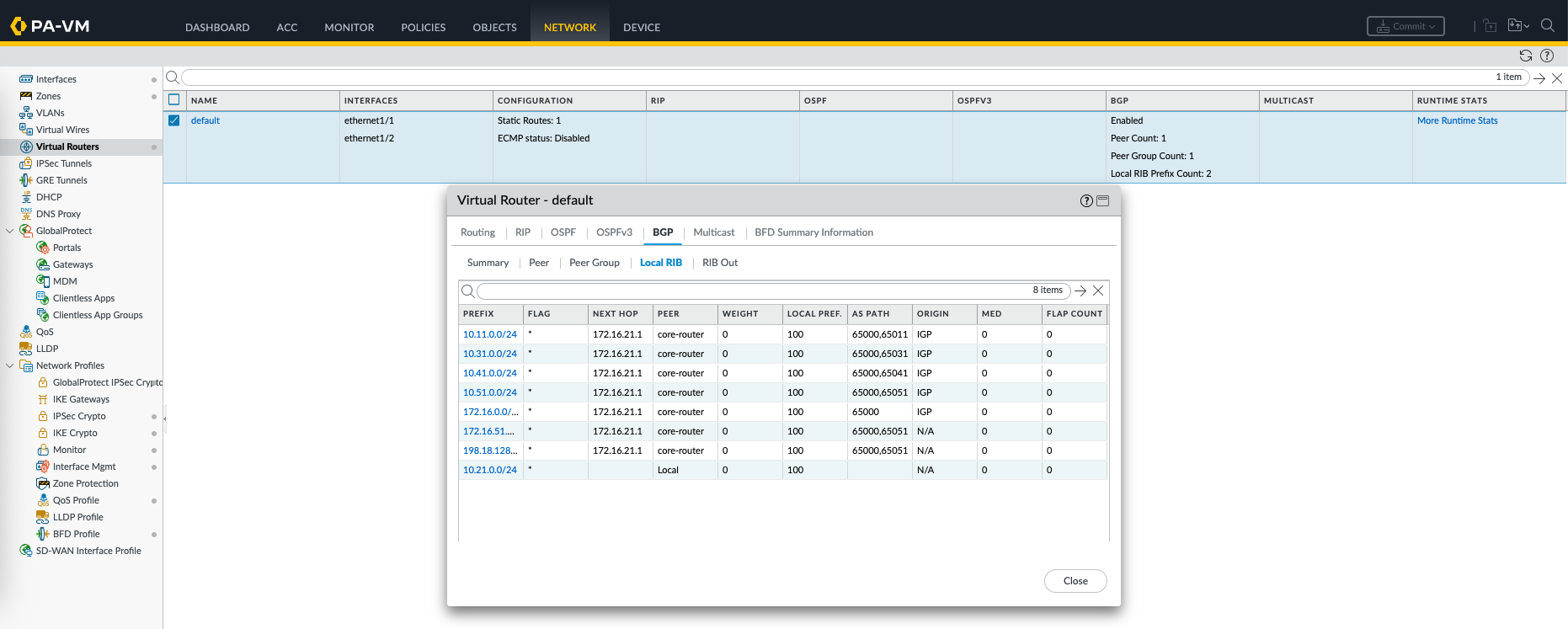

On Local RIB we can see the routes that we receive from BGP

show routing protocol bgp

Check Point

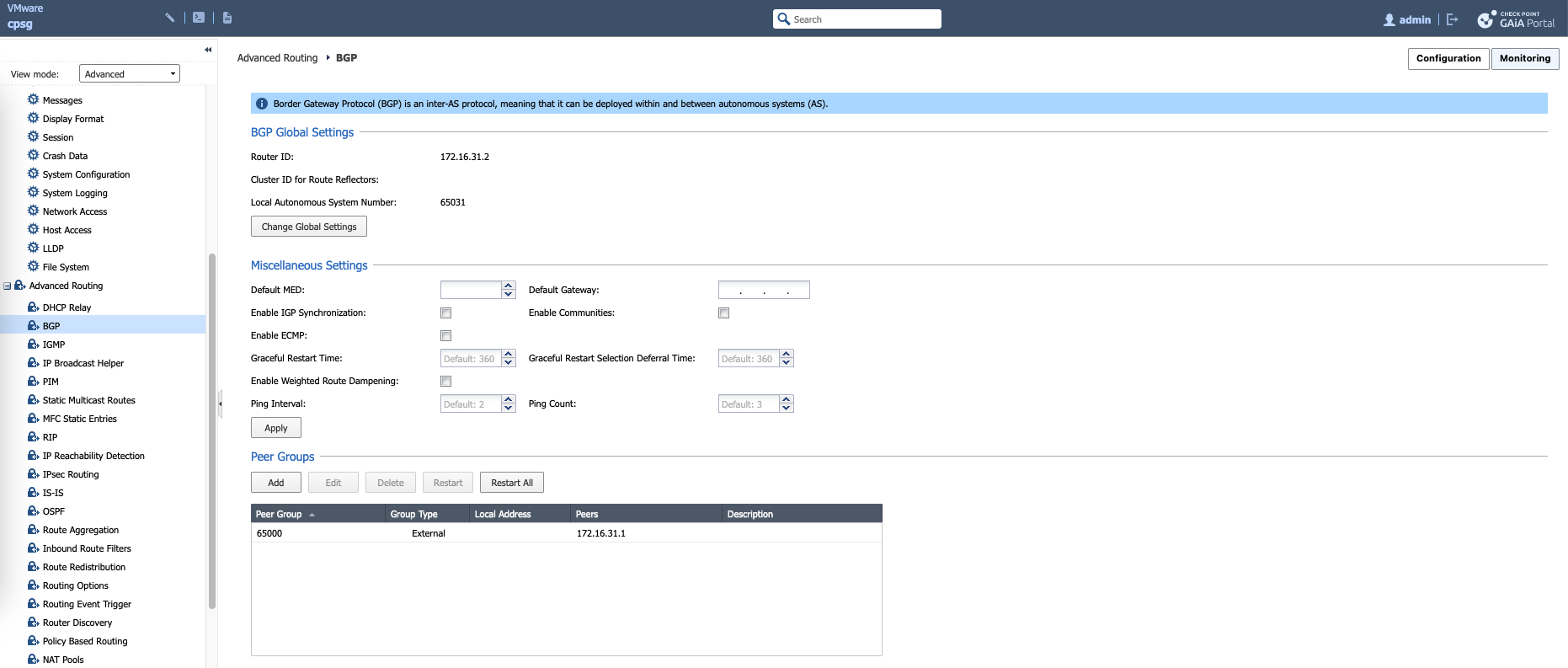

On Check Point, we enable BGP by configuring Router ID, AS Number, and Peer Groups

On Route Redistribution, we add the internal interface to be advertised

We can see the BGP process on the monitoring tab

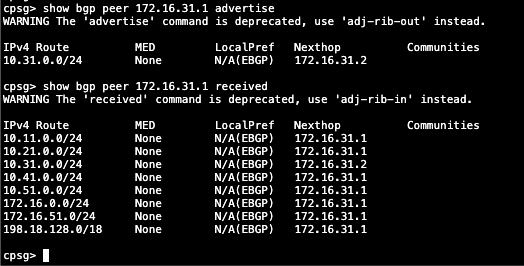

show bgp peer

Cisco FTD

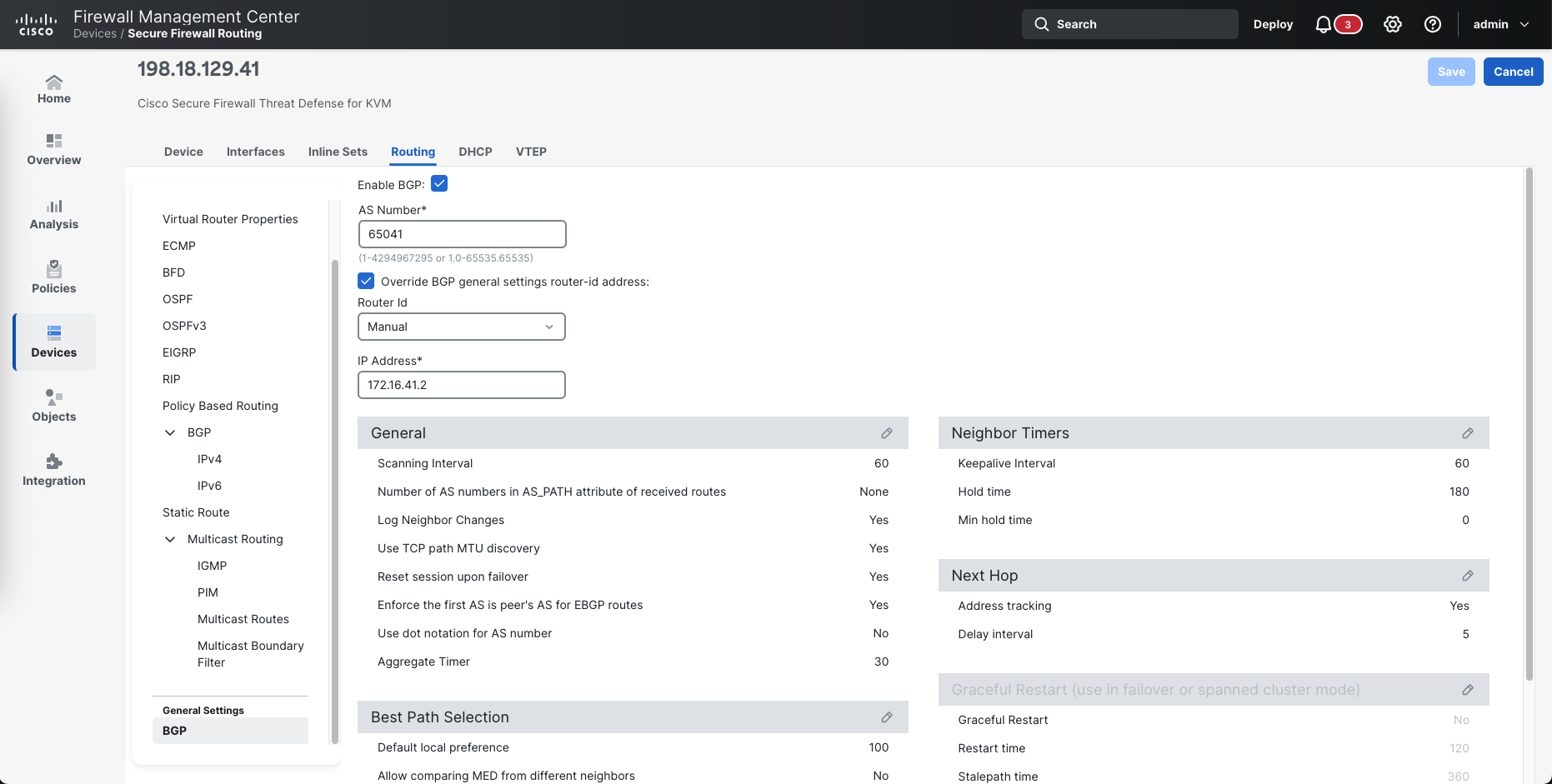

On FTD managed by FMC, first we enabel BGP and give it AS Number

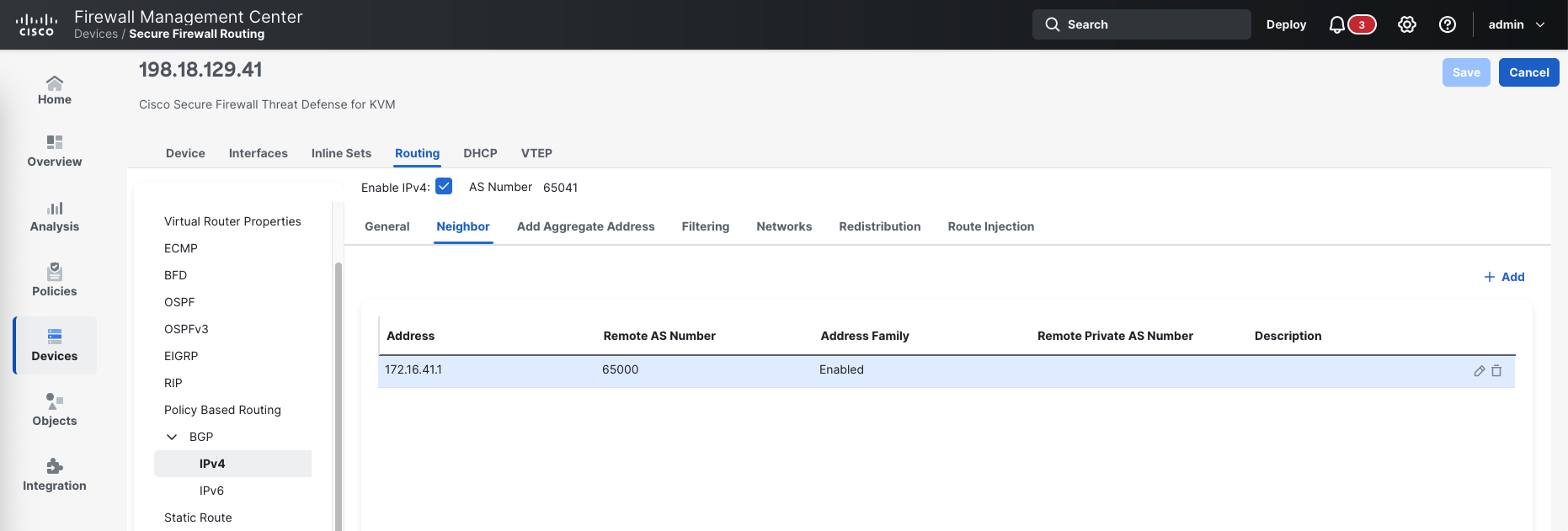

Then we add the BGP neighbor

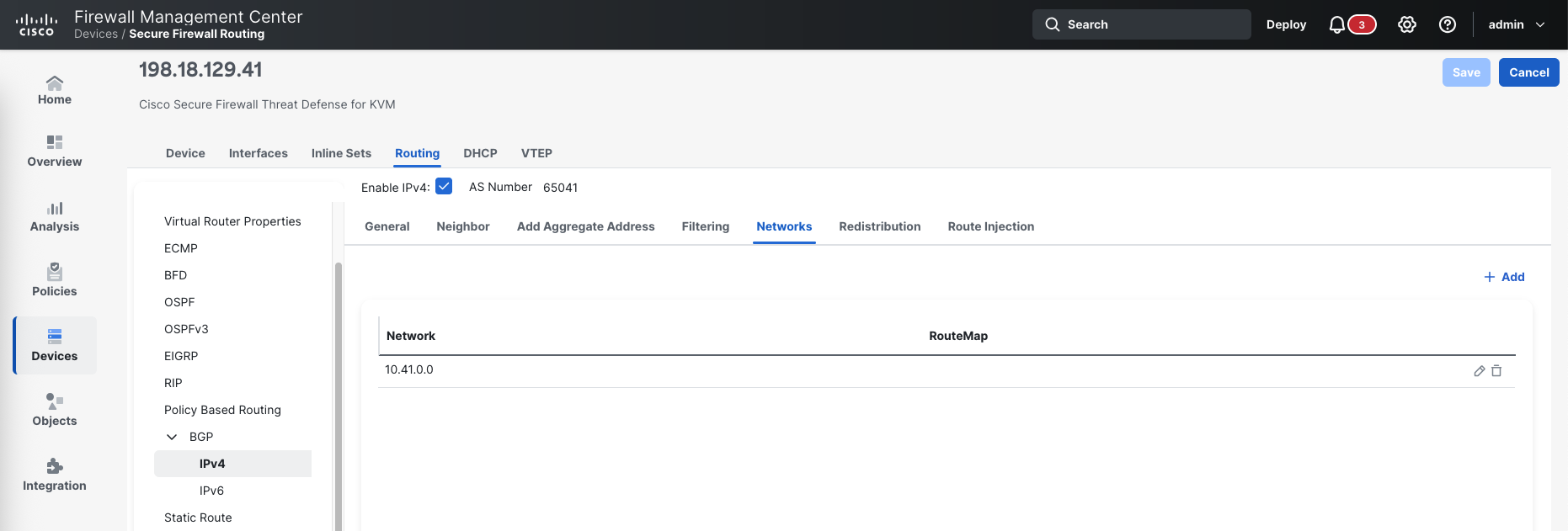

And we also add the internal network to be advertised

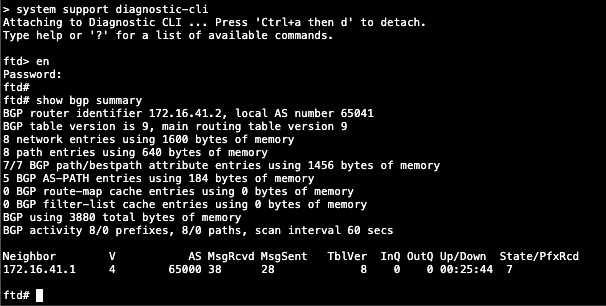

Run this command to see the BGP process

system support diagnotic-cli
show bgp summary

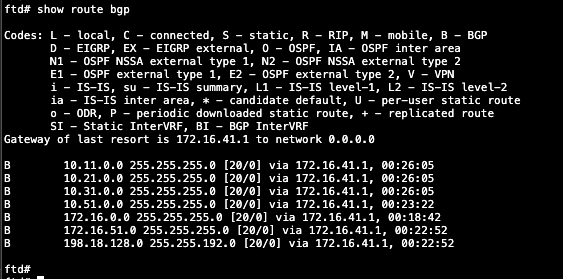

show route bgp

Cisco ASA

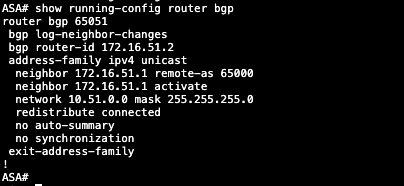

Here’s the BGP configuration on ASA side

Run this command to verify the BGP process

show bgp summary
show route bgp
