OSPF on Firewalls

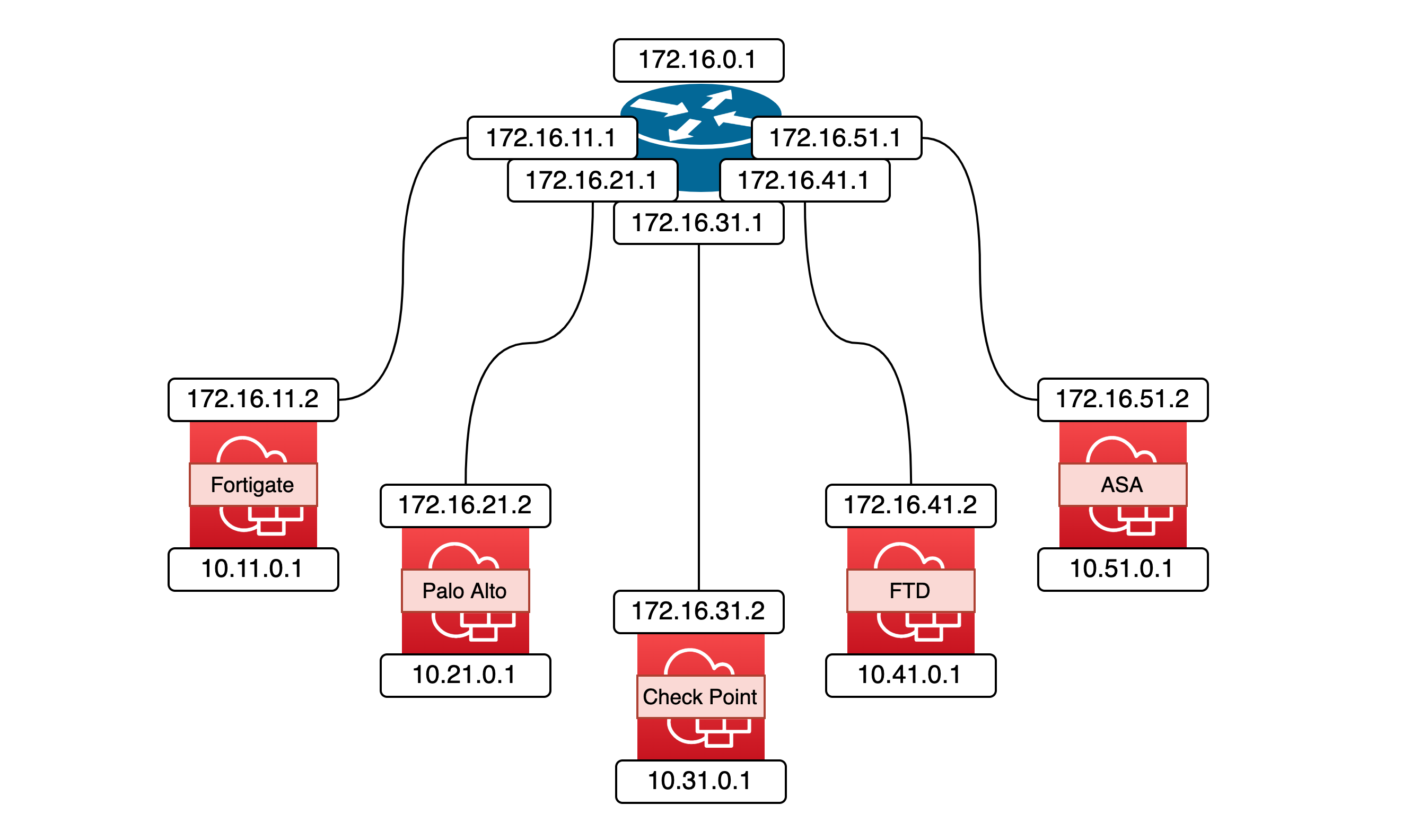

Here’s the planned topology for OSPF configuration across multiple firewalls

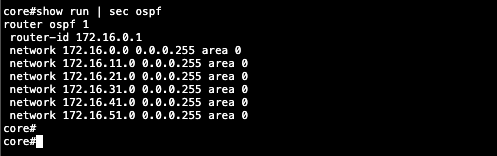

On the Core Switch side, we enable OSPF on all required interfaces

Here we can see the OSPF configuration is up and running

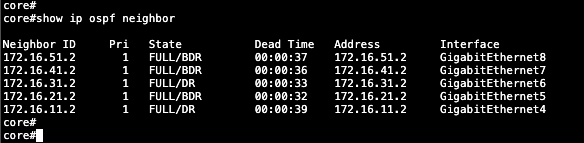

show ip ospf neighbor

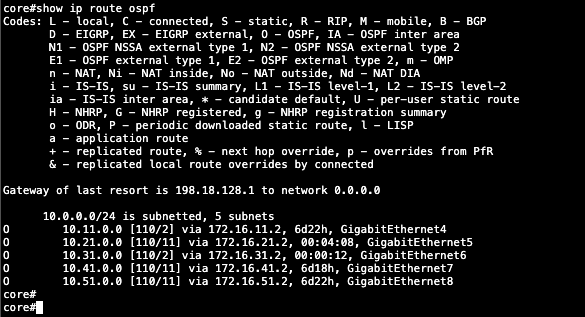

show ip route ospf

Fortigate

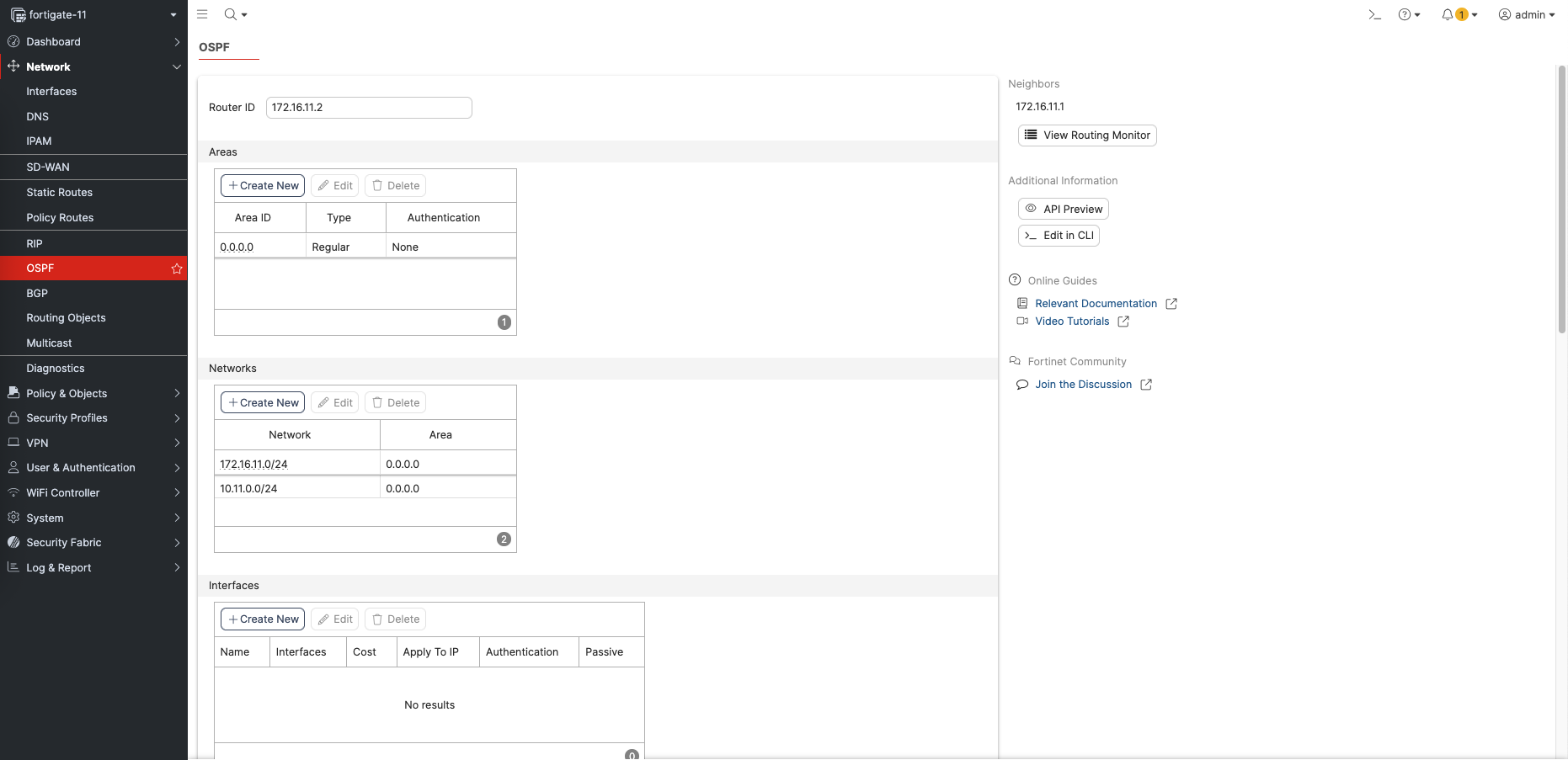

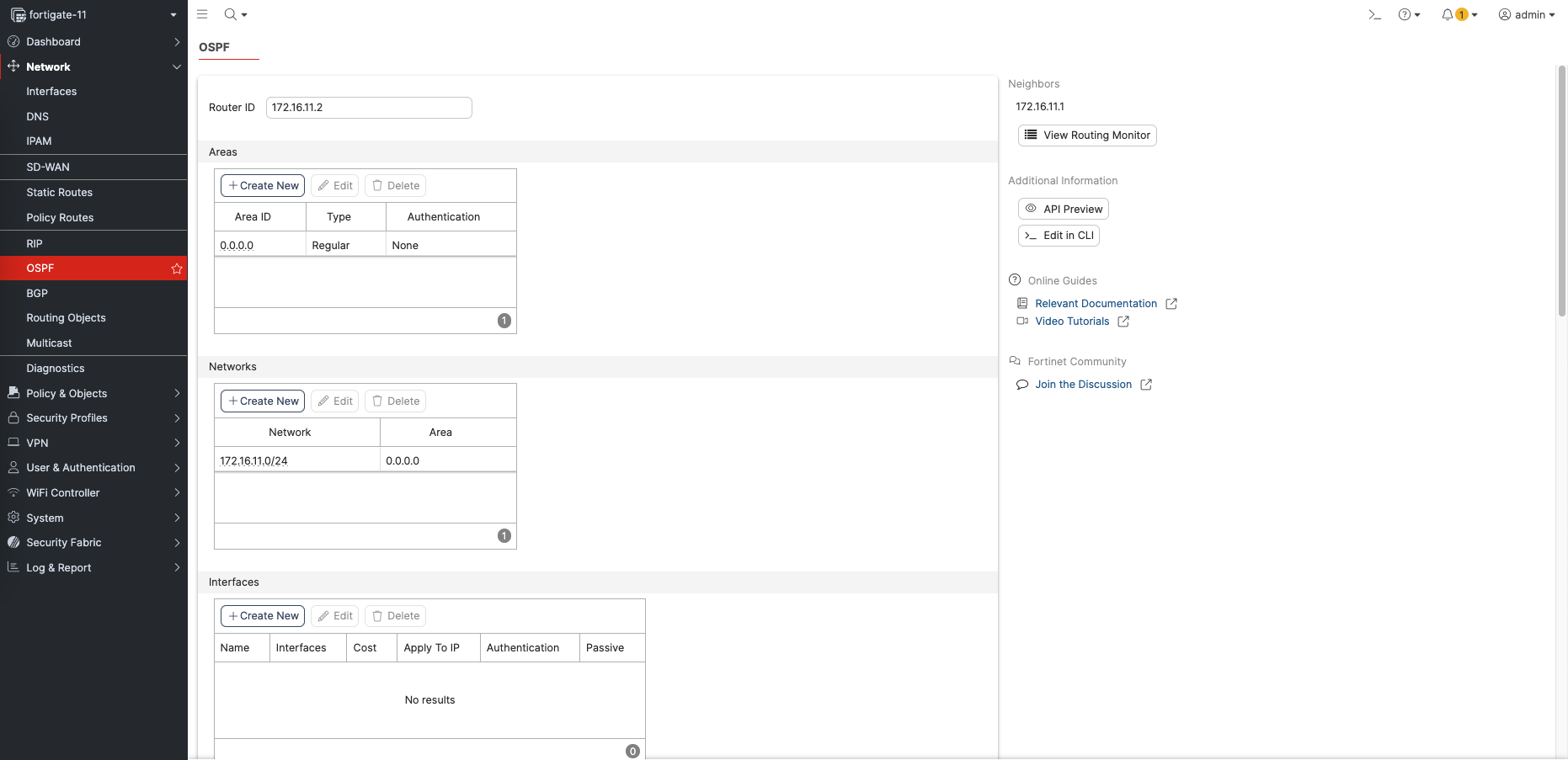

On fortigate side, enable OSPF on Network » OSPF. Here we give it Router ID, Area 0, and networks to join the OSPF neighborship

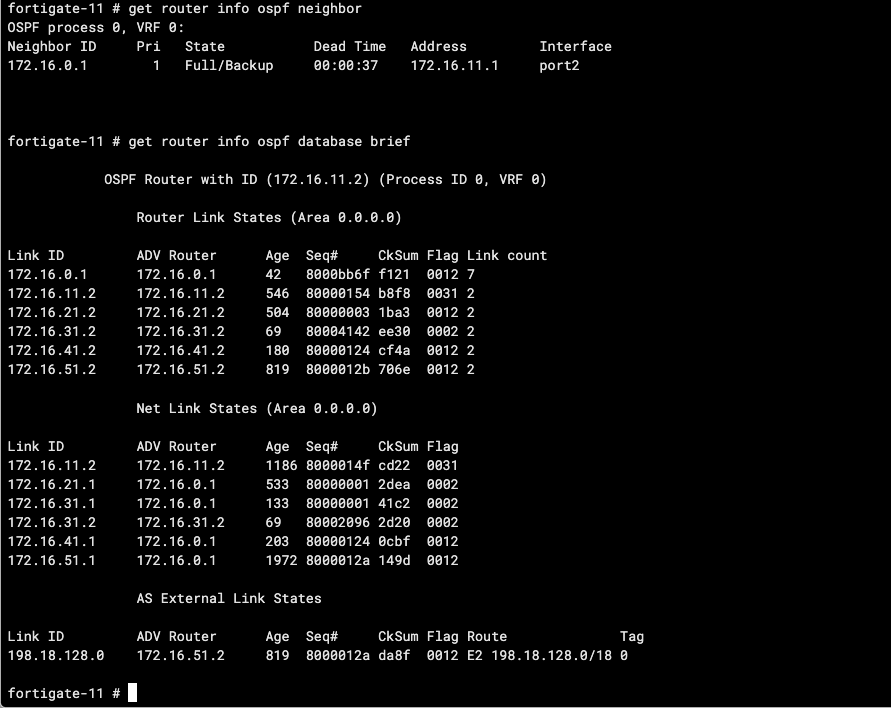

Run this command to show OSPF neighborship on CLI

get router info ospf neighbor

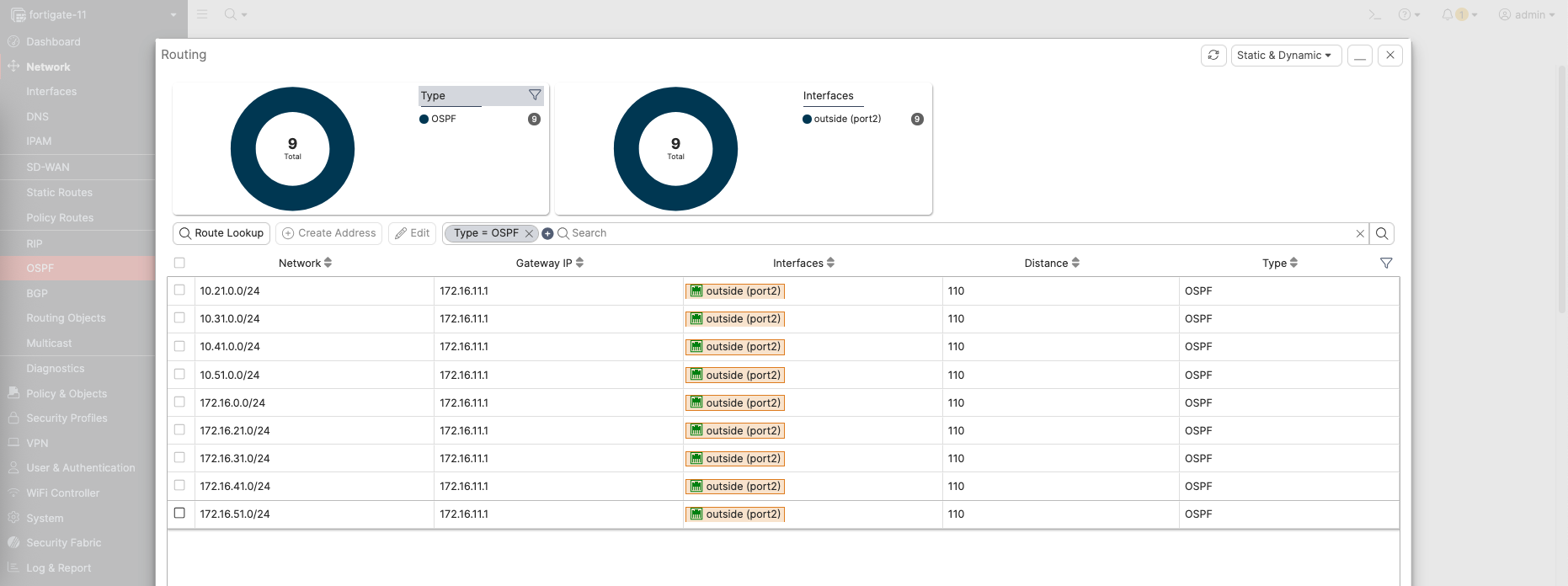

We can also see the advertised routes that we receive from OSPF on Routing Monitor

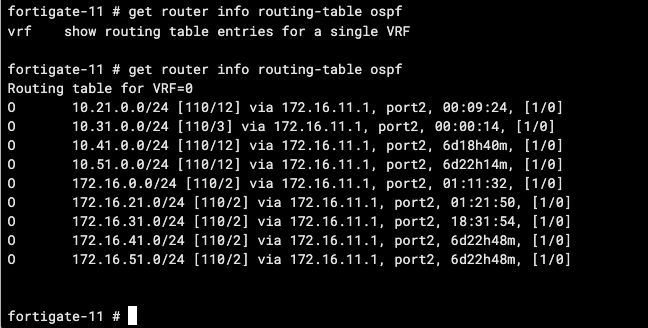

get router info routing-table ospf

Palo Alto

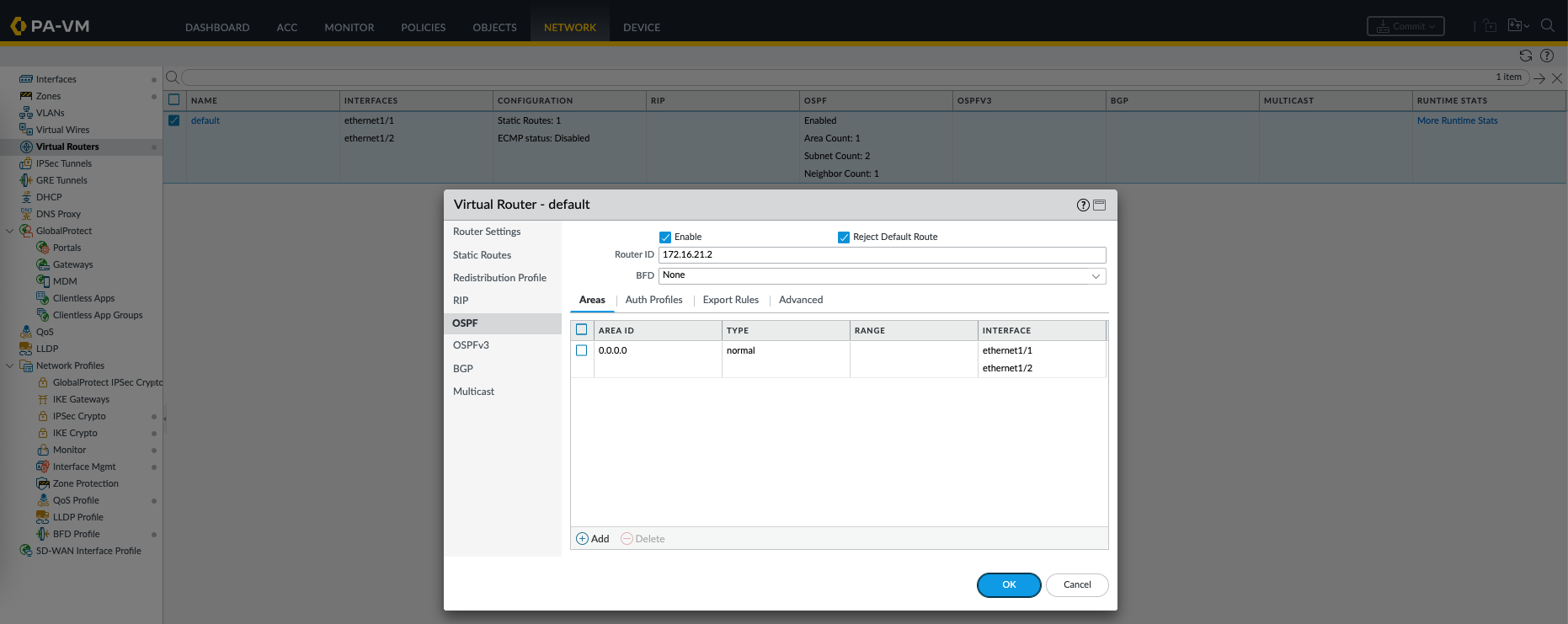

On Palo side, we configure OSPF on the Virtual Router, here we enable OSPF, give it Router ID, Area 0, and interfaces to be part of neighborship

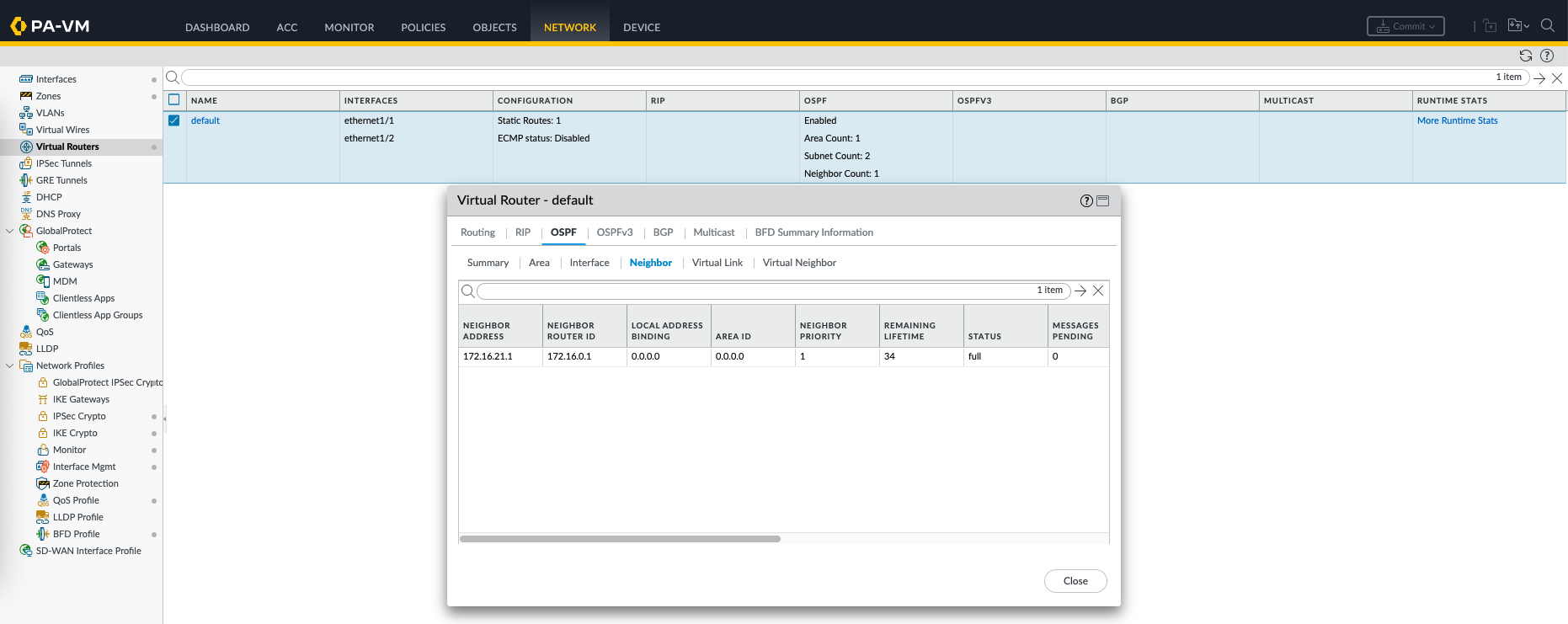

Now on the runtime stats we can see the OSPF process is up and running

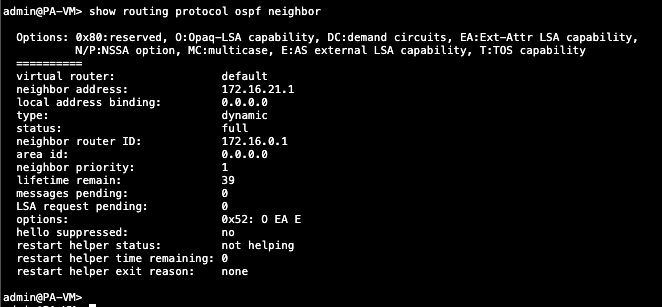

show routing protocol ospf neighbor

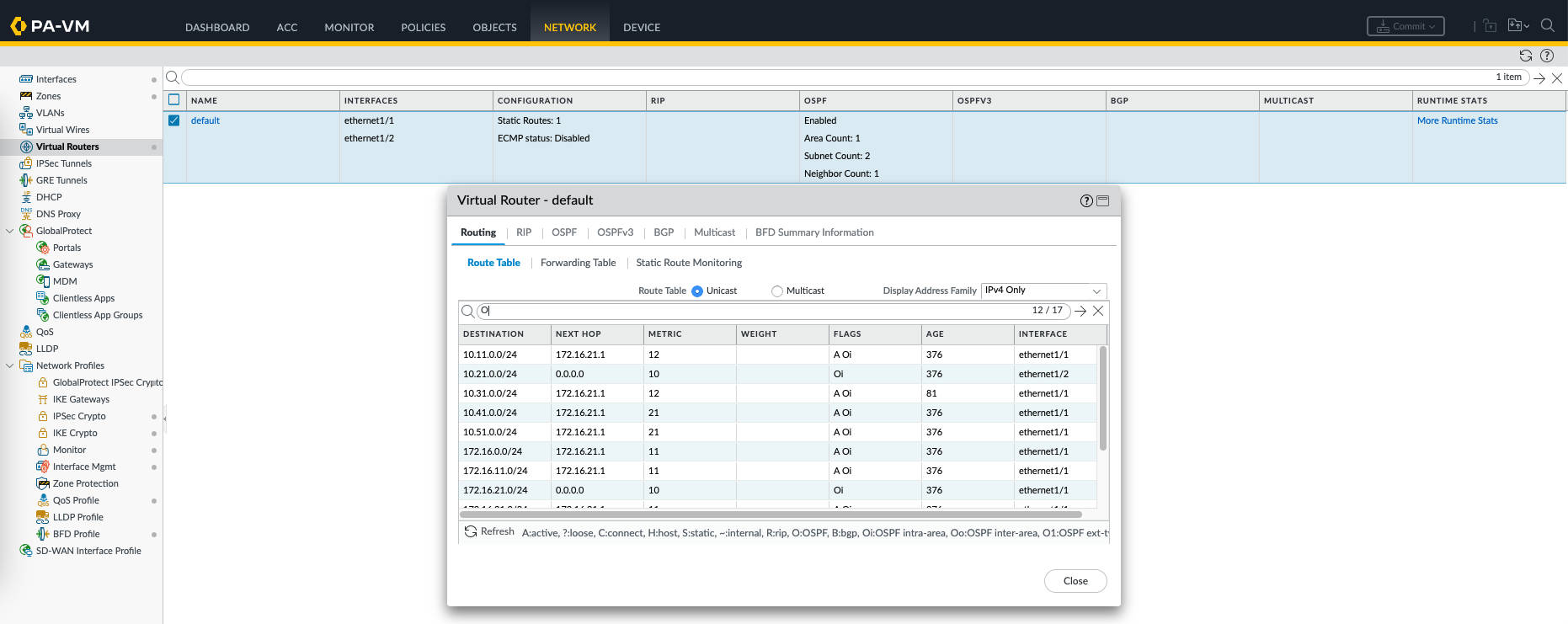

We can also see all the advertised routes we receive from OSPF

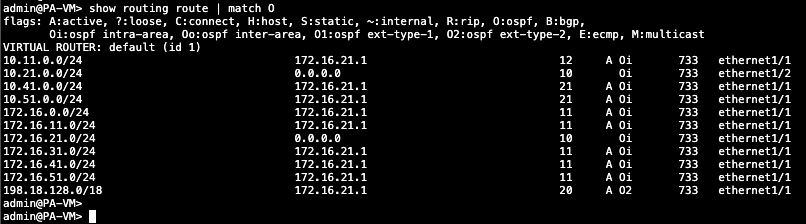

show routing route

Check Point

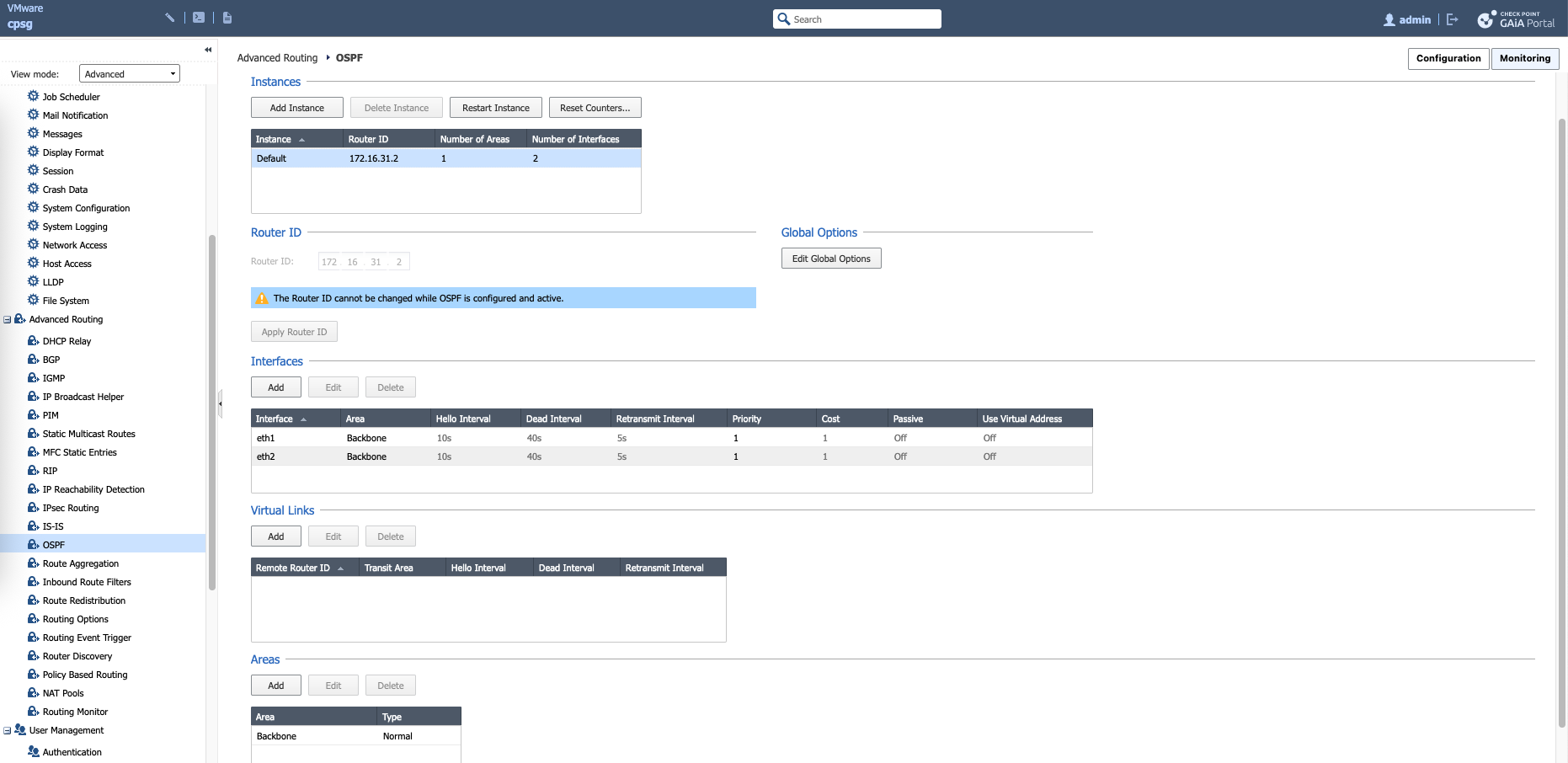

On Check Point side, we configure OSPF through GAIA, here we create an Area 0 (Backbone), give it Router ID, and add the interface members

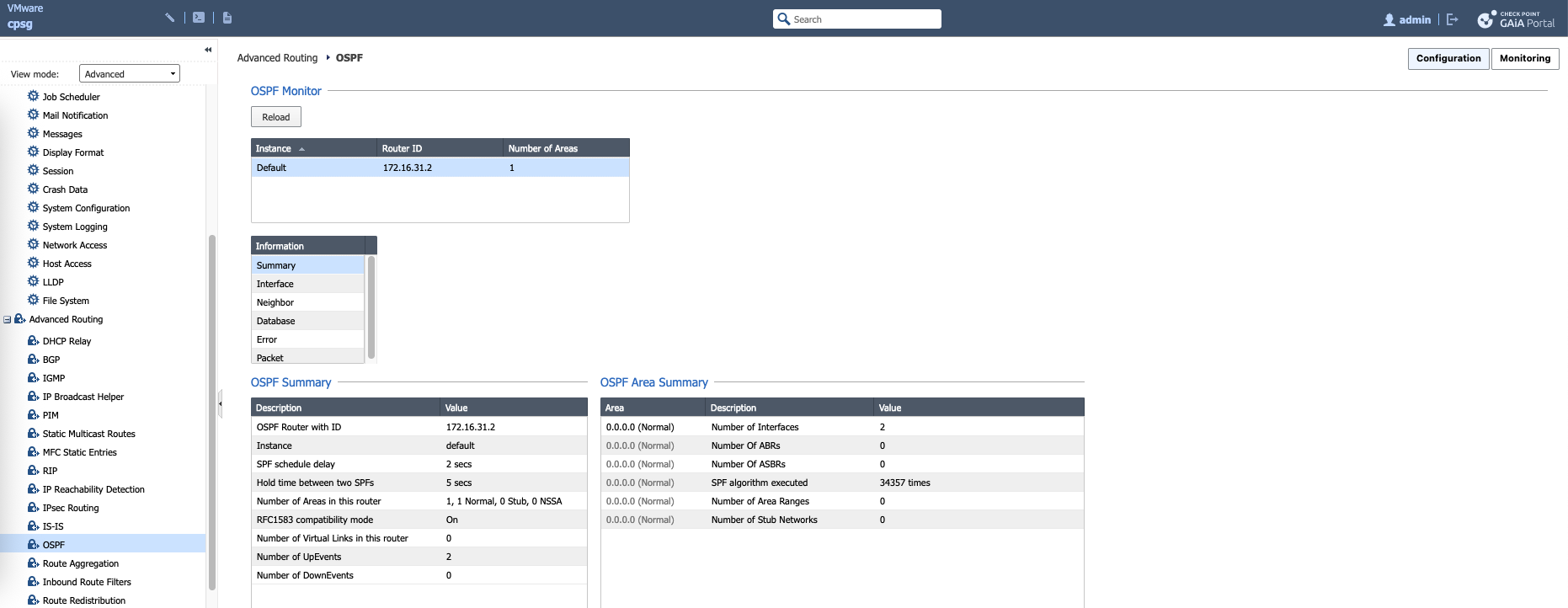

On Monitoring tab, we can see the OSPF process is now running

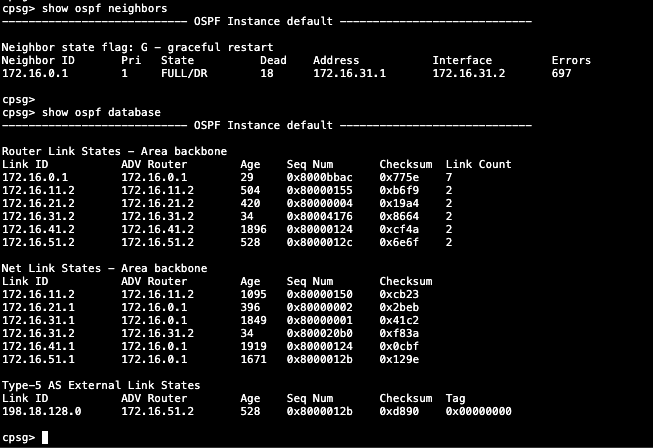

show ospf neighbors

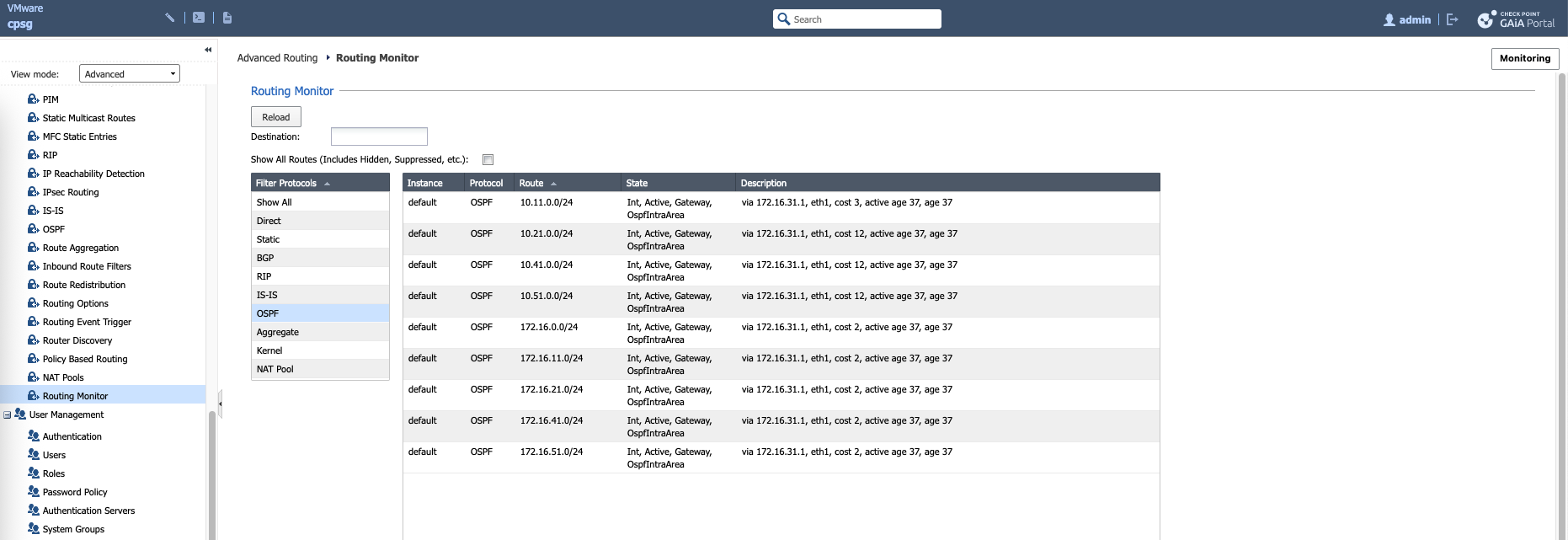

On routing monitors we can also see the received routes

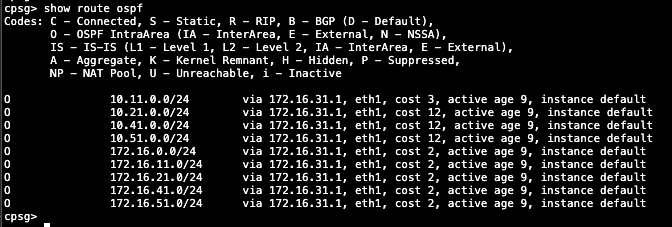

show route ospf

Cisco FTD

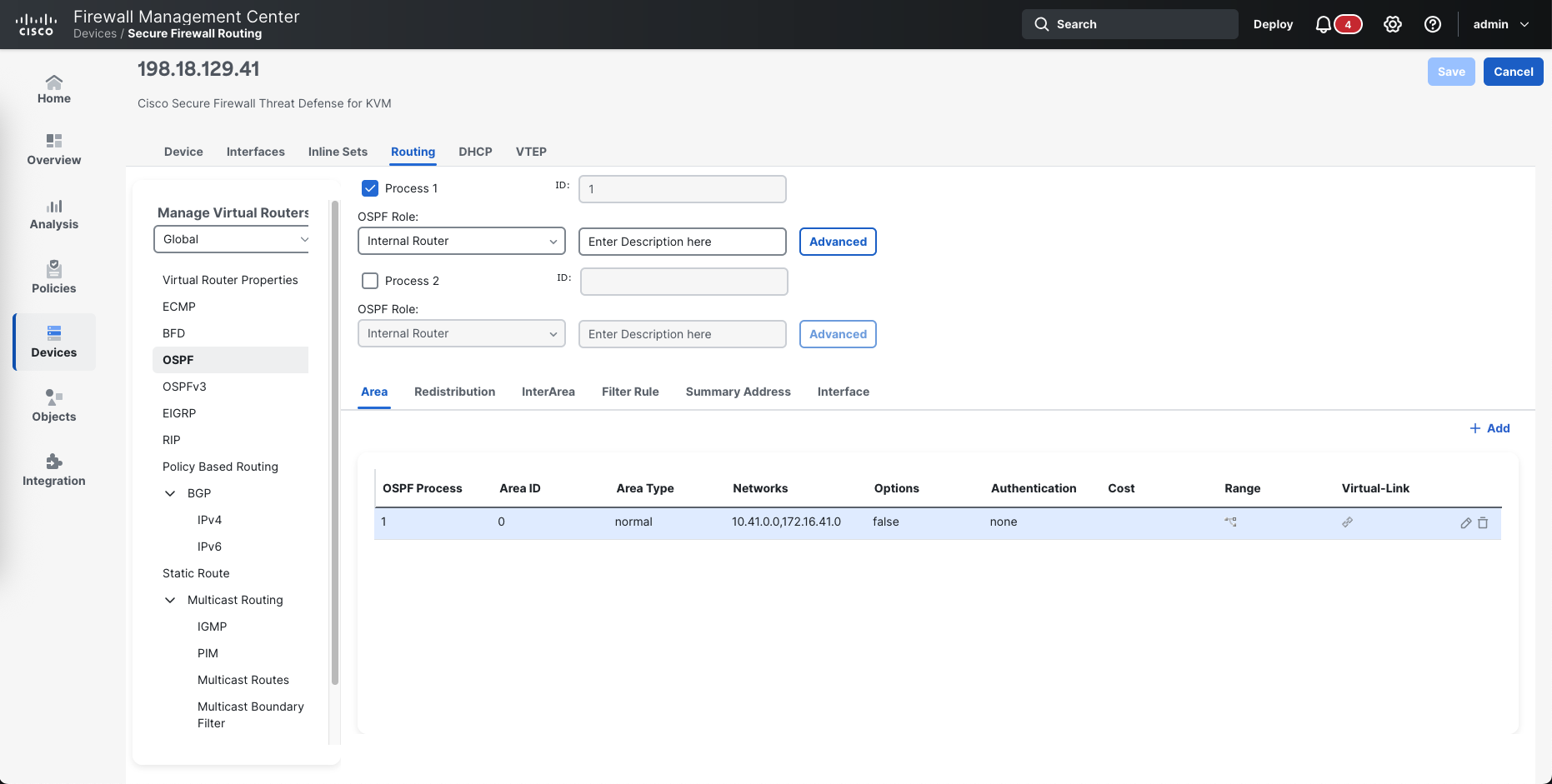

On FTD managed by FMC, we can enable OSPF on the Routing tab, here we enable the OSPF process as Internal Router, then add the Area 0 with the networks that we wish to be advertised

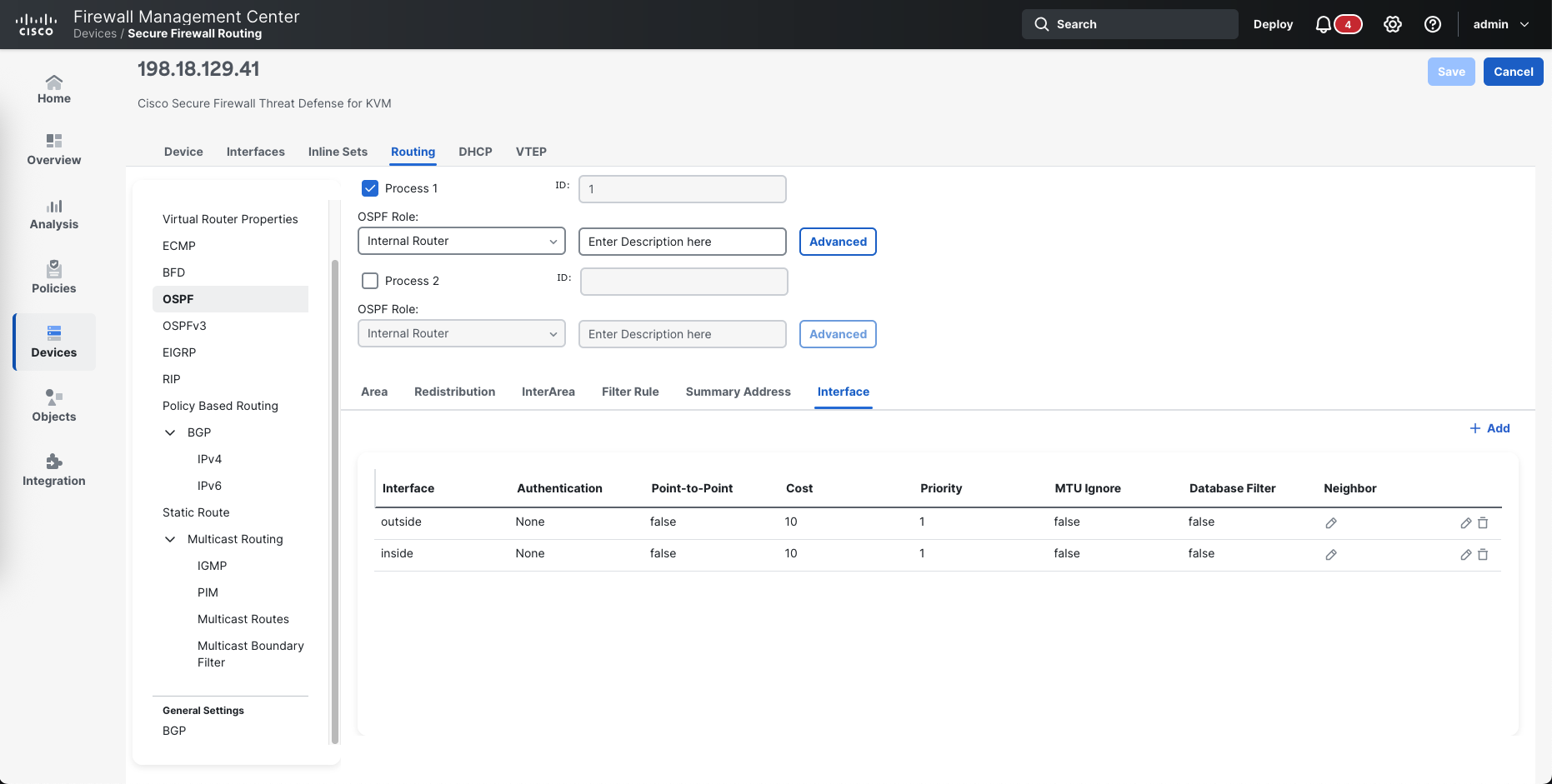

Then on Interface, add the interface members

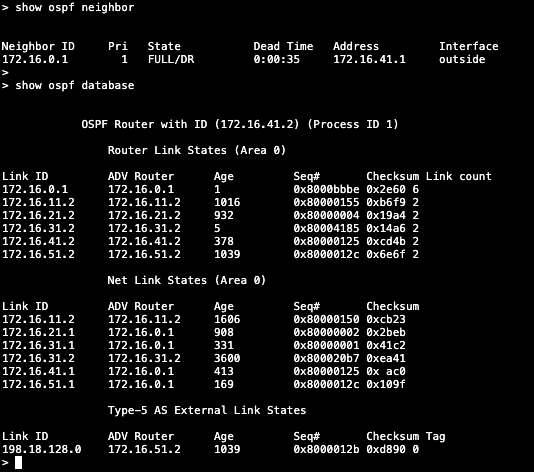

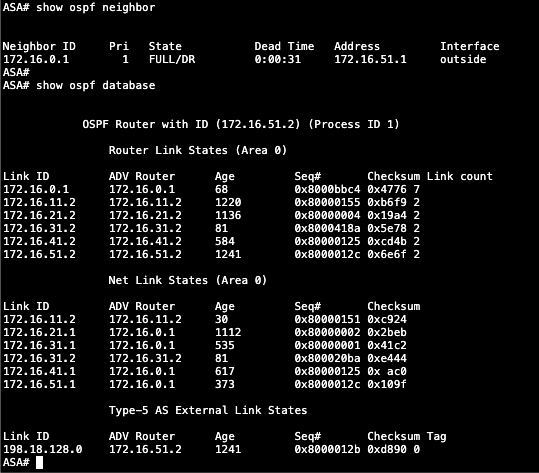

To verify OSPF process, run the cli commands

show ospf neighbor
show ospf database

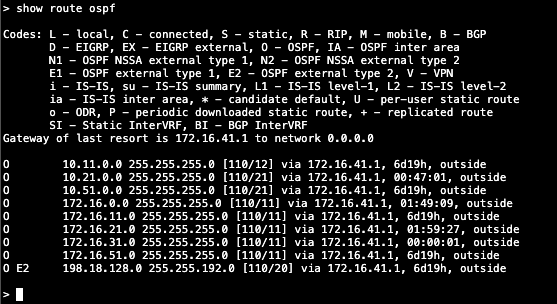

show route ospf

Cisco ASA

Below is the OSPF configuration on the ASA side

router ospf 1
 router-id 172.16.51.2
 network 10.51.0.0 255.255.255.0 area 0
 network 172.16.51.0 255.255.255.0 area 0

Run the commands to verify OSPF process

show ospf neighbor

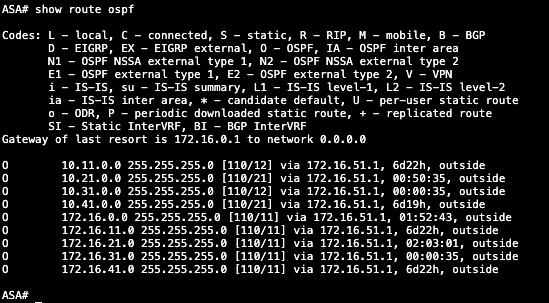

show route ospf

Redistribute

The configuration above enables OSPF process on all interface members to advertise their networks, even though not all interface is pointing to another OSPF neighbor. Here we will clean up the configuration by only enabling OSPF process on the needed interface, and redistribute the connected network so it can be advertised.

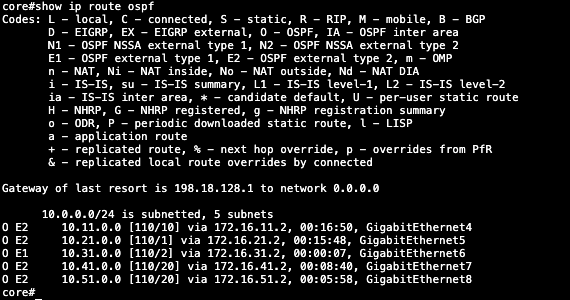

After configured, the advertised network will look like this

• Type 1 (E1) = external cost + internal OSPF cost.

• Type 2 (E2) = external cost only (default).

Fortigate

Here we deleted the inside network

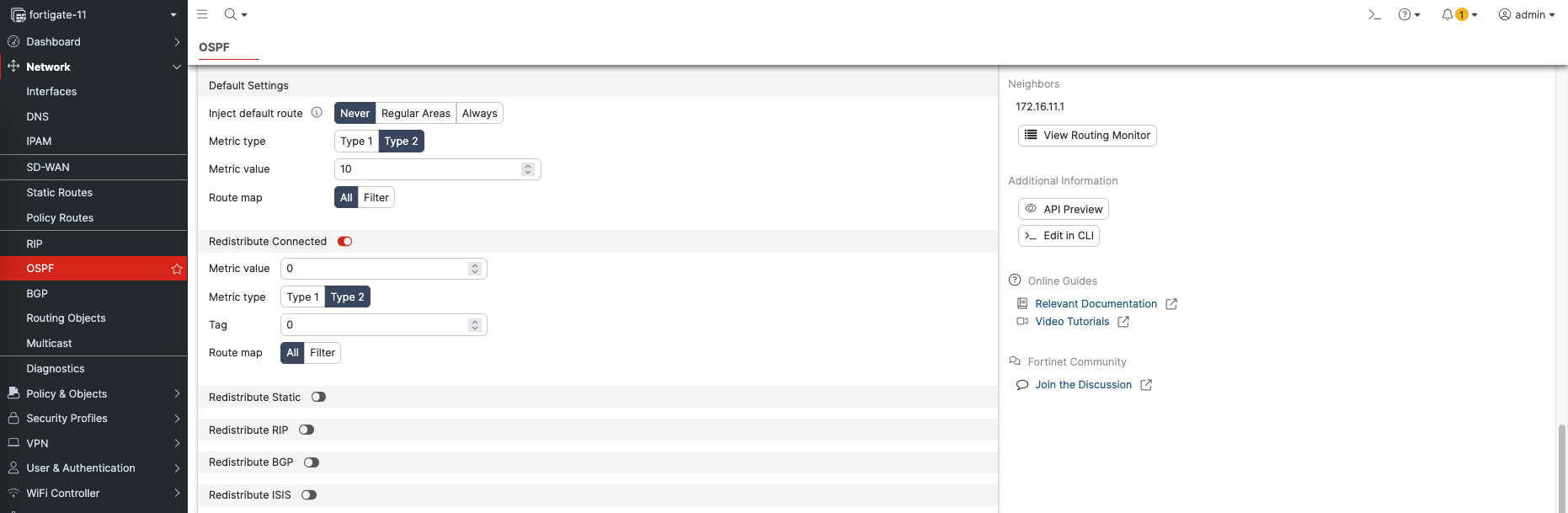

Then we enable the Redistribute Connected option

Palo Alto

On the Area 0, we remove the internal interface

And on the Export Rules, we add the network that we’d like to redistribute

Check Point

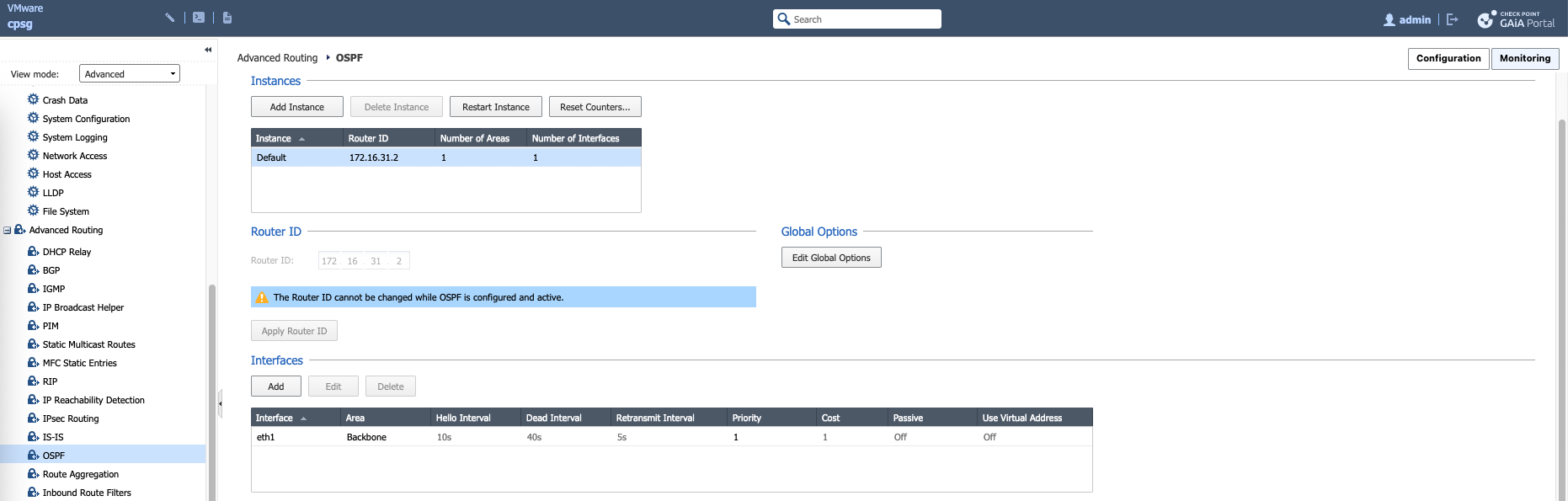

Here we remove the internal interface

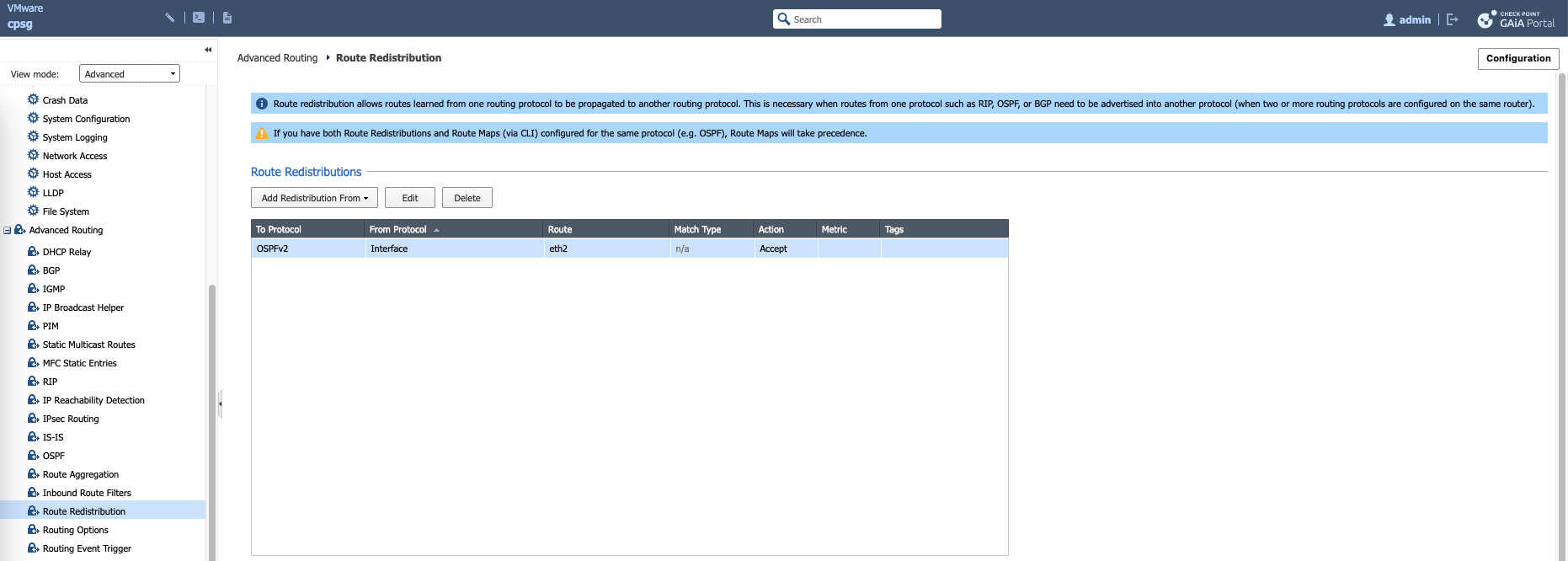

Then on Route Redistribution, add a new redistribution from the same interface

Cisco FTD

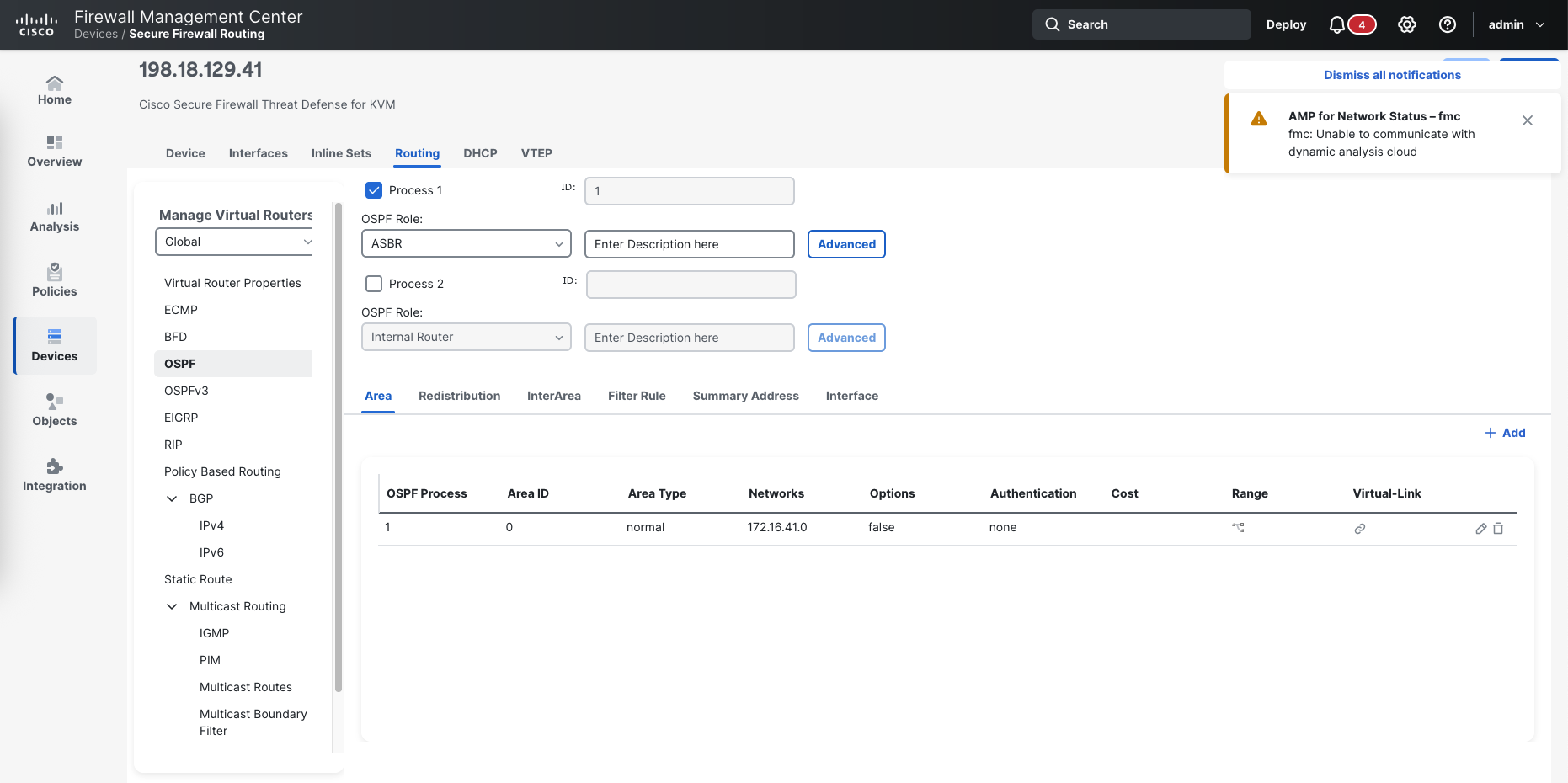

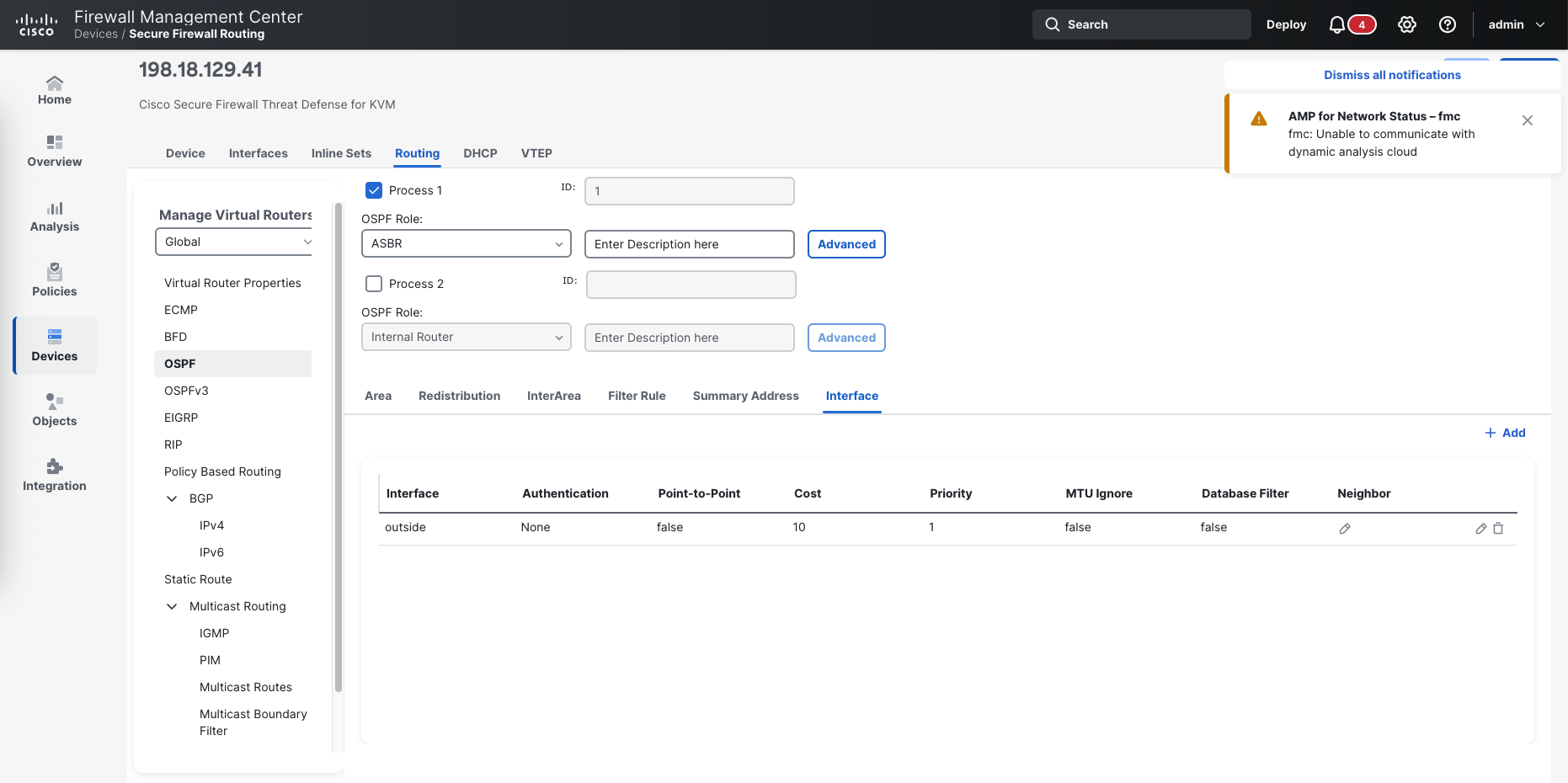

Here we need to change the OSPF role from Internal Router to ASBR to enable route redistribution, then delete the network from the OSPF process

We also remove the inside interface

Then on Redistribution, we add one with connected route type

Cisco ASA

Here’s the configuration on ASA side

router ospf 1
 router-id 172.16.51.2
 network 172.16.51.0 255.255.255.0 area 0
 redistribute connected subnets
